Ghibson has more than 40 years of valve manufacturing experience and is located in Bologna, Italy.
Ghibson takes pride in its manufacturing experience and is first of all made of people, working in synergy: this is the key to their success and the testimony of the quality of products.
Ghibson joins Bonomi
As of 2021 Ghibson valves is now part of the Bonomi Family. For both companies, it’s an opportunity to combine expertise, resources, and innovation to bring even more competitive, quality-driven solutions to the market.
From $71.25$95.00Regular price-25% offPrice
The Ghibson N500S Manually Operated Wafer Butterfly Valve NSF/ANSI 61/372 Certified for drinking water with EPDM seats, valve body is Epoxy Coated, cast Iron body (EN-GJS 400 15). Stainless steel disc CF8M, the series offer an ISO 5211 stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation...
From $71.25$95.00Regular price-25% offPrice
From $114.70$155.00Regular price-26% offPrice
The Ghibson 530S Manually Operated Wafer Style body Butterfly Valve FKM seats, the valve body is cast Iron body (EN-GJS 400 15) Epoxy Coated. Stainless steel disc, the series offer an ISO 5211 stem design direct mounting for high cycle automation capabilities.
Available in sizes from 2" to 20".
From $114.70$155.00Regular price-26% offPrice
From $73.26$99.00Regular price-26% offPrice
The Ghibson 540S Butterfly Valve Wafer Body, Manually Operated features NBR seats, the valve body is cast Iron body (EN-GJS 400 15) Epoxy Coated. Stainless steel disc, the series offer an ISO 5211 dual design direct mounting for high cycle automation capabilities.
Available in sizes from 2" to 20".
From $73.26$99.00Regular price-26% offPrice
From $129.60$180.00Regular price-28% offPrice
The Ghibson 531S Lever Operated Lug Butterfly Valve FKM seats and and Epoxy Coated cast Ductile Iron body CF8M SS disc. ISO 5211 Direct Mount Pad square stem.
Available in sizes from 2" to 20".
From $129.60$180.00Regular price-28% offPrice
From $81.40$110.00Regular price-26% offPrice
The Ghibson 541S Lever Operated Lug Butterfly Valve series with NBR seats and Epoxy Coated cast Ductile Iron body CF8M Stainless Steel disc. ISO 5211 Direct Mount Pad square stem.
Available in sizes from 2" to 20".
From $81.40$110.00Regular price-26% offPrice
From $207.20$280.00Regular price-26% offPrice
The Ghibson GN500S Gear Operated Wafer Style Butterfly Valve NSF Certified with Food grade EPDM resilient seat -30°F to 250°F with Epoxy Coated cast Iron body CF8M SS disc, Full Port.
Available in sizes from 1 1/2" to 24".
From $207.20$280.00Regular price-26% offPrice
From $259.00$350.00Regular price-26% offPrice
The Ghibson G530S Gear Operated Wafer Style Butterfly Valve FKM seats and Epoxy Coated cast Iron body, CF8M Stainless Steel disc with no pins in disc prevents potential leak points, Full Port.
Available in sizes from 2" to 20".
From $259.00$350.00Regular price-26% offPrice
From $214.60$290.00Regular price-26% offPrice
The Ghibson G540S Gear Operated Wafer Style Butterfly Valve NBR (Buna) seats and Epoxy Coated cast Iron body CF8M Stainless Steel disc with no pins in disc prevent potential leak points, Full Port.
Available in sizes from 2" to 20".
From $214.60$290.00Regular price-26% offPrice
From $221.26$299.00Regular price-26% offPrice
The Ghibson GN501S Gear Operated Lug Butterfly Valve NSF Certified for drinking water service with Food grade EPDM resilient seats and Epoxy Coated ductile Iron body CF8M SS disc with no pins in disc prevent potential leak points, Full Port, API609 face to face flange.
Available in...
From $221.26$299.00Regular price-26% offPrice
From $277.50$370.00Regular price-25% offPrice
The Ghibson G531S Gear Operated Lug Style Butterfly Valve Viton (FKM) seat, with Epoxy Coated ductile Iron body CF8M SS disc with no pins in disc prevent potential leak points, Full Port, API609 face to face flange.
Available in sizes from 2" to 20".
From $277.50$370.00Regular price-25% offPrice
From $370.00$500.00Regular price-26% offPrice
The Bonomi Ghibson 8100 High Performance Wafer Style Butterfly Valve ANSI class 150, Carbon Steel, replaceable seat design. and A351 ASTM discs, RTFE seats , Multiple V-ring stem packing, compact design with easy access to packing, ISO 5211 direct mounting pad square stem, reliable and consistent torques,...
From $370.00$500.00Regular price-26% offPrice
From $452.60$620.00Regular price-27% offPrice
The Bonomi 9100 High Performance Wafer Style Butterfly Valve ANSI class 150, Stainless Steel, replaceable seat design. and A351 ASTM discs, RTFE seats , Multiple V-ring stem packing, compact design with easy access to packing.
ISO 5211 direct mounting pad square stem, reliable and consistent torques,...
From $452.60$620.00Regular price-27% offPrice
From $693.50$950.00Regular price-27% offPrice
The Bonomi G9100 Gear Operated High Performance Wafer Style Butterfly Valve, with A351 Gr. CF8M bodies and discs Stainless Steel , ANSI 150, ISO 5211 Direct mounting pad square stem, RPTFE seats.
The stem is made from A182 Gr. F316 stainless for extreme hardness, disc support, and is blowout...
From $693.50$950.00Regular price-27% offPrice
From $669.60$930.00Regular price-28% offPrice
The Ghibson 550P Wafer Style Butterfly Valve features PTFE FDA approved Epoxy coated ductile iron (EN-GJS 400-15), Stainless Steel disc, PTFE seat -70°F to +392°F, Floating dual shaft disc design, 250 PSI rating (2" to 8") 150 PSI (10"-12"). Also features no pins in disc prevent potential leak points.
Available in...
From $669.60$930.00Regular price-28% offPrice
From $407.93$555.00Regular price-26.5% offPrice

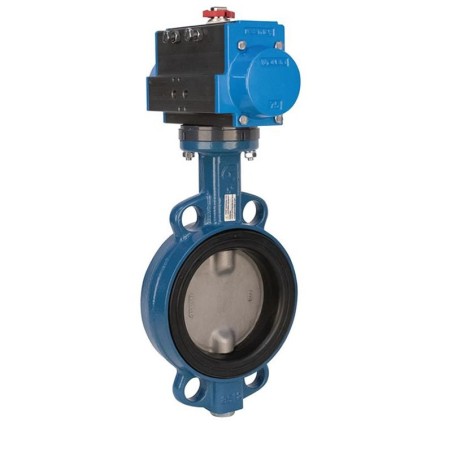

The Bonomi SRN500S package includes the Ghibson N500S Wafer Butterfly Valve NSF/ANSI 61/372 Certified for drinking water with EPDM seats, valve body is Epoxy Coated, cast Iron body (EN-GJS 400 15). Stainless steel disc CF8M, the series offer an ISO 5211 stem design and ISO...
From $407.93$555.00Regular price-26.5% offPrice
From $396.00$550.00Regular price-28% offPrice
The Bonomi Ghibson 8101 High Performance Lug Style Butterfly Valve ANSI class 150 with Carbon Steel body . Manually operated ISO 5211 direct mounting pad square stem. The seat is RTFE for higher temperature and pressure performance and consistency. The maximum working pressure is...
From $396.00$550.00Regular price-28% offPrice
From $666.00$900.00Regular price-26% offPrice

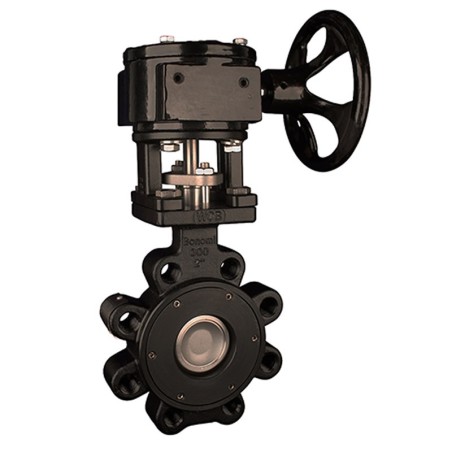

The Bonomi G8101 High Performance Lug Style Butterfly Valve ANSI class 150, Gear Operated , with with Carbon Steel body , ISO 5211 direct mounting pad square stem. The stem is made from A182 Gr. F316 stainless for extreme hardness, disc support, and is blowout proof.
The seat is made from carbon...
From $666.00$900.00Regular price-26% offPrice
From $496.40$680.00Regular price-27% offPrice

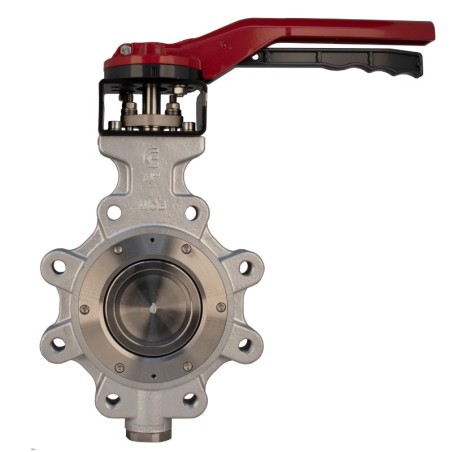

The Bonomi Ghibson 9101 High Performance Lug Style Butterfly Valve ANSI class 150 with Stainless Steel body . Manually operated ISO 5211 direct mounting pad square stem. The seat is RTFE for higher temperature and pressure performance and consistency.
The maximum working pressure is...
From $496.40$680.00Regular price-27% offPrice
From $725.20$980.00Regular price-26% offPrice
The Bonomi Ghibson G9101 double offset design High Performance Gear Operated Wafer Style Butterfly Valve ANSI class 150 , with Stainless Steel body , Stainless Steel disc CF8M, PTFE seats , ISO 5211 direct mounting pad square stem. The stem is...
From $725.20$980.00Regular price-26% offPrice
From $77.70$105.00Regular price-26% offPrice
The Ghibson N501S Manually Operated Lug Butterfly Valve NSF/ANSI 61/372 Certified for drinking water with EPDM seats, valve body is Epoxy Coated, cast Iron body (CI A126). Stainless steel disc CF8M, the series offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation...
From $77.70$105.00Regular price-26% offPrice
