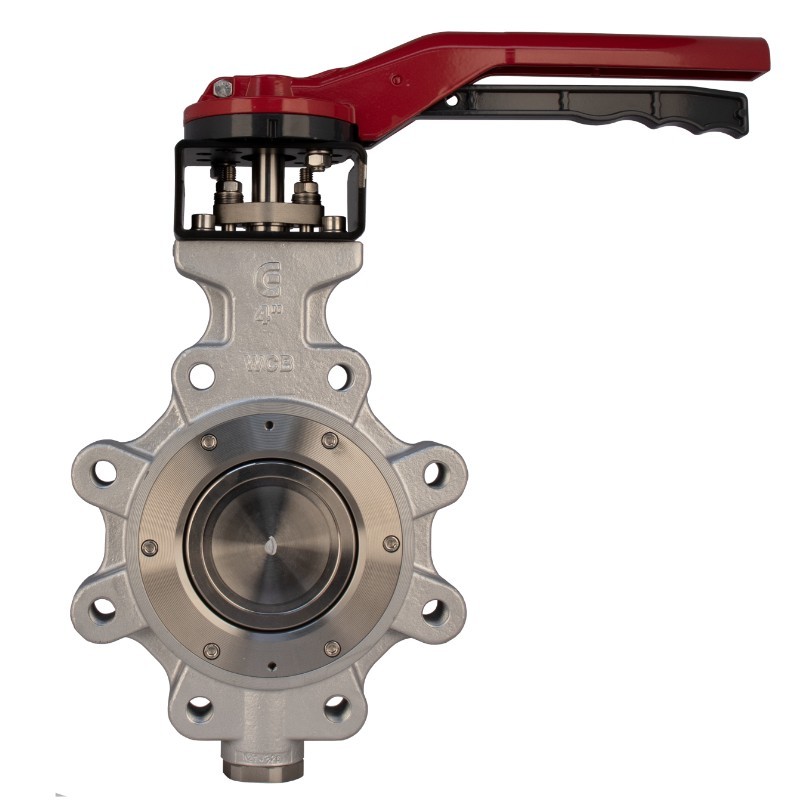

      Ghibson 9101 Lug Style Body High Performance Butterfly valve

      The Bonomi Ghibson 9101 High Performance Lug Style Butterfly Valve ANSI class 150 with Stainless Steel body.  Manually operated ISO 5211 direct mounting pad square stem. The seat is RTFE for higher temperature and pressure performance and consistency.

      The maximum working pressure is 365 psi and features a replaceable seat design, multiple V-ring stem packing with reliable and consistent torques.

      Available in sizes from 2" to 16.

      Ghibson Valves
      $496.40
      $680.00
      Save 27%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/11/26 - 6/17/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/11/26 - 6/17/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Bonomi 9101 High Performance Lug Style Butterfly valve Stainless Steel, RTFE seats manually operated ANSI 150 class features:

        • Temperature Range (-76°F to 446°F) (°C-60 to 230)
        • ISO 5211 Direct mounting pad/square stem
        • Compact design, easy access to packing
        • Replaceable seat design
        • Multiple V-ring stem packing
        • RTFE seats, metal seats upon request
        • 10 Position locking handle

        Models Variations in the same Family

        Model 8101-9101 8121-9121 8141-9141 G8101-G9101
        Variation Carbon and S-Steel RTFE Metal Seated version API607 Fire Safe Version Gear Operated Version
        Sizes 2" to 12" 2" to 12" 2" to 12" 2" to 12"
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" * 12" * 14" * 16" *
        Yoke ISO F05/F07 F05/F07 F05/F07 F05/F07 F05/F07 F07/F10 F07/F10 F012/F14 F012/F14 F14 F16
        Break Torque 40 48 54 62 105 170 326 520 1085 1190 1750
        Weight (in lbs.) 17 18.60 19.90 22.30 26.9 28.7 57.8 70.90 104.60 291 375.1

        * Bare Stem only

        Detailed Valve Specifications

        Please refer to the image below for specification. Click on the image to expand

        Bonomi 8101 and 9101 Valve Specification

        Ghibson 9101
        Ghibson 8101 9101

      • Ghibson Valves
        9101

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16"
        Valve Temperature Range
        -76° to 446° F (°C-60 to 230)
        Valve Body Material
        Stainless Steel
        Valve Body Style
        Lug Style
        Valve Disc Material
        Stainless Steel
        Valve Connection
        Class 150 Lug
        Valve PSI
        365
        Valve Configuration
        2-Way
        Valve Operation
        Lever Operated
        Valve Seat
        RTFE
