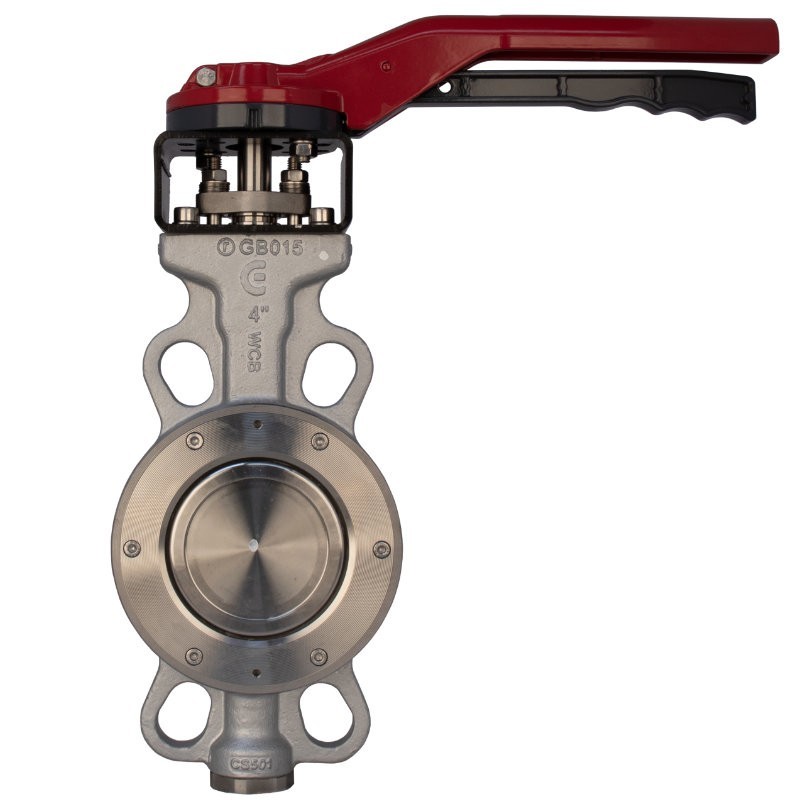

Ghibson 9100 High Performance Butterfly valve Stainless Steel ANSI 150 Wafer style iso 5211 mounting RTFE Seats
9100
      Ghibson 9100 High Performance Butterfly valve Stainless Steel ANSI 150 Wafer style iso 5211 mounting RTFE Seats
      Ghibson 9100 High Performance Butterfly valve Stainless Steel ANSI 150 Wafer style iso 5211 mounting RTFE Seats
      Ghibson 9100 High Performance Manually Operated Wafer Butterfly Valve

      The Bonomi 9100 High Performance Wafer Style Butterfly Valve ANSI class 150, Stainless Steel, replaceable seat design. and A351 ASTM discs, RTFE seats, Multiple V-ring stem packing, compact design with easy access to packing.

      ISO 5211 direct mounting pad square stem, reliable and consistent torques, and 10 Position locking handle.

      Available in sizes from 2" to 16".

      Ghibson Valves
      $452.60
      $620.00
      Save 27%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/11/26 - 6/17/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/11/26 - 6/17/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Bonomi 9100 Stainless Steel RPTFE seats Stainless Steel disc manually operated ANSI 150 class Wafer Style Butterfly valve Full Port features:

        The seat is made from carbon graphite filled PTFE for higher temperature and pressure performance and consistency.

        • Temperature Range (-76°F to 446°F) (°C-60 to 230), 150 WSP
        • ISO 5211 Direct mounting pad/square stem
        • Compact design, easy access to packing
        • Valve PSI max. 365.
        • Replaceable seat design
        • Multiple V-ring stem packing
        • RTFE seats, metal seats upon request
        • CRNs available upon request
        • 10 Position locking handle
        • Soft Seat leakage protection Class VI
        • Metal Seat leakage protection Class V

        Models Variations in the same Family

        Model 8100-9100 8120-9120 8140-9140 G8100-G9100
        Variation Carbon filled PTFE Metal Seated version API607 Fire Safe Version Gear Operated Version
        Sizes 2" to 16" 2" to 16" 2" to 16" 2" to 16"
        Summary Specifications (Please see attachment for full specs.)
        Size 2" 2 1/2" 3" 4" 5" 6" 8" 10" * 12" * 14" * 16" *
        Yoke ISO F05/F07 F05/F07 F05/F07 F05/F07 F05/F07 F07/F10 F07/F10 F012/F14 F012/F14 F14 F16
        Break Torque (lbf-in) 40 48 54 62 105 170 326 520 1085 1190 1750
        Weight (in lbs.) 10.40 11.30 12.40 21.8 26 33.30 44.40 64.9 94 231.5 284.4

        * Bare Stem only or Gear Operated

        Detailed Valve Specifications

        Please refer to the image below for specification. Click on the image to expand

        Bonomi 8100-9100 Valve Specification

        Ghibson 8100 9100 Spec Sheet
        Ghibson 8100 9100

      • Ghibson Valves
        9100

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16"
        Valve Temperature Range
        -76° to 446° F (°C-60 to 230)
        Valve Body Material
        Stainless Steel
        Valve Disc Material
        Stainless Steel
        Valve Connection
        Class 150 Wafer Style Flanged
        Valve PSI
        365
        Valve Configuration
        2-Way
        Valve Operation
        Lever Operated
        Valve Seat
        RPTFE
