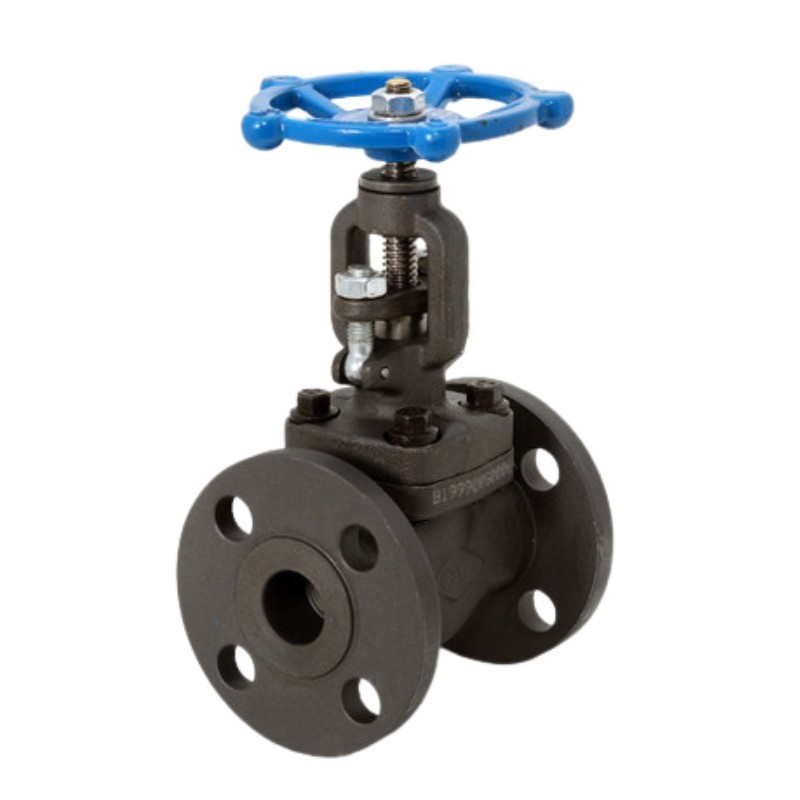

Chicago Valves 384 series Globe valve forged steel Class 300 Flanged , 1/2"- 1 1/2"
384F3
The Chicago Valves Series 384 is a severe-service Class 300 forged steel globe valve featuring a bolted bonnet and rising stem, designed for high-pressure and high-temperature throttling applications.
Built to API 602 and ASME B16.34 standards, it is constructed from durable ASTM A105N forged steel and is compliant with NACE MR0175 for sour gas service. Features high-performance graphite packing, solid CA-15 disc, 13% Cr seat, and Class 300 flanged Raised Face (RF) ends to ASME B16.5, fully tested to API 598 standards. Also available with Class 150 flanged Raised Face (RF) ends.
Available in sizes from 1/2" to 1-1/2".
$101.87
$161.70
Save 37%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 384F is a compact, severe-service Class 300 forged steel globe valve. Conforming to API 602 and ASME B16.34, this valve is designed for demanding high-pressure commercial and industrial throttling services where dependable shutoff, extreme structural strength, and long service life are required. The bolted bonnet and rising stem design ensure robust sealing and visible valve position indication during operation.
The Series 384 is available from 1/2" to 1-1/2" with Class 300 flanged Raised Face (RF) ends and conforms to NACE MR0175 for sour service.
General Valve Specification
- Valve Type: Forged Steel Globe Valve
- Pressure Class: Class 300
- Pressure Rating: 740 PSI (Forged Steel)
- Maximum Temperature: 800°F / 427°C (Forged Steel)
- Body Material: Forged Steel (ASTM A105N)
- Bonnet Material: Forged Steel (ASTM A105N)
- Stem Material: 13% Cr (ASTM A182 Gr. F6a Cl.2)
- Disc Material: 13% Cr (ASTM A217 Gr. CA-15)
- Gasket Material: 316 Stainless Steel + Graphite spiral-wound
- Packing Material: Graphite
- Bonnet Bolts: Alloy Steel (ASTM A193 Gr. B7M)
- Handwheel Material: MI / Sgiron
- Operation: Manual (Handwheel)
- Body Style: Inline, Forged Steel, Bolted Bonnet (BB)
- Stem Design: Rising Stem (OS&Y)
- Flow Function: Throttle / Flow Regulation
- End Connections: Class 300 Flanged Raised Face (RF) (ASME B16.5)
- Optional End Connections: Class 150 Flanged Raised Face (RF) (ASME B16.5)
- Country of Origin: Vietnam
Standards and Compliance
- Design: API 602 / ISO 15761, ASME B16.34
- Testing: API 598 (Shell & Leak testing)
- Face-to-Face Dimensions: ASME B16.10
- Flange Standard: ASME B16.5
- Compliance: NACE MR0175 (Sour Gas Service)
Summary Specifications of Chicago Valves Series 384 Class 300
Size Part Number CV Weight (lbs) 1/2" 384F3005 2.2 8.00 3/4" 384F3006 2.3 11 1" 384F3010 6.0 16.5 1 1/4" 384F3012 13 25.5 1 1/2" 384F3015 15.25 31 - 384F3
Data sheet
- Valve Type
- Globe valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4")
- Valve Temperature Range
- 800°F max (°C 427)
- Valve Body Material
- Forged Steel A105N
- Valve Body Style
- Inline
- Valve Connection
- Class 300 Flanged
- Valve PSI
- 740
- Valve Configuration
- 2-Way
- Valve Seat
- Metal to Metal
- Warranty
- 1 year
- Valve Standards
- API 598 API 602 ASME B16.5 ASME B16.10 NACE MR0175
The Chicago Valves Series 384 is a severe-service Class 300 forged steel globe valve featuring a bolted bonnet and rising stem, designed for high-pressure and high-temperature throttling applications.
Built to API 602 and ASME B16.34 standards, it is constructed from durable ASTM A105N forged steel and is compliant with NACE MR0175 for sour gas service. Features high-performance graphite packing, solid CA-15 disc, 13% Cr seat, and Class 300 flanged Raised Face (RF) ends to ASME B16.5, fully tested to API 598 standards. Also available with Class 150 flanged Raised Face (RF) ends.
Available in sizes from 1/2" to 1-1/2".
