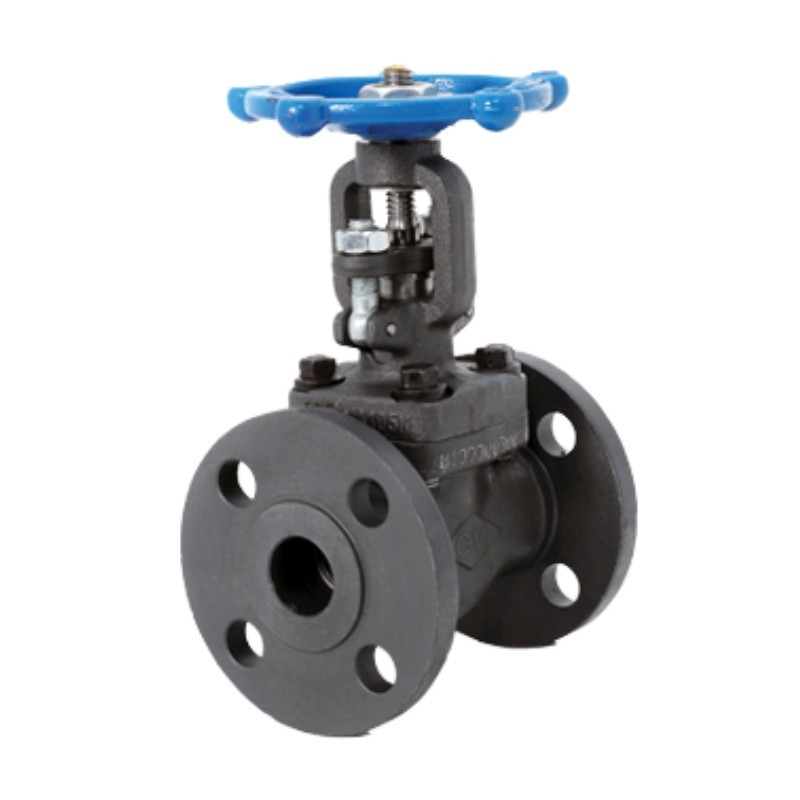

Chicago Valves Series 28F Forged Steel Class 300 Flanged Gate Valve (1/2" - 1 1/2")
284F3
The Chicago Valves Series 284F is a class 300 flanged forged steel gate valve engineered for reliable shutoff service in industrial piping systems. Manufactured from ASTM A105N normalized forged steel, the Series 28F features a multi-turn OS&Y (Outside Screw & Yoke) rising stem design that provides positive visual indication of valve position while supporting long-term serviceability and maintenance access.
Raised face flanged connections allow integration into Class 300 piping systems, with pressure ratings up to 740 PSI at 100°F (38°C) and operating temperatures ranging from -20°F to 1000°F depending on service conditions and ASME pressure-temperature ratings.
The Chicago Series 28F4 is also available in flanged Class 150 and 600 pressure classes.
Available in sizes from 1/2" to 1 1/2".
$131.21
$184.80
Save 29%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 28F4 Class 300 forged steel flanged gate valve, Outside Screw & Yoke specifications:
General Valve Specification
- Body: Forged Steel ASTM A105N
- Stem Material: ASTM A182 Grade F6a Class 2 stainless steel
- Design Type: OS&Y (Outside Screw & Yoke)
- Operation: Multi-turn manual operation
- Service Type: Isolation / Shutoff Service
- Pressure Rating: 740 PSI at 100°F (38°C) for Class 300 service, subject to ASME pressure-temperature derating
- Maximum Temperature: 1000°F (538°C)
- Stem Type: Rising stem
- Wedge Type: Solid wedge disc
- Flange Standard: ASME B16.5
- Pressure Class: Class 300
- Also Available: Class 150 and Class 600
- End connections: ANSI raised face flanged (RF)
- Country of Origin: Cambodia.
Standards
- API 598, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175
Options
- Also available in Class 300 and 600
Summary Specifications of Chicago Valves Series 28F Class 300
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" CV 4.5 11 54 54 79 Weight (lbs) 7.5 10.5 15 16 27.5 - 284F3
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4")
- Valve Temperature Range
- -50° to 600°F (°C -46 to 316)
- Valve Body Material
- Forged Steel A105N
- Valve Body Style
- Full Port
- Valve Connection
- Class 300 Flanged
- Valve PSI
- 740
- Valve Configuration
- 2-Way
- Valve Seat
- Metal on Metal
- Warranty
- 1 year
- Valve Standards
- API 598 ASME B16.5 ASME B16.10 ASME B16.34 NACE MR0175
The Chicago Valves Series 284F is a class 300 flanged forged steel gate valve engineered for reliable shutoff service in industrial piping systems. Manufactured from ASTM A105N normalized forged steel, the Series 28F features a multi-turn OS&Y (Outside Screw & Yoke) rising stem design that provides positive visual indication of valve position while supporting long-term serviceability and maintenance access.
Raised face flanged connections allow integration into Class 300 piping systems, with pressure ratings up to 740 PSI at 100°F (38°C) and operating temperatures ranging from -20°F to 1000°F depending on service conditions and ASME pressure-temperature ratings.
The Chicago Series 28F4 is also available in flanged Class 150 and 600 pressure classes.
Available in sizes from 1/2" to 1 1/2".
