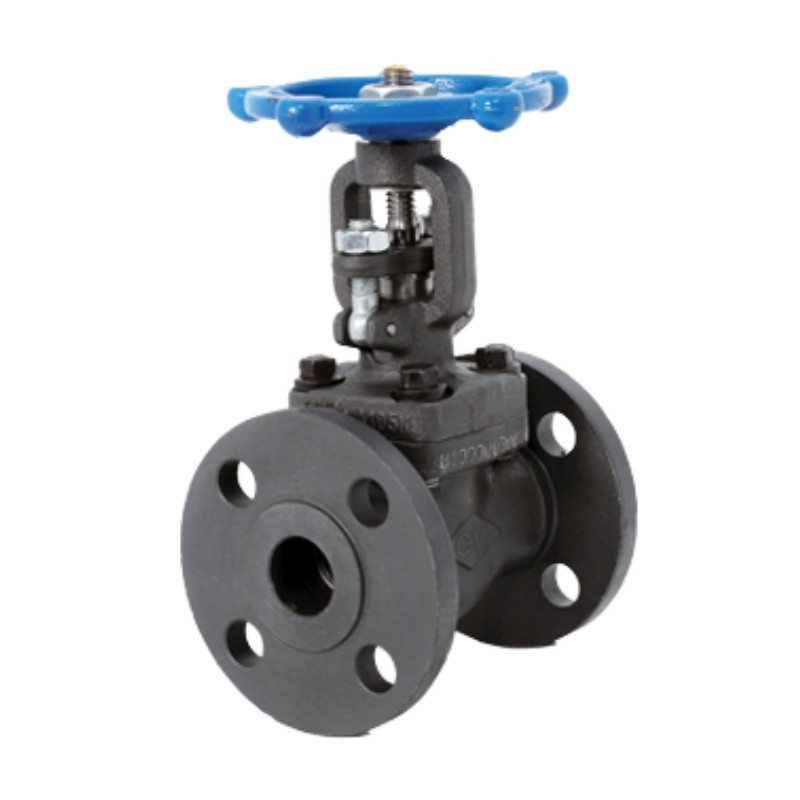

Chicago Valves Series 28F Forged Steel Class 150 Flanged Gate Valve (1/2" - 1 1/2")
284F1
The Chicago Valves Series 284F is an Class 150 forged steel flanged gate valve engineered for reliable shutoff service in industrial piping systems. Manufactured from ASTM A105N normalized forged steel, the Series 28F features a multi-turn OS&Y (Outside Screw & Yoke) rising stem design that provides positive visual indication of valve position while supporting long-term serviceability and maintenance access.
Raised face flanged connections allow integration into class 150 piping systems, with pressure ratings up to 285 PSI at 100°F and operating temperatures ranging from -20°F to 1000°F depending on service conditions and ASME pressure-temperature ratings.
The Chicago Series 28F is also available in flanged Class 300 and 600 pressure classes.
Available in sizes from 1/2" to 1 1/2".
$99.00
$137.50
Save 28%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 284F Flanged Class 150 forged steel flanged gate valve, Outside Screw & Yoke specifications:
General Valve Specification
- Body: Forged Steel ASTM A105N
- Stem Material: ASTM A182 Grade F6a Class 2 stainless steel
- Design Type: OS&Y (Outside Screw & Yoke)
- Operation: Multi-turn manual operation
- Flow Function: Bi-directional shutoff / isolation service
- Port Style: Full flow gate design
- Pressure Rating: 285 PSI at 100°F Class 150 Subject to ASME pressure-temperature derating
- Temperature Range: -20°F to 1000°F (-29°C to 538°C)
- Stem Type: Rising stem
- Wedge Type: Solid wedge disc
- Service Type: Bi-directional isolation/shutoff service
- Class 150 Flanged, also available in ANSI 300, ANSI 600
- End connections: ANSI raised face flanged (RF)
- ASME B16.5 flange compatibility
- Country of Origin: Cambodia.
Standards
- API 598, API 603, ASME B16.34, B16.10, B16.5, NACE MR0175
Options
- Also available in flanged class 300 and 600
Summary Specifications of Chicago Valves Series 28F Class 150
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" CV 4.5 11 54 54 79 Weight (lbs) 6 7.50 11.25 11.50 21.25 - 284F1
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4")
- Valve Temperature Range
- -50° to 600°F (°C -46 to 316)
- Valve Body Material
- Forged Steel A105N
- Valve Body Style
- Full Port
- Valve Connection
- Class 150 Flanged
- Valve PSI
- 285
- Valve Configuration
- 2-Way
- Valve Seat
- Metal on Metal
- Warranty
- 1 year
- Valve Standards
- API 598 ASME B16.5 ASME B16.10 ASME B16.34
The Chicago Valves Series 284F is an Class 150 forged steel flanged gate valve engineered for reliable shutoff service in industrial piping systems. Manufactured from ASTM A105N normalized forged steel, the Series 28F features a multi-turn OS&Y (Outside Screw & Yoke) rising stem design that provides positive visual indication of valve position while supporting long-term serviceability and maintenance access.
Raised face flanged connections allow integration into class 150 piping systems, with pressure ratings up to 285 PSI at 100°F and operating temperatures ranging from -20°F to 1000°F depending on service conditions and ASME pressure-temperature ratings.
The Chicago Series 28F is also available in flanged Class 300 and 600 pressure classes.
Available in sizes from 1/2" to 1 1/2".
