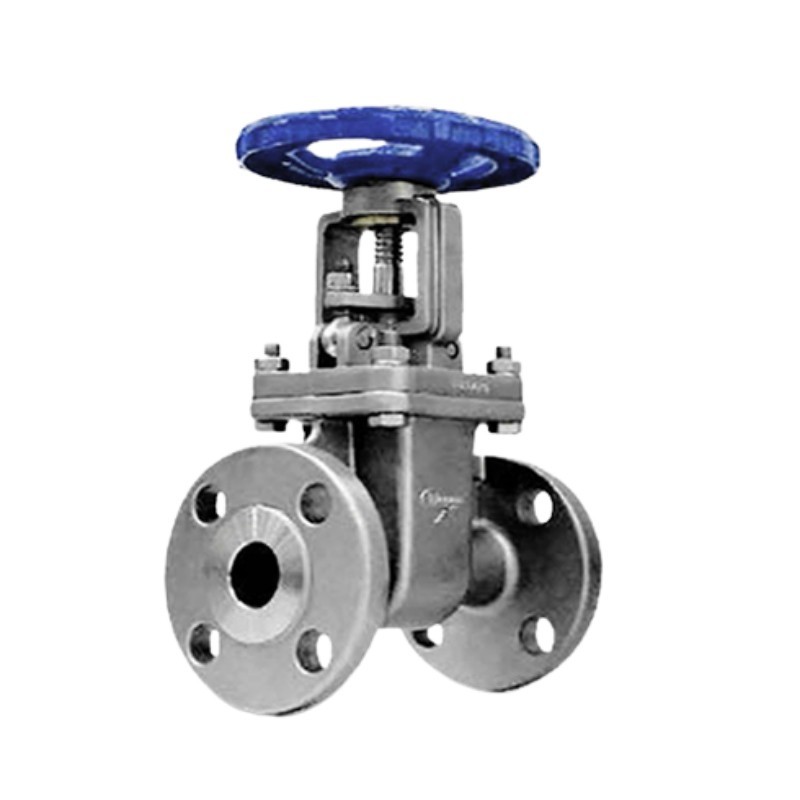

Chicago Valves Series 216 Heavy Duty 316SS Class 300 Flanged Gate Valve (1/2" - 6")
21631
The Chicago Valves Series 216 is a heavy-duty flanged Class 300 gate valve designed for reliable flow isolation in demanding industrial applications. Constructed from CF8M/316 stainless steel, it offers excellent corrosion resistance, high-temperature capability, and dependable shutoff performance. Available with Class 300 flanged and Class 300 BW (butt weld) connections
Designed for high-pressure and high-temperature service, the Series 216 complies with API 603 and ASME standards, with seat and shell testing to API 598. The valve features an OS&Y rising stem design for visual position indication and easier maintenance, along with a durable bolted bonnet construction.
Rated to approximately up to 720 PSI at 100°F and temperatures up to 1000°F. Also available in class 150 with pressure ratings at 285 PSI.
Available in sizes from 1/2" to 6".
$739.30
$1,071.45
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 216 High pressure Stainless Steel 316 Gate valve Class 300 Flanged, Outside Screw & Yoke specifications:
General Valve Specification
- Body: 316 STAINLESS STEEL - ASTM A351
- End Cap Material: ASTM A351 CF8M stainless steel
- Design Type: OS&Y (Outside Screw & Yoke)
- Operation: Multi-turn manual operation
- Flow Function: Isolation / On-Off service
- Port Style: Full flow gate configuration
- Stem Type: Rising stem
- Wedge Type: Solid wedge design
- Service Type: Bidirectional shutoff
- Class 300 Flanged, Class 300 Butt Weld (BW) option available
- ASME B16.5 flange compatibility
- Made in Thailand, assembled and tested in USA.
Design Standards
- API 598, API 603, ASME B16.34, B16.10, B16.5, B16.25
Options
- Graphite Stem Packing & Bonnet Seal: Improved high-temperature sealing, Better steam performance.
- Gear Operator: Recommended for larger valve sizes, Reduced operating torque and Improved manual control
- Available in Class 300 Flanged or Butt weld
- Available in Class 150 Flanged or Butt weld
Summary Specifications of Chicago Valves Series 216 Class 300
Size 1/2" 3/4" 1" 1 1/2" 2" 2 1/2" 3" 4" 6" CV (GPM) 26 50 80 300 360 630 1150 2150 4150 Weight (lbs) 11.86 13.78 15.43 35.05 45.99 55.89 84.97 142.31 253.53 - 21631
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 2" 2.5 (2 1/2") 3" 4" 6"
- Valve Temperature Range
- -50° to 600°F (°C -46 to 316)
- Valve Body Material
- Stainless Steel ASTM 316
- Valve Body Style
- Full Port
- Valve Connection
- Class 300 Flanged
- Valve PSI
- 720
- Valve Configuration
- 2-Way
- Valve Seat
- Metal on Metal
- Warranty
- 1 year
- Valve Standards
- API 598 API 603 ASME B16.5 ASME B16.10 ASME B16.34 MSS SP-55
The Chicago Valves Series 216 is a heavy-duty flanged Class 300 gate valve designed for reliable flow isolation in demanding industrial applications. Constructed from CF8M/316 stainless steel, it offers excellent corrosion resistance, high-temperature capability, and dependable shutoff performance. Available with Class 300 flanged and Class 300 BW (butt weld) connections
Designed for high-pressure and high-temperature service, the Series 216 complies with API 603 and ASME standards, with seat and shell testing to API 598. The valve features an OS&Y rising stem design for visual position indication and easier maintenance, along with a durable bolted bonnet construction.
Rated to approximately up to 720 PSI at 100°F and temperatures up to 1000°F. Also available in class 150 with pressure ratings at 285 PSI.
Available in sizes from 1/2" to 6".
