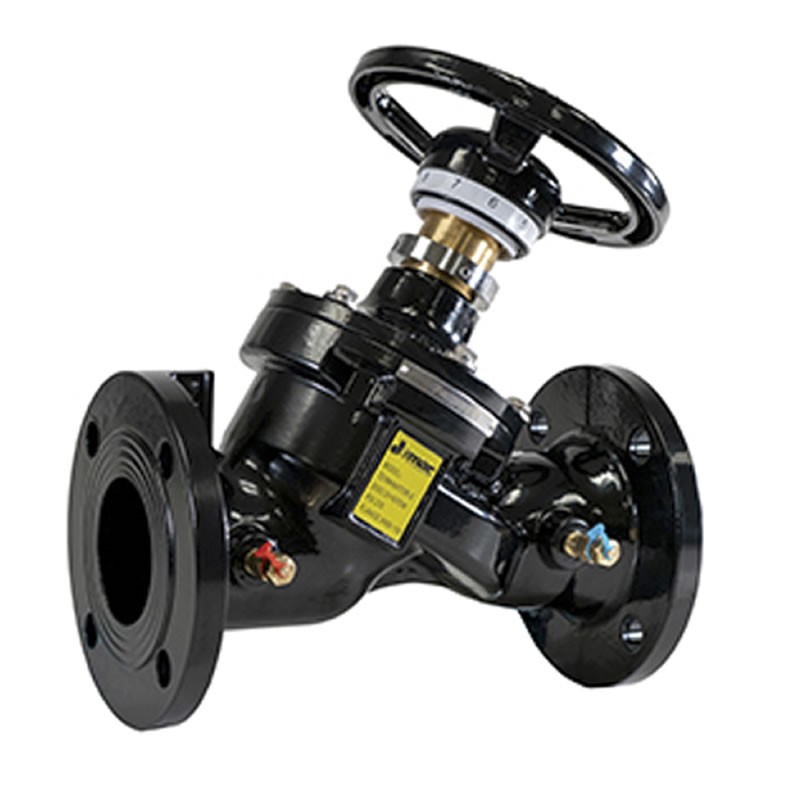

      Jomar Terminator TG-Flanged Manual Balancing Multi-turn Globe Valve

      The Jomar Terminator TG-Flanged is a Manual Balancing, Multi-turn Globe Valve, Y-Pattern, Variable Orifice, with an ANSI class 150 Flanged Connection.  Features memory Stop handle settings, Epoxy Coated Body with PTFE / EPDM packing.  Pressure and Temperature ports on the body, temperature range is 15°F to 250°F (C° -9 to 121) and pressure is 230 WOG.

      Available in sizes from 2 1/2" to 12".

      Jomar Valve
      $588.22
      $919.10
      Save 36%
      Quantity :

      FREE Shipping Order before 11:00 on Friday and receive it between 6/10/26 and 6/12/26 with FREE Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE Shipping 3-5 days

      6/10/26 - 6/12/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Carrier: FREE Shipping

      Description: 3-5 days

      Estimated delivery:
      6/10/26 - 6/12/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar TG-Flanged Terminator valve ANSI class 150 Flange, features:

        • Memory Stop Handle Setting
        • Precise Flow Measurement and Flow Balancing
        • Pressure 230 WOG
        • Positive Shut-Off
        • ± 5% Flow Measurement Accuracy
        • Epoxy coated body
        • ANSI Class 150
        • Two Pressure Test Ports
        • Includes Pressure and Temperature Ports
        • Face-to-Face: DIN 3202-1/F1
        • EN-558-1 Series 1
        • Flange: ANSI B16.5
        • Conforms to BS 7350
        Summary Specifications (Please see attachment for full specs.)
        Size 2 1/2" 3" 4" 6" 8" 10" 12"
        Part number
        		 TG-GFF TG-HFF TG-IFF TG-KFF TG-LFF TG-MFF TG-NFF
        Weight 37 44 70 115 249 408 547
        Specs for Terminator TG-Flanged

        Please see image below for reference, click to enlarge

        Jomar Terminator G-Flange specs

        View Detailed Valve Specifications
        Jomar TG-Flanged Specs.
        Jomar Terminator TG-Flanged

      • Jomar Valve
        TG–FLANGED

        Data sheet

        Valve Type
        Manual Balancing
        Valve Size
        2.5 (2 1/2") 3" 4" 6" 8" 10" 12"
        Valve Temperature Range
        15°F to 250°F (°C -9 - 121)
        Valve Body Material
        Ductile Iron Expoxy coated
        Valve Body Style
        Full Port
        Valve Connection
        Class 150 Flanged
        Valve PSI
        230
        Valve Configuration
        1-Way
        Valve Operation
        Manual
        Valve Seat
        PTFE
