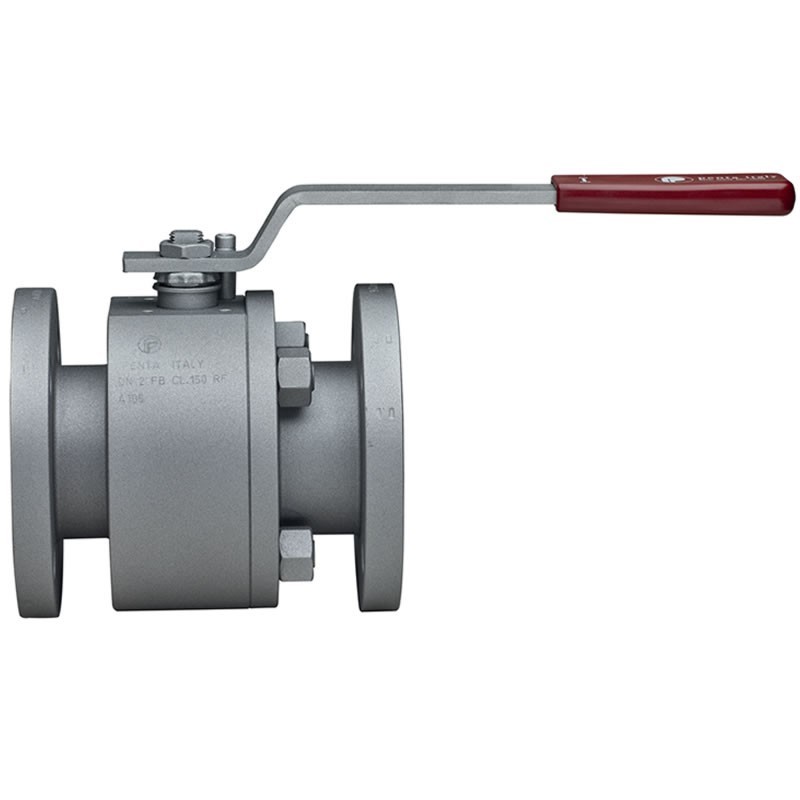

Bonomi Penta AP60CS Carbon Steel bi-directional Split Body Flanged Ball Valve ANSI 300 2 way High Temperature Metal seated
AP60CS
Review (0)
      Bonomi Penta AP60CS Carbon Steel bi-directional Split Body Flanged Ball Valve ANSI 300 2 way High Temperature Metal seated
      Bonomi Penta AP60CS Carbon Steel bi-directional Split Body Flanged Ball Valve ANSI 300 2 way High Temperature Metal seated
      Bonomi Penta AP60CS Carbon Steel bi-directional Flanged Ball Valve
      Move your mouse over image or click to enlarge

      The Bonomi Penta AP60CS is a bi-directional metal seated floating ball valve, carbon steel, Flanged ANSI 300. The metal seated floating ball valve is a 2 pieces bolted body from barstock, high temperature resistant from -20°F to +662°F (-28° to 350°C) with Blowout proof stem, API 598 inspection and testing, features an adjustable, live-loaded graphite packing.

      Available in sizes from 1/2" to 4".

      Penta
      $963.60
      $1,320.00
      Save 27%
      Typically ships within 3-5 bus. days (can be expedited)
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Bonomi Penta AP60CS Carbon Steel Bi-directional Metal seated floating flanged ball valve features:

        • 2-piece bolted body from barstock
        • Temperature range carbon steel valve -20°F to +662°F.
        • Temperature range stainless steel valve -40°F to +662°F.
        • Consult factory for temperatures between -50°F and 750°F.
        • Blow-out proof stem.
        • PENTAFITE standard ball seats, other metal seats on request.
        • For high temperature clean services.
        • Adjustable, live-loaded graphite packing.
        • 100 mm stem elongation on request.
        • API 598 inspection and testing.
        • API 607 fire tested.
        • Locking lever operator available on request.
        • NACE MR01-75 compliant materials.
        • Made in Italy.

        Also Available in Stainless Steel

        • AP60SS    Sizes 1/2" to 4"
        Summary Specifications for Bonomi Penta series AP60 (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
        ISO 5211 F03 F03 F03 F03 F05 F05 F07 F07 F10
        PENTAFITE Break Torque (in lbs.) 221 310 363 665 814 1157 2549 3009 4090
        Weight (in lbs.) 6.61 8.82 13.23 17.64 29.76 41.89 55.12 88.18 138.29

        Specifications: Please click on the image below to expand:

        Penta AP60CS and Penta AP60SS Specs

        AP60 Series Specifications
        AP60 Series
        Penta AP60 Series

      • Penta
        AP60CS

        Data sheet

        Valve Type
        Ball Valve Split Body
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3" 4"
        Valve Temperature Range
        -20° to 662°F (°C -29 to 350)
        Valve Body Material
        Carbon Steel
        Valve Connection
        ANSI 300 Flanged
        Valve Configuration
        2-Way
        Valve Operation
        Manual
        Valve Seat
        PENTAFITE/WC/ST6/ CRC/live loaded PEEK
