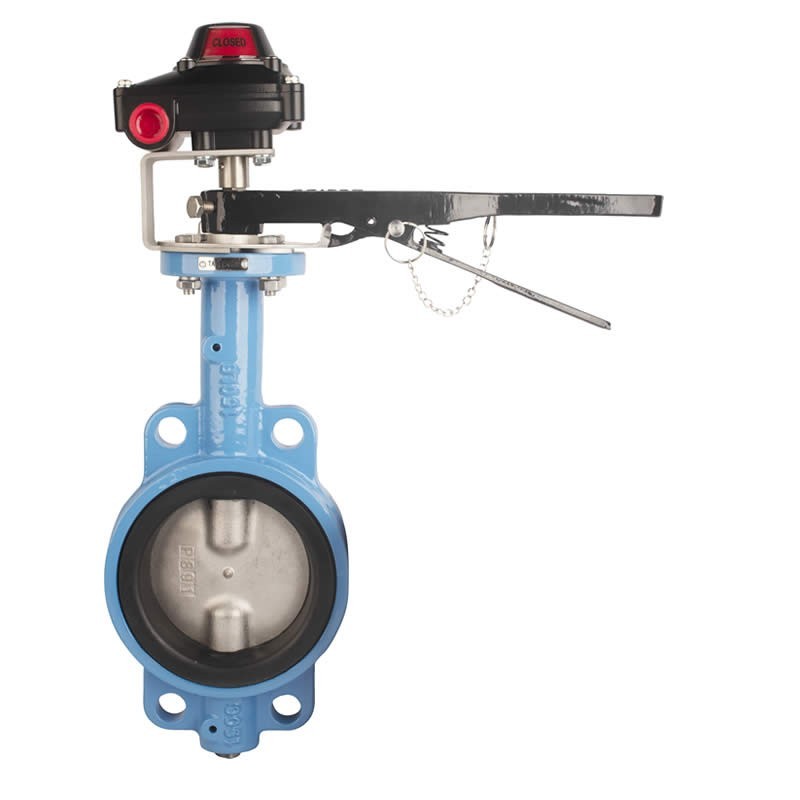

Bonomi N500S LS2 with Ghibson N500S Wafer Butterfly Valve S-Steel Food Grade NSF Certified for EPDM seats and LS2-B Limit Switch
N500S LS2
The Bonomi N500S LS2 package includes the Ghibson N500S Wafer Butterfly Valve NSF/ANSI 61/372 Certified for drinking water with EPDM seats, body is Epoxy Coated, cast Iron body (CI A126). Stainless steel disc CF8M, the series offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation capabilities. The N500S series features a phenolic-backed cartridge seat design which offers a 250 CWP maximum pressure rating, dead-end service to 100 PSI, and conforms to ANSI B16.1 and ANSI B16.5
It also includes the mounted Bonomi LS2-B IP67 Limit Switch Die Cast Aluminum body with O-ring sealed and IP67 Nema 4, 4X and CSA approved.
Available in sizes from 1 1/2" to 12".
$584.60
$790.00
Save 26%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Bonomi N500S LS2 package, includes 2 components: the Valve, and the mounted Limit Switch. Details of each are listed below:
Valve
The Ghibson N500S Wafer Flanged Butterfly valve, ACF8M SS disc, NSF Certified for EPDM seats, features:
- Epoxy coated cast iron wafer body
- Pressure rating: 250 psi water (40°F to 80°F) (°C-4 to 27)
- ISO 5211 Direct Mounting pad/square stem
- Food Grade EPDM resilient seat -30°F to 250°F (°C -34 to 121)
- API609 face to face flange
- Floating dual shaft disc design
- MSS SP 67 Compliant
- No pins in disc prevent potential leak points
- NSF certified for drinking water service (EPDM seats only
Models
- N500S EPDM seats, Sizes 1 1/2" to 12" )
- 530S VITON seats, Sizes 2" to 12" (offers greater chemical resistance and protection)
- 540S BUNA-N seats Sizes 2" to 12" (general-purpose oil-resistant polymer)
Size 1 1/2" 2" 2 1/2" 3" 4" 5" 6" 8" 10" 12" Package Weight (lbs.) 9.60 10.30 11.90 13.20 16.80 21.20 23.00 37.70 52.90 82.10 Detailed Valve Specifications
Please refer to the image below for specification. Click on the image to expand
Limit Switch LS2-B
The Bonomi LS2-B IP67 Limit Switch Features:
- Die-Cast aluminum body with O-ring sealed
- Sealed with Buna-N O-Ring
- Dichromate conversion with polyester powder coating
- Double cable entry with two 1/2" NPT
- Namur shaft ISO bracket
- IP67 Nema 4, 4X and CSA approved
- 2 SPDT 5A 125-250-VAC, 3A 24VDC
Detailed Limit Switch LS2-B Specifications
Please refer to the image below for specification. Click on the image to expand
Bonomi N500S W-LS2-B N500S-N500N-N501S-N501N W LS2-B- N500S LS2
Data sheet
- Valve Type
- Butterfly Valve
- Valve Size
- 1.5 (1 1/2") 2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12"
- Valve Temperature Range
- -30° to 250 (°C -34 to 121)
- Valve Body Material
- Ductile Iron
- Valve Body Style
- Wafer
- Valve Connection
- Class 150 Wafer Style Flanged
- Valve PSI
- 250
- Valve Configuration
- 2-Way
- Valve Certification
- NSF/ANSI 61 NSF/ANSI 372
- Valve Seat
- EPDM
The Bonomi N500S LS2 package includes the Ghibson N500S Wafer Butterfly Valve NSF/ANSI 61/372 Certified for drinking water with EPDM seats, body is Epoxy Coated, cast Iron body (CI A126). Stainless steel disc CF8M, the series offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation capabilities. The N500S series features a phenolic-backed cartridge seat design which offers a 250 CWP maximum pressure rating, dead-end service to 100 PSI, and conforms to ANSI B16.1 and ANSI B16.5
It also includes the mounted Bonomi LS2-B IP67 Limit Switch Die Cast Aluminum body with O-ring sealed and IP67 Nema 4, 4X and CSA approved.
Available in sizes from 1 1/2" to 12".
