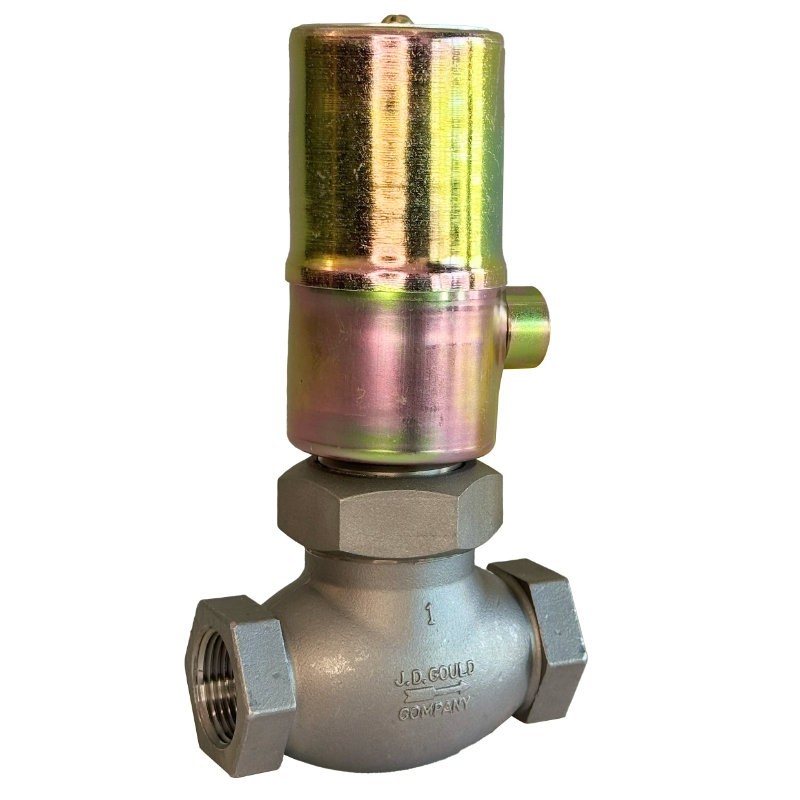

The Gould KR-3T solenoid Stainless Steel valve specifications:

General Specification

• General purpose Valve
• Internal Piston–Pilot Operated
• 2–Way, full ported
• Packless
• Stainless Steel CF8M Body
• Normally Open A minimum pressure drop of 5 or 10 psi (ΔP) is needed for proper operation
• UL listed
• Teflon seat
• Made in USA

Service Ratings

• Pipe Sizes: 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1¼”, 1½”, 2” NPT
• Media: Water and Aqueous Liquids, corrosive fluids, air and inert gases, Oils (440SSU or 30SAE)
• Pressure Range: 5–150 psi or 10-300 psi
• Rated Fluid Temperature Range: –40°F to +300°F
• Available Voltages: (AC) 24, 120, 240, 480 (50/60hz) or (DC) 12V, 24V, 48V, 115V, 230V 26 Watts Max
• Coil Specifications:

  • Class F & H Coils are watertight/corrosive resistant, (Max Temperature 300°F)
  • Continuous Duty Polyester, Thermoset Epoxy Molded with 18” Leads and ½” Conduit Connector

Valve construction

• Body: Investment Cast 316SS, rated to 1000 PSI
• Plunger tubes:  are Stainless Steel silver soldered to the Stainless Steel bonnet.
• Piston Assemblies: are Stainless Steel with filled Teflon™
• Piston rings: Stainless Steel
• Seat Discs:  Teflon™
• Pilot valves: 430 FR Stainless Steel
• Piston Springs: Stainless Steel
• 1/8”-1”: Globe style body with union bonnet
• 1-1/4” – 2”: Globe style body with bolt-down bonnet.

Options

• 76 - Spring-loaded pilot for vertical mounting (recommended only for valves up to 1" NPT)

Summary Specifications of Gould solenoid valve KR-3T

Please Note: Gould Solenoid Valves are designed for Industrial–Commercial applications. Residential/Consumer applications will void the warranty.

Summary Specifications of Gould K and KR series Stainless Steel solenoid valves

Mounting and Service

• Installation: Install in HORIZONTAL pipe with COIL ASSEMBLY on TOP AND VERTICAL with FLOW ARROW or IN AND OUT markings in the proper direction. ALL PIPING should be blown clear before installation, and a 40 mesh STRAINER should be installed ahead of the valve. STEAM LINES should be properly TRAPPED at the valve inlet. PIPE DOPE is NOT recommended, but if used, should not be applied to the VALVE BODY. Apply sparingly to the pipe threads only. J.D. Gould Company recommends Teflon™ tape for all connections. PIPING should be properly aligned and supported to avoid strain on the valve body. The VALVE BODY should not be held in a VISE except across the pipe ends. Use a PIPE VISE or WRENCH on the pipe and a WRENCH on the HEX PIPE ENDS. DO NOT use the COIL ASSEMBLY for a LEVER to tighten piping.

• Maintenance: Close the supply SHUT OFF VALVE and ENERGIZE the SOLENOID VALVE to de-pressurize the inlet supply line. DISCONNECT ELECTRICAL POWER before removing the COIL ASSEMBLY. The COIL will overheat and burn out if left ENERGIZED without the entire SOLENOID ASSEMBLY in place. Since OCCASIONAL INSPECTION AND CLEANING is desirable, be sure to add the valves to your scheduled maintenance program. Flowing media and cycle rate will determine the desired interval between inspections. Removing the BONNET exposes the internal parts of the valve. It is not necessary to remove the VALVE BODY from the line for inspection or repairs. Valve parts may be cleaned in commercial products such as Lime-Away® or CLR™ to remove mineral deposits. Be sure any cleaning solution is compatible with BOTH the metallic and non-metallic (seats & seals) components. Parts should be rinsed thoroughly in clean running water before re-assembly.
