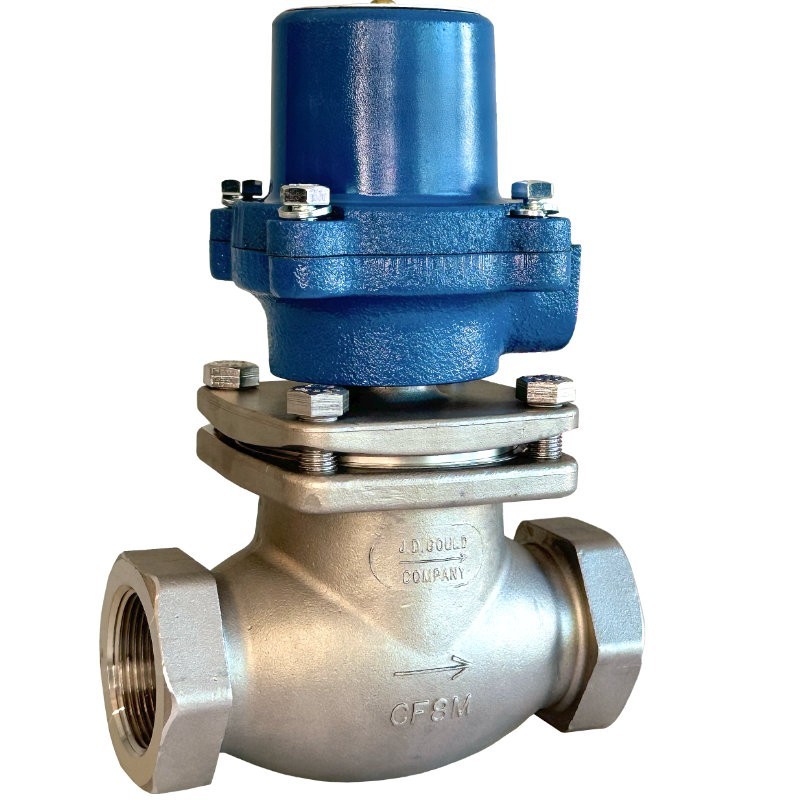

The Gould KR-230 solenoid Stainless Steel safety valve specifications:

General Specification

• General purpose safety solenoid Valve Gasoline, Diesel fuels and Fuel Oils #1 and #2
• Internal Piston–Pilot Operated
• 2–Way, full ported
• Packless
• Stainless Steel CF8M Body
• Normally Open (Energize to Open). A minimum pressure drop of 5 psi (ΔP) is needed for proper operation
• UL listed
• Viton seat
• Made in USA

Service Ratings

• Pipe Sizes: 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1¼”, 1½”, 2” NPT
• Media: Gasoline, Diesel fuels and Fuel Oils #1 and #2

  • #1 Fuel Oil: lighter, similar to kerosene
  • #2 Fuel Oil: #2 Fuel Oil is thicker
• Pressure Range: Pressure Range: 5-150 psi
• Rated Fluid Temperature Range: –40°F to +300°F
• Available Voltages: (AC) 24, 120, 240, 480 (60hz) or (DC) 12V, 24V, 48V, 115V, 230V 26 Watts Max
• Coil Specifications:

  • Class F Coils are waterproof, corrosive resistant, molded or filled polyester with 18” lead wires, inside a cast iron NEMA 7 coil housing with a ½” NPT conduit connector.

Valve construction

• Body: Investment Cast 316SS, rated to 1000 PSI
• Bonnet Assemblies: are 304 SS tubes welded into a 303 SS or CF8M SS bonnet with a 303 SS tube plug
• Piston Assemblies: are 303 SS, 316 SS, or CF8M with filled PTFE piston rings and 316 SS expanders
• Piston rings: Stainless Steel expanders
• Seat Discs:  Teflon™
• Pilot Assemblies: are 430FR SS Armature with a 316 SS pilot point and 316 SS pins
• Piston Springs: are 316 SS or 302 SS
• 1/8”-1”: Globe style body with union bonnet
• 1-1/4” – 2”: Globe style body with bolt-down bonnet.

Options

Please Note – Factory Set Open/Close Timing: Multiple factors can influence the valve’s standard open/close time, including media type, viscosity, pressure (psi), temperature, and more. On average, the valves require approximately 0.5 seconds to fully open or close once energized or de-energized.

• 81 - Slow close
• 84 - Quick close
• 76 - Spring-loaded pilot for vertical mounting (recommended only for valves up to 1" NPT)

Summary Specifications of Gould solenoid valve K-230 KR-230

Please Note: Gould Solenoid Valves are designed for Industrial–Commercial applications. Residential/Consumer applications will void the warranty.

Summary Specifications of Gould K-230 KR-230 series Stainless Steel solenoid valves

Mounting and Service

Installation: Install in HORIZONTAL pipe with COIL ASSEMBLY on TOP AND VERTICAL with FLOW ARROW or IN AND OUT markings in the proper direction. ALL PIPING should be blown clear before installation, and a 40 mesh STRAINER should be installed ahead of the valve. STEAM LINES should be properly TRAPPED at the valve inlet. PIPE DOPE is NOT recommended, but if used, should not be applied to the VALVE BODY. Apply sparingly to the pipe threads only. J.D. Gould Company recommends Teflon™ tape for all connections. PIPING should be properly aligned and supported to avoid strain on the valve body. The VALVE BODY should not be held in a VISE except across the pipe ends. Use a PIPE VISE or WRENCH on the pipe and a WRENCH on the HEX PIPE ENDS. DO NOT use the COIL ASSEMBLY for a LEVER to tighten piping.

Maintenance: Close the supply SHUT OFF VALVE and ENERGIZE the SOLENOID VALVE to de-pressurize the inlet supply line. DISCONNECT ELECTRICAL POWER before removing the COIL ASSEMBLY. The COIL will overheat and burn out if left ENERGIZED without the entire SOLENOID ASSEMBLY in place. Since OCCASIONAL INSPECTION AND CLEANING is desirable, be sure to add the valves to your scheduled maintenance program. Flowing media and cycle rate will determine the desired interval between inspections. Removing the BONNET exposes the internal parts of the valve. It is not necessary to remove the VALVE BODY from the line for inspection or repairs. Valve parts may be cleaned in commercial products such as Lime-Away® or CLR™ to remove mineral deposits. Be sure any cleaning solution is compatible with BOTH the metallic and non-metallic (seats & seals) components. Parts should be rinsed thoroughly in clean running water before re-assembly.
