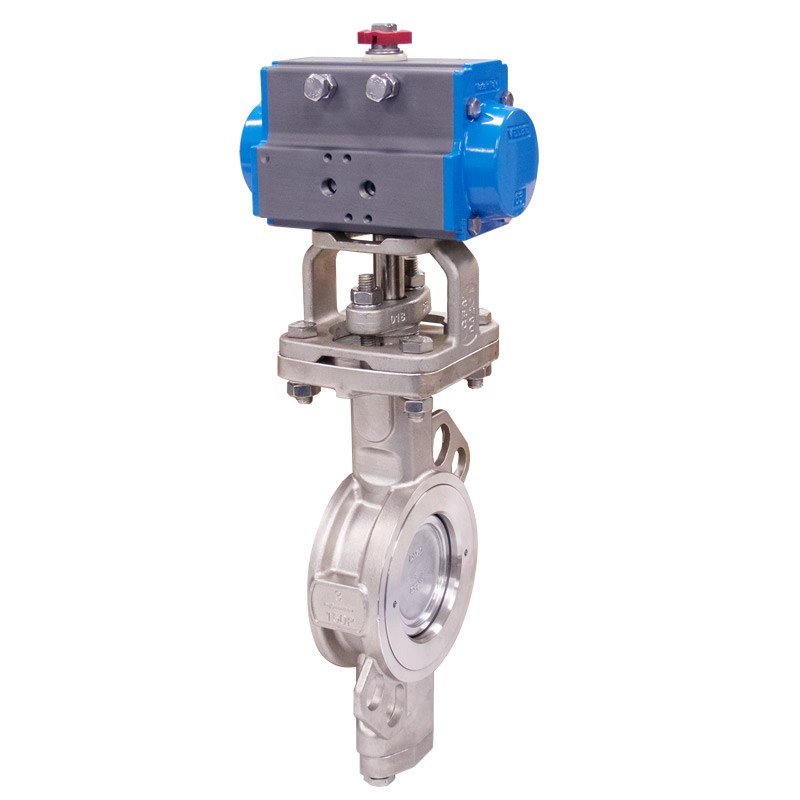

Bonomi SR9100 with Ghibson 9100 Wafer Butterfly valve HP Stainless Steel ANSI 150 PTFE seats and Valbia Spring Return Actuator
SR9100
      Bonomi SR9100 with Ghibson 9100 Wafer Butterfly valve HP Stainless Steel ANSI 150 PTFE seats and Valbia Spring Return Actuator
      Bonomi SR9100 with Ghibson 9100 Wafer Butterfly valve HP Stainless Steel ANSI 150 PTFE seats and Valbia Spring Return Actuator
      Bonomi SR9100 with 9100 Wafer Butterfly Valve and Pneumatic Actuator

      The Bonomi SR9100 package includes the Ghibson 9100 High Performance Wafer Style Butterfly ANSI 150, double offset design high performance, with A351 Gr. CF8M bodies and discs Stainless Steel, ISO 5211 Direct mounting pad square stem, RPTFE seats. The stem is made from A182 Gr. F316 stainless for extreme hardness, disc support, and is blowout proof.

      The package also includes the Valbia 82 Series Pneumatic Spring Return (SR) actuator with Viton seals 0°-90° rotation with Hard anodized Extruded Aluminum Body.

      Available in sizes from 2" to 16".

      Bonomi
      $845.25
      $1,150.00
      Save 26.5%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/11/26 and 6/16/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/11/26 - 6/16/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/11/26 - 6/12/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/10/26 - 6/11/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/9/26 - 6/10/26

      LTL Freight over 75 Pounds and under $2700.00 Standard LTL

      6/15/26 - 6/19/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/12/26 - 6/18/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/11/26 - 6/16/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/11/26 - 6/12/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: LTL Freight over 75 Pounds and under $2700.00

      Description: Standard LTL

      Estimated delivery:
      6/15/26 - 6/19/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/12/26 - 6/18/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Bonomi SR9100 package, includes both the Valve and Actuator, details of each are listed below:

        Valve

        The Ghibson 8100 Carbon Steel PTFE seats manually operated ANSI 150 class Wafer Style Butterfly valve Full Port features:

        • Temperature Range (-20°F to 475°F) (°C-29 to 23046), 150 WSP
        • ISO 5211 Direct mounting pad/square stem
        • Compact design, easy access to packing
        • Replaceable seat design
        • Multiple V-ring stem packing
        • RPTFE seats, metal seats upon request
        • 14" to 24" upon request
        • NACE MR0175
        • FC170-2 Compliant
        • CRNs available upon request
        • 10 Position locking handle
        • Soft Seat leakage protection Class VI
        • Metal Seat leakage protection Class V

        Models Variations in the same Family

        Model 8100-9100 8120-9120 8140-9140 G8100-G9100
        Variation Carbon filled PTFE Metal Seated version API607 Fire Safe Version Gear Operated Version
        Sizes 2" to 12" 2" to 12" 2" to 12" 2" to 12"
        Detailed Valve Specifications

        Please refer to the image below for specification. Click on the image to expand

        Bonomi 8100-9100 Valve Specification

        Actuator

        The Package actuator contains the Valbia 82 series SR (Spring Return)

        Valbia manufactures rack and pinion pneumatic actuators, available in spring return or double acting version, with 0°-90° standard rotation or 0°-180°, and are standardly furnished with VITON seals. Valbia offers a product with a unique patented design, which is able to guarantee high quality standard, performance and reliability.Valbia actuators are versatile and suitable to different applications and operating conditions.
        Valbia pneumatic actuators are available in three versions:

        • The 82 series aluminum with 0°-90° rotation
        • The 83 series aluminum with 0°-180° rotation
        • The 84 series stainless steel with 0°-90° rotation

        The 82 series, with an extruded and hard anodized aluminum body, is manufactured in 15 models to guarantee a wide range of choice according to the requested torque; it allows a 0°-90° rotation and is available in the spring return (SR) or double acting (DA) versions.

        Actuator Features
        • Concentric spring sets
        • Die cast aluminum end caps
        • Solid steel barstock pinion (not casting)
        • 0°-90° rotation adjustment cam
        • 0°-90° rotation adjustment bolts
        • POM piston guides
        • Mininum air pressure rating: 80 psi Max: 116 psi
        • Working temperature: -4°F - 302°F
        • No lubrication maintenance required for the entire actuator lifetime
        Valve Size with Pneumatic Spring Return Model
        Size 2" 2 1/2"  3" 4"  5" 6" 8" 10" 12" 14" 16"
        Actuator SR Model SR85V SR85V SR85V SR100V SR115V SR125V SR160V SR180V SR230V SR270V SR270V
        Weight (lbs.) 17.66 18.76 24.08 33.34 36.86 53.95 94.19 136.79 242.99 452.56 505.46
        Actuator Sizing For Pneumatic Spring Return

        The output torque of a spring return actuator is not consistent but decreasing. This is due to the action of the springs. When compressed by the air pushing out the pistons, they accumulate energy which will be available in a decreasing way during the clockwise rotation inversion. Please consult the information below for torque calculation.

        SR - Spring Return Torque chart

        Spring Return Actuator Torque

        Spring Return Torque Pneumatic Actuators Bonomi 9100 Bonomi SR9100
        Spring Return Torque Specs
        Valbia Pneumatic Actuators
        Bonomi 8100 9100
        DA9100-SR9100

      • Bonomi
        SR9100

        Data sheet

        Valve Type
        Butterfly Valve
        Valve Size
        2" 2.5 (2 1/2") 3" 4" 5" 6" 8" 10" 12" 14" 16"
        Valve Temperature Range
        -20° to 475°F (°C -29 to 246)
        Valve Body Material
        Stainless Steel
        Valve Body Style
        Wafer
        Valve Disc Material
        Stainless Steel
        Actuation Type
        Spring Return
        Actuator Housing
        Hard Anodized Aluminum
        Valve Connection
        Class 150 Wafer Style Flanged
        Actuator Temperature Working Range
        °F (-4 - 302) °C (-20 - 150)
        Acuatator Rotation
        0°-90°
        Valve PSI
        275
        Valve Configuration
        2-Way
        Valve Seat
        RPTFE
