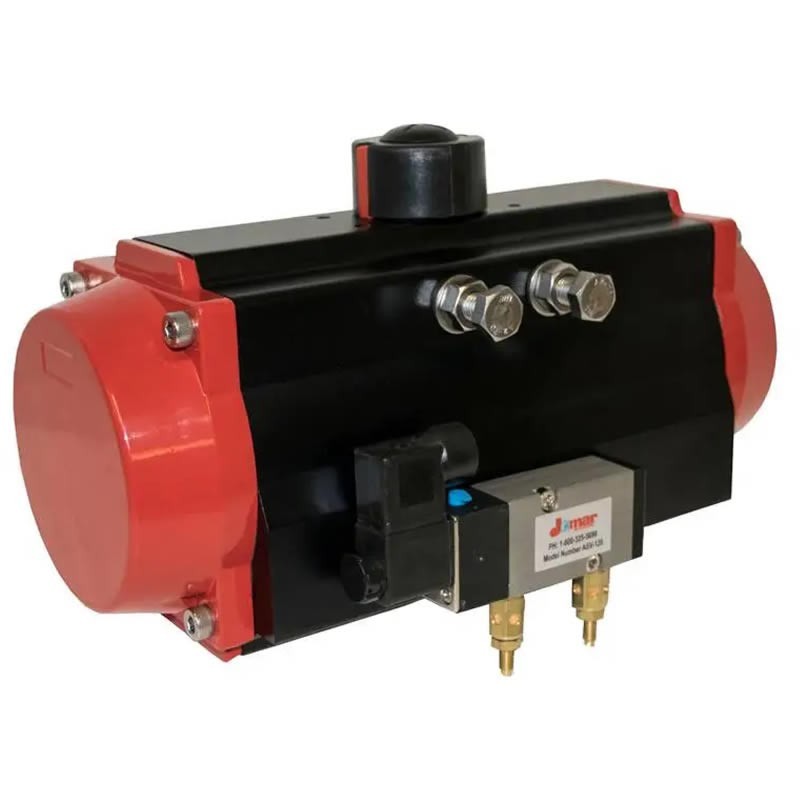

Jomar JV-50-SR Spring Return Pneumatic Actuator Rotary Rack Pinion Design Dual Travel Stops Hard Anodized Extruded AI Body
JV-50-SR
The Jomar JV-50-SR Spring Return Pneumatic actuator features Rotary Rack, Pinion Design, Dual Travel Stops, Hard Anodized Extruded Aluminum Body Construction with Internal/External Corrosion Protection, Blow-Out Proof Output Shaft and Dual Rack and Piston Design with Multiple Bearings and Guides. Manufactured to Fully Conform to ISO5211 and DIN3337 with Silicone-Free Lubricants and O-Ring Sealed to Prevent Outside Contamination with Stainless steel fasteners. Namur interface mounting of solenoid valves, limit switches and positioners.
The JV Series actuators are designed for high-cycle applications and can be utilized in hazardous and corrosive environments.
$270.79
$392.45
Save 31%Weight: 3.04 lb.
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar JV Series rotary pneumatic actuators are designed for use with quarter-turn ball, butterfly and plug valves as well as damper applications. The JV Series actuator is designed for high-cycle applications and can be utilized in hazardous and corrosive environments.
Actuator Features
- Hard anodized aluminum body with both internal and external corrosion protection
- Manufactured to fully conform to ISO5211 and DIN3337
- Namur interface mounting of solenoid valves, limit switches and positioners
- Precision honed cylinder surfaces for longer life and low coefficient of friction
- Dual rack and pinion design with multiple bearings and guides
- Blow-out proof output shaft
- Modular type, epoxy coated spring design offers a wide torque range, corrosion resistance and an extended life cycle
- O-ring sealed to prevent outside contamination
- Stainless steel fasteners
- Travel stops are standard on all models
- Manufactured with silicone-free lubricants
Available Jomar Spring Return Actuator Models
Spring Return Output Torque (in-lb) @ 80PSI W/ 11 SPRINGS (STANDARD) Model SQ ISO Air Start Spring End Weight (lbs.) JV-50-SR 0.43 F03/F05 109 71 2.78 JV-60-SR 0.55 F05/F07 221 144 4.85 JV-70-SR 0.55 F05/F07 344 223 6.92 JV-80-SR 0.67 F05/F07 505 328 9.02 JV-90-SR 0.67 F05/F07/F10 709 461 13.1 JV-100-SR 0.87 F05/F07/F10 951 618 15.79 JV-120-SR 0.87 F07/F10 1638 1064 23.92 JV-140-SR 1.06 F07/F10/F12 2054 1335 34.68 JV-160-SR 1.06 F10/F12 3354 2179 51.28 JV-190-SR 1.42 F10/F14 5518 3585 72.82 JV-200-SR 1.42 F10/F14 6934 4504 102.45 JV-240-SR 1.81 F16 12284 7979 147.41 JV-270-SR 1.81 F16 15409 10009 231.49 JV-300-SR 1.81 F16 21620 14043 286.60 Detailed Specifications
Jomar Pneumatic Actuators Jomar Pneumatic Actuator Torque Jomar JV-Double Acting SeriesJomar Pneumatic Actuators Torque- JV-50-SR
Data sheet
- Actuation Type
- Spring Return Pneumatic
- Actuator Housing
- Extruded Aluminum
- Acuatator Rotation
- 0°-90°
- Torque Output Range (Lbs.)
- 71-109
- ISO 5211 Pattern
- F03 F05
No customer reviews for the moment.
The Jomar JV-50-SR Spring Return Pneumatic actuator features Rotary Rack, Pinion Design, Dual Travel Stops, Hard Anodized Extruded Aluminum Body Construction with Internal/External Corrosion Protection, Blow-Out Proof Output Shaft and Dual Rack and Piston Design with Multiple Bearings and Guides. Manufactured to Fully Conform to ISO5211 and DIN3337 with Silicone-Free Lubricants and O-Ring Sealed to Prevent Outside Contamination with Stainless steel fasteners. Namur interface mounting of solenoid valves, limit switches and positioners.
The JV Series actuators are designed for high-cycle applications and can be utilized in hazardous and corrosive environments.
