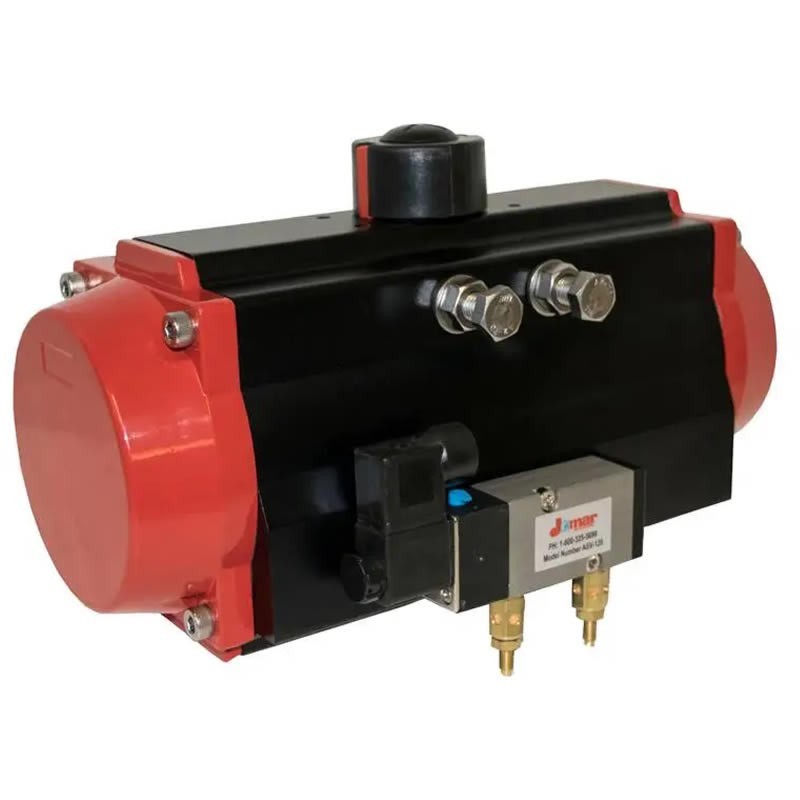

      Jomar JV-190-DA Double acting Pneumatic Actuator
      Move your mouse over image or click to enlarge
      Jomar JV-190-DA Double Acting Pneumatic Actuator Rotary Rack Pinion Design Dual Travel Stops Hard Anodized Extruded AI Body Jomar JV-190-DA Double Acting Pneumatic Actuator Rotary Rack Pinion Design Dual Travel Stops Hard Anodized Extruded AI Body

      The Jomar JV-190-DA Double acting Pneumatic actuator features Rotary Rack, Pinion Design, Dual Travel Stops, Hard Anodized Extruded Aluminum Body Construction with Internal/External Corrosion Protection, Blow-Out Proof Output Shaft and Dual Rack and Piston Design with Multiple Bearings and Guides.  Manufactured to Fully Conform to ISO5211 and DIN3337 with Silicone-Free Lubricants and O-Ring Sealed to Prevent Outside Contamination with Stainless steel fasteners. Namur interface mounting of solenoid valves, limit switches and positioners.

      The JV Series actuators are designed for high-cycle applications and can be utilized in hazardous and corrosive environments.

      Jomar Valve
      $1,555.87
      $2,288.04
      Save 32%
      Typically ships within 1-2 business days

      Weight: 61.05 lb.

      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • Jomar JV Series rotary pneumatic actuators are designed for use with quarter-turn ball, butterfly and plug valves as well as damper applications. The JV Series actuator is designed for high-cycle applications and can be utilized in hazardous and corrosive environments.

        Actuator Features
        • Hard anodized aluminum body with both internal and external corrosion protection
        • Manufactured to fully conform to ISO5211 and DIN3337
        • Namur interface mounting of solenoid valves, limit switches and positioners
        • Precision honed cylinder surfaces for longer life and low coefficient of friction
        • Dual rack and pinion design with multiple bearings and guides
        • Blow-out proof output shaft
        • Modular type, epoxy coated spring design offers a wide torque range, corrosion resistance and an extended life cycle
        • O-ring sealed to prevent outside contamination
        • Stainless steel fasteners
        • Travel stops are standard on all models
        • Manufactured with silicone-free lubricants
        Available Jomar Double Acting Actuator Models
        Double Acting Output Torque (in-lb) based on supply pressure (PSI)
        Model SQ ISO 40 60 80 100 Air Connection Weight (lbs.)
        JV-50 0.43 F03/F05 90 135 180 225 G-1/4" 2.78
        JV-60 0.55 F05/F07 183 274 365 457 G-1/4" 4.45
        JV-70 0.55 F05/F07 284 426 567 709 G-1/4" 6.13
        JV-80 0.67 F05/F07 416 625 833 1041 G-1/4" 7.96
        JV-90 0.67 F05/F07 585 878 1170 1483 G-1/4" 11.51
        JV-100 0.87 F07/F10 785 1177 1589 1961 G-1/4" 13.4
        JV-120 0.87 F07/F10 1351 2026 2702 3377 G-1/4" 20.35
        JV-140 1.06 F10/F12 1695 2542 3389 4236 G-1/4" 29.92
        JV-160 1.06 F10/F12 2767 4150 5533 6917 G-1/4" 42.95
        JV-190 1.42 F14 4552 6827 9103 11379 G-1/4" 61.05
        JV-200 1.90 F14 5719 8579 11438 14298 G-1/4" 85.39
        JV-240 1.81 F16 10132 15197 20263 25329 G-1/2" 121.25
        JV-270 1.81 F16 12709 19064 25418 31773 G-1/2" 185.19
        JV-300 1.81 F16 17832 26747 35663 44579 G-1/2" 227.08
        Detailed Specifications
        Jomar Pneumatic Actuators Jomar Pneumatic Actuator Torque
        Jomar JV-Double Acting Series
        Jomar Pneumatic Actuators Torque

      • Jomar Valve
        JV-190-DA

        Data sheet

        Actuation Type
        Double Acting Pneumatic
        Actuator Housing
        Extruded Aluminum
        Acuatator Rotation
        0°-90°
        Torque Output Range (Lbs.)
        4552-11379
        ISO 5211 Pattern
        F14
