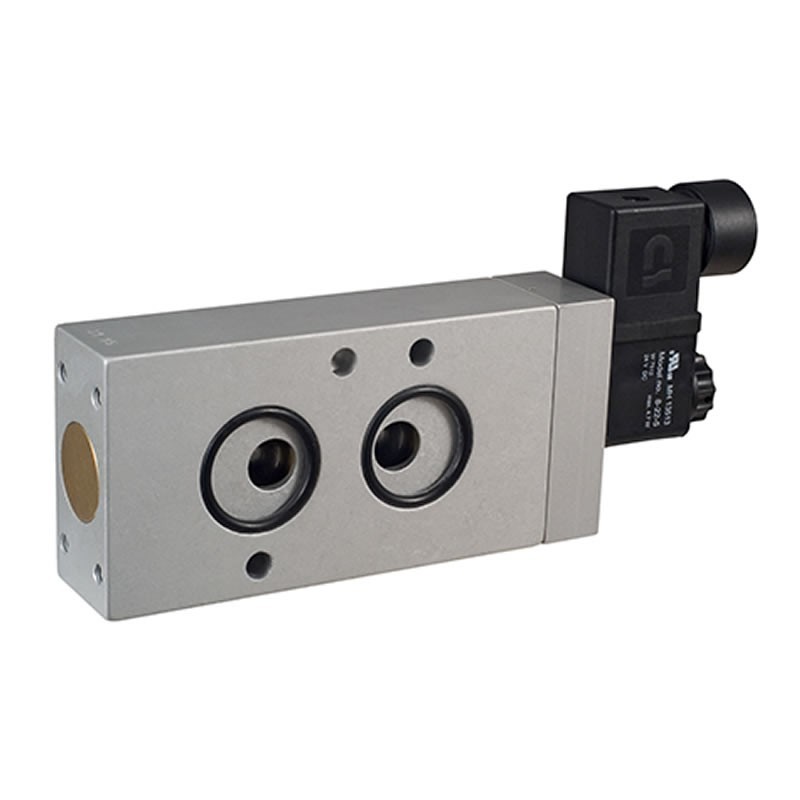

Bonomi NMR4-C Solenoid Namur Valve 4-Way Conduit Connection with 1/2" ports and Voltage Options
NMR4-C
      Bonomi NMR4-C Solenoid Namur Valve 4-Way Conduit Connection with 1/2" ports and Voltage Options
      Bonomi NMR4-C Solenoid Namur Valve 4-Way Conduit Connection with 1/2" ports and Voltage Options
      Bonomi NMR4-C 4-Way Conduit Connection NPT 1/2" ports

      The Bonomi Series NMR4-C Solenoid Namur Valve 4-way Conduit Connection, NPT 1/2" ports is available for the following Voltages: 110V AC , 24V DC, 12V DC, 220V AC and 24V AC.

      Bonomi
      $390.50
      $550.00
      Save 29%
      Quantity :

      Free Shipping up to 5 lbs. Order before 10:30 on Friday and receive it between 6/11/26 and 6/16/26 with Free Shipping up to 5 lbs.

      Delivery Options
      Carrier Description Estimated Delivery
      Free Shipping up to 5 lbs. 5 to 6 days Transit

      6/11/26 - 6/16/26

      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/11/26 - 6/17/26

      Carrier: Free Shipping up to 5 lbs.

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/11/26 - 6/16/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/11/26 - 6/17/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Bonomi Series NMR4-C Solenoid Namur 4-Way Conduit Connection Valve Features:

        • 4-way single solenoid NAMUR valve
        • Ports 1/2” NPT
        • Duty cycle 100% continuous
        • Pressure range 20 to 120 PSIG
        • Temperature Range 35°F to +130°F (-15.5°C to 54.4°C)
        • Weight: 1 lbs.
        SSNMR1-C 4-Way Conduit Connection Models
        Model Voltage In Rush Power Consumption Suffix
        NMR4-C1 110 VAC 62 mA 3.5w 4C1
        NMR4-C2 24V DC 105 mA 3.5w 4C2
        NMR4-C12 12V DC 204 mA 3.5w 4C12
        NMR4-C22 220V AC 31 mA 3.5w 4C22
        NMR4-C24 24V AC C/F 3.5w 4C24
        Detailed Specifications
        NMR4-C
        NMR4-C Solenoid Namur Valve

      • Bonomi
        NMR4-C

        Data sheet

        Valve Voltage
        12V DC 24V DC 120V AC 220V AC
        Valve Configuration
        4-Way Conduit
        Ports
        1/2” NPT
