Valpres 766000 SRL Split Body Ball Valve Stainless Steel Flanged ANSI class 150 Full port with ISO 5211 Mounting pad and Handle
766000 SRL
      Valpres 766000 SRL Split Body Ball Valve Stainless Steel Flanged ANSI class 150 Full port with ISO 5211 Mounting pad and Handle
      Valpres 766000 SRL Split Body Ball Valve Stainless Steel Flanged ANSI class 150 Full port with ISO 5211 Mounting pad and Handle

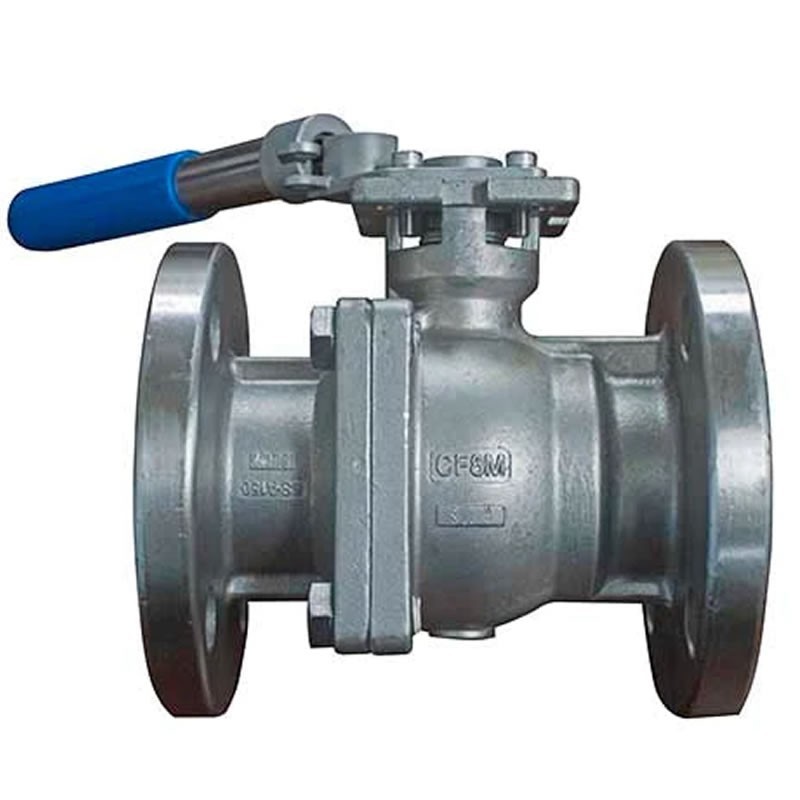

      Valpres 766000SRL Split body Ball Valve Stainless Steel ANSI class 150

      The Valpres 766000SRL Split body Ball Valve Stainless Steel ANSI class 150 Flanged, Full port with locking handle and direct mount ISO 5211 square stem pad, PTFE seats, and FKM Viton O-rings. Fire Safe API 6FA-API 607.

      Available in sizes from 1" to 2".

      Valpres
      $409.99
      $565.51
      Save 27.5%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      LTL Freight over 75 Pounds and under $2700.00 Standard LTL

      6/12/26 - 6/18/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/11/26 - 6/17/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: LTL Freight over 75 Pounds and under $2700.00

      Description: Standard LTL

      Estimated delivery:
      6/12/26 - 6/18/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/11/26 - 6/17/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Valpres 766000SRL Deadman Spring Return Features:

        • Deadman Spring lever, Split body Style, ANSI 150 flanged raised face Stainless steel Ball valve Full port
        • ISO 5211 mounting pad and stem
        • Temperature range -4°F to 400°F  (°C -20 - 185.556)
        • Blow-out proof stem
        • Standard Grounded ball and stem
        • PTFE seats, and FKM Viton O-rings
        • Fire Safe API 6FA-API 607
        • Antistatic device
        • TUV T.A Luft approved
        • Designed to ANSI B16.5, B16.10, B16.34
        • NACE MR 0175
        • Sizes 1" to 2"
        Summary Specifications for series 766001 SRL (Please see attachment for full specs.)
        Size 1" 1 1/2" 2"
        ISO 5211 ØN F03 FO5 FO5
        Weight (lbs.) 9 11 11
        View Specifications
        Valpress 766001SRL Spec Sheet
        Valpress 766000SRL 766001SRL

      • Valpres
        766000 SRL

        Data sheet

        Valve Type
        Ball Valve Split Body
        Valve Size
        1" 1.5 (1 1/2") 2"
        Valve Temperature Range
        -4° to 400°F (°C -20 to 204)
        Valve Body Material
        Stainless Steel
        Valve Body Style
        Full Port Split-Body
        Valve Connection
        Class 150 Flanged
        Valve PSI
        285
        Valve Fire Rating
        Fire safe API 6FA-API 607
        Valve Configuration
        2-Way
        Valve Operation
        Manual
        Valve Seat
        PTFE
