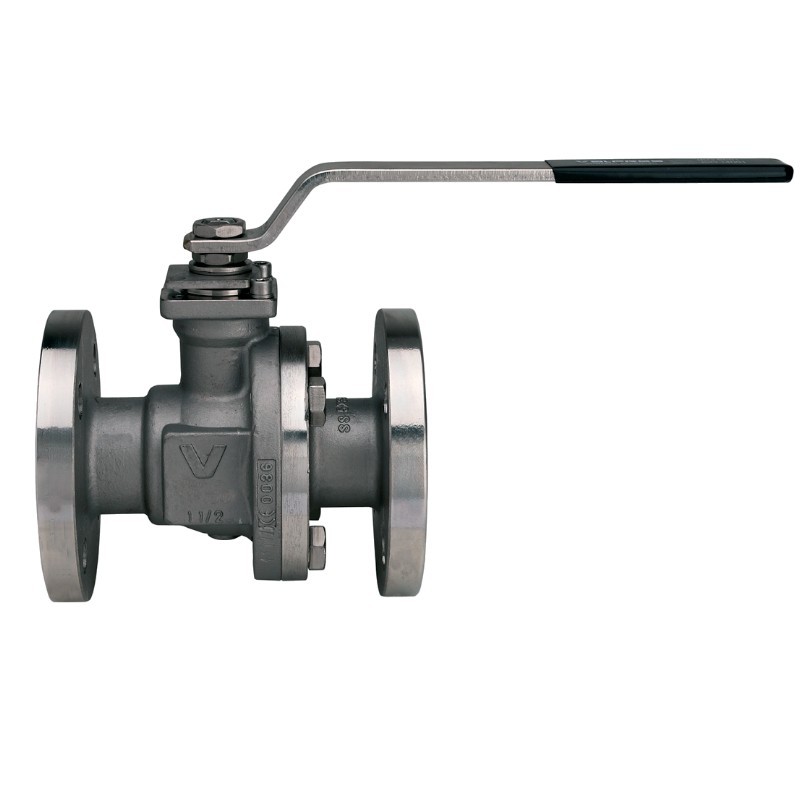

Valpres 761030 Ball Valve - ANSI 300 Flanged Stainless Steel - Fire Safe API 607 Full Port | 1/2" to 8"
761030
The Valpres 761030 Ball Valve is a high-performance Full port, Split Body, CF8M Stainless Steel designed ANSI class 300 Flanged industrial applications, Fire Safe API 6FA-API 607 certification.
Mechanical safety, includes an integrated antistatic device to maintain electrical continuity between the ball, stem, and body. Includes an ISO 5211 mounting pad and a Double "D" stem to facilitate direct-mount automation. Sealing with Reinforced PTFE (RPTFE) seats and graphite packing, temperature range of -4°F to +366°F and vacuum service down to 10⁻³.
The valve ensures durability in corrosive, high-pressure environments while offering automated, antistatic, and blow-out proof functionality.
Available in sizes from 1/2" to 8". Also offered as packages comprised of valve and actuator (both pneumatic DA/SR and electric) factory optimized by size (see More Options at the bottom of the page for a list of actuator paired with current valve offerings).
$324.12
$444.00
Save 27%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Valpres 761030 Ball valve ANSI class 300 Flanged features:
- CF8M Stainless steel, Split Body, ANSI Class 300 flanged ball valve, full port and Double "D" Stem
- ANSI B16.5, B16.10, B16.34 design
- Temperature range -4°F to 366°F
- 100% tested
- PED 97/23/CE
- RTFE seats, packing and thrust washer
- Blow-out proof stem, locking handle
- Fire Safe API 6FA-API 607
- Antistatic Device
- ISO 5211 mounting pad with double "D" stem
- Locking device
- Fugitive emissions tested to ISO 15848-1
- Sizes 1/2" to 8" (** 8" TRUNNION)
Also available in
- 760195: Steam Service Trim Sizes 1/2" to 6"
Summary Specifications (Pleasee see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/2" 2" 3" 4" 6" 8" TRUNNION max = 362 psi. ISO 5211 ØN 1.65-F04 1.65-F04 1.97-FO5 1.97-FO5 2,76-FO7 4.02-F10 4.02-F10 4.92-F12 4.92-F12 Break Torque (lbs.) 44 142 150 240 345 770 1160 1240 3505 Weight (lbs.) 5.07 7.71 11.46 22.04 26.45 59.51 90.36 204.97 332.80 Detailed Valve Specifications
Please refer to the image below for specification. Click on the image to expand
- 761030
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 2" 3" 4" 6" 8"
- Valve Temperature Range
- -4° to 366° F (°C -20 to 186)
- Valve Body Material
- Stainless Steel
- Valve Body Style
- Full Port Split-Body
- Valve Connection
- Class 300 Flanged
- Valve PSI
- 720
- Valve Fire Rating
- Fire safe API 6FA-API 607
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
- Valve Certification
- API 607 NACE MR 0175
- Valve Seat
- RPTFE
- Valve Standards
- ASME B16.5 ASME B16.10 ASME B16.34 ISO 5211
