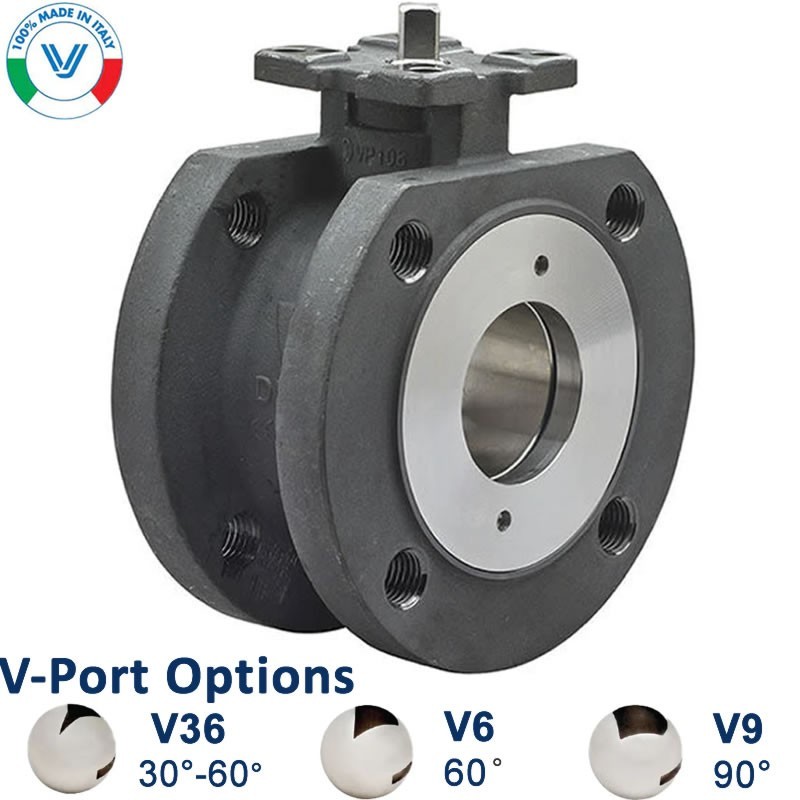

Valpres 724102V Ball Valve Carbon Steel Flanged ANSI 150 Wafer Style 30-60° 60° 90° V-Port Options Direct Mount
724102V
      Valpres 724102V Ball Valve Carbon Steel Flanged ANSI 150 Wafer Style 30-60° 60° 90° V-Port Options Direct Mount
      Valpres 724102V Ball Valve Carbon Steel Flanged ANSI 150 Wafer Style 30-60° 60° 90° V-Port Options Direct Mount
      Valpres 724102V V-Ball Valve Carbon Steel Flanged ANSI 150 Wafer

      The Valpres 724102V Wafer Style ANSI class 150 Flanged V-Ball Valve, Carbon Steel, 2-way, Direct Mount with ISO 5211 Pad, Low Torque design.  There are 3 V Ball setting options, 30-60, 60 and 90 degrees. Low Torque design, antistatic stem device. This series is a unibody design with less potential leak paths, lighter in weight vs comparable split bodied designs.

      Available in sizes from 1" to 4".

      Valpres
      $232.47
      $320.65
      Save 27.5%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      LTL Freight over 75 Pounds and under $2700.00 Standard LTL

      6/12/26 - 6/18/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: LTL Freight over 75 Pounds and under $2700.00

      Description: Standard LTL

      Estimated delivery:
      6/12/26 - 6/18/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The unibody design benefits from less potential leak paths, lighter in weight vs comparable split bodied designs.

        The seat is made from 23% carbon, and, 2% graphite filled PTFE to withstand rugged steam applications, and the valve has a built- in stem and ball grounded for safety. Because of the very low torque, this valve series utilizes smaller than normal electric and pneumatic actuators to operate it, thus saving money, and extending the potential life of the package.

        The Bonomi Valpres 724102-V36, 724102-V6 and 724102-V9  Direct Mount Wafer Style V-Ball Valve V port Features:

        • Stainless Steel ANSI class 150 Flanged
        • Temperature range -4°F to 366°F  (°C -20 - 186)
        • Antistatic stem device
        • TFM-MPTFE ball seats and thrust washer standard
        • Triple steam seals-two Viton (FKM) O-rings and one PTFE seat
        • ISO 5211 Pad
        • Low Torque design
        • Sizes 1" to 4"
        Summary Specifications for Valpres series 724102V (Please see attachment for full specs.)
        Size 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4"
        ISO 5211 ØN F03/F05 F03/F05 FO5 F05/F07 FO7 FO7 FO7
        Breqk Torque (lbs.) 89 116 151 177 284 390 531
        Cv 74..63 120.10 201.32 348.60 596.66 1009.48 1577.34
        Weight (lbs.) 5.29 7.72 9.92 14.77 24.03 30.87 46.08
        Detailed Valve Specifications

        Please refer to the image below for specification. Click on the image to expand

        Bonomi 724102V Specification

        Valpres 723102V 724102V Spec Sheet
        Valpres 723102V 724102V

      • Valpres
        724102V

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3" 4"
        Valve Temperature Range
        -4° to 366° F (°C -20 to 186)
        Valve Body Material
        Carbon Steel
        Valve Connection
        Class 150 Flanged
        Valve PSI
        275
        Valve Configuration
        2-Way
        Valve Seat
        PTFE
