Valpres 68F400 Ball Valve -API608 Carbon Steel - ANSI 600 Flanged - Full Port Split-Body ISO 5211 Pad Double D Stem
68F400
      Valpres 68F400 Ball Valve -API608 Carbon Steel - ANSI 600 Flanged - Full Port Split-Body ISO 5211 Pad Double D Stem
      Valpres 68F400 Ball Valve -API608 Carbon Steel - ANSI 600 Flanged - Full Port Split-Body ISO 5211 Pad Double D Stem

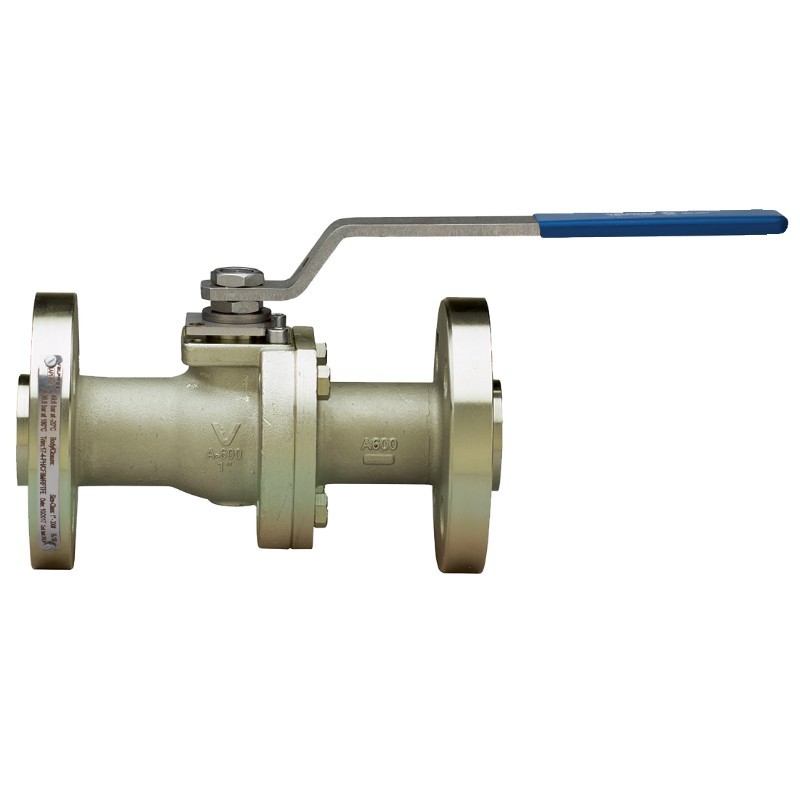

      Valpres 68F400 Carbon Steel Ball Valve ANSI Class 600 Flanged

      The Valpres 68F400 zinc-plated Carbon Steel Ball Valve ANSI Class 600 Flanged, full port, Fire Safe, blow-out proof stem, RTFE seats, packing and thrust washer, ISO 5211 pad, Blow-out proof stem, Double "D" stem for Fire Safe applications, Fire Safe to API 607.

      The integrated ISO 5211 direct Mount pad and square stem allow for easy and direct automation with either electric or pneumatic actuators.

      Available in sizes from 1/2" to 2".  Also offered as packages comprised of valve and actuator (both pneumatic DA/SR and electric) factory optimized by size.

      Valpres
      $556.80
      $768.00
      Save 27.5%
      Quantity :

      UPS Ground over 5 pounds Order before 10:30 on Friday and receive it between 6/10/26 and 6/15/26 with UPS Ground over 5 pounds

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      LTL Freight over 75 Pounds and under $2700.00 Standard LTL

      6/12/26 - 6/18/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 75 pounds

      6/11/26 - 6/17/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      Carrier: LTL Freight over 75 Pounds and under $2700.00

      Description: Standard LTL

      Estimated delivery:
      6/12/26 - 6/18/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 75 pounds

      Estimated delivery:
      6/11/26 - 6/17/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Valpres 68F400 Split body Ball valve, Carbon Steel zinc-plated API608, ANSI class 600 Flanged, features:

        • Carbon steel, ANSI class 600, flanged ball valve, full port Double D Stem
        • 316 Stainless Steel ball and a 17-4-PH stainless steel blowout-proof stem
        • Compliance: API 608, ASME 816.34, ASME 816.10, ASME 816.5, ASME 81.1 design
        • Temperature range -4°F to 366°F
        • 100% tested according to API 598 standards
        • RTFE seats, packing and thrust washer
        • Blow-out proof stem, locking handle
        • Fire Safe API 607
        • Antistatic Device
        • ISO 5211 mounting pad with double "D" stem"
        • Locking device
        • Media: Water, oil, gas, and vacuum applications.
        • Sizes 1/2" to 2"
        Summary Specifications (Pleasee see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/2" 2"
        ISO 5211 ØN 1.65-F04 1.65-F04 1.96-FO5 1.96-FO5 1.96-FO5
        Break Torque (lbs.) 159.3 225.68 354 610.65 1062
        Weight (lbs.) 7.94 11.25 15.88 29.11 38.37
        Detailed Valve Specifications

        Please refer to the image below for specification. Click on the image to expand

        Valpres 68F400 Valve Specification

      • Valpres
        68F400

        Data sheet

        Valve Type
        Ball Valve Split Body
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 2"
        Valve Temperature Range
        -4° to 366° F (°C -20 to 186)
        Valve Body Material
        Carbon Steel
        Valve Body Style
        Full Port Split-Body
        Valve Connection
        Class 600 Flanged
        Valve PSI
        1480 (Max)
        Valve Fire Rating
        Fire safe to API 607
        Valve Operation
        Manual
        Valve Seat
        RTFE
