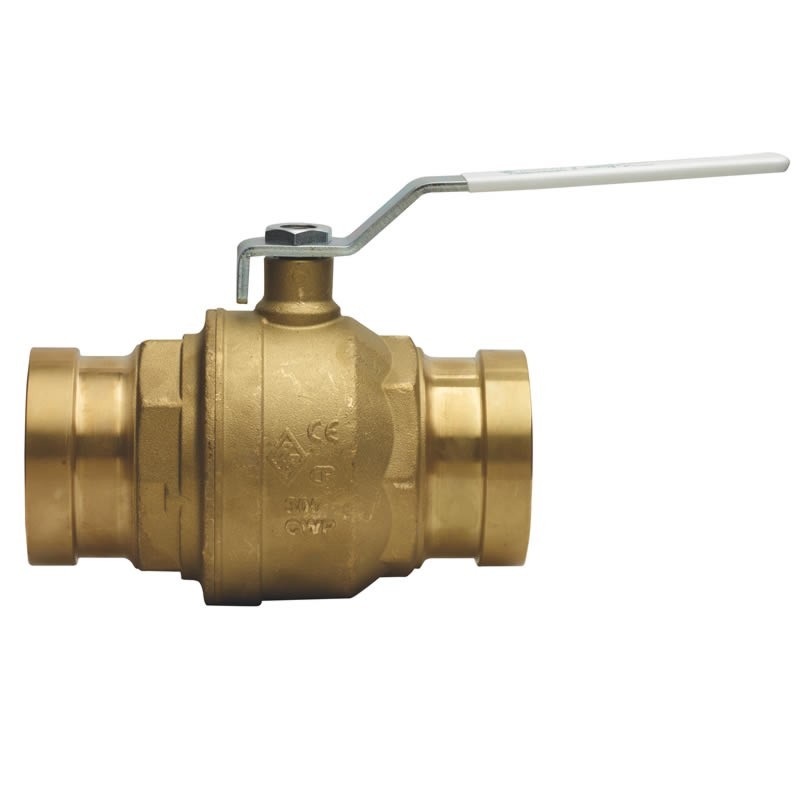

Rubinetterie Bresciane 1670XLC Lead Free ball valve with XLC EURO-PRESS connection Full port and handle
1670XLC
The Rubinetterie Bresciane 1670XLC Lead Free Brass Ball Valve, 2-way, Full-Port XLC Euro-Press connection with Full port features a pressure rating of 300 PSI up to 3" and 200 PSI for the 4", a temperature range of -4° to 250° F (°C -20 to 121), blow-out proof stem with stainless steel ball and made with lead free dezincification resistant brass (LF-DZR).
Available in sizes from 2 1/2" to 4".
$239.76
$324.00
Save 26%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Rubinetterie Bresciane Series 1670XLC 2-way Lead Free Brass Ball Valve with XLC EURO-PRESS connection and lever handle features:
- Test pressure rating 300 psi up to 3” and 200 psi for the 4”, working pressure 200 psi for all sizes.
- Temperature range:-4° to 250° F (°C -20 to 121)
- Made in lead free dezincification resistant brass (LF-DZR)
- Blow-out proof stem, stainless steel ball
- PTFE seats and double O-ring stem packing
- 100% electronically tested in the open and closed position at 80 psi
- Valve to be used in fully open or fully closed position
- COMPLIES WITH CALIFORNIA AB1953
- Lever handle
Summary Specifications
Size 2 1/2" 3" 4" Max Work Press (psi) 200 200 200 Max test Press (psi) 300 300 200 Weight (lbs.) 8.7 13.6 28.19 Detailed Valve Specifications
Please refer to the image below for specification. Click on the image to expand
Rubinetterie Bresciane 1670XLC Rubinetterie Bresciane 1670XLC- 1670XLC
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- 2.5 (2 1/2") 3" 4"
- Valve Temperature Range
- -4° to 250° F (°C -20 to 121)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Press XLC
- Valve PSI
- 300
- Valve Configuration
- 2-Way
No customer reviews for the moment.
The Rubinetterie Bresciane 1670XLC Lead Free Brass Ball Valve, 2-way, Full-Port XLC Euro-Press connection with Full port features a pressure rating of 300 PSI up to 3" and 200 PSI for the 4", a temperature range of -4° to 250° F (°C -20 to 121), blow-out proof stem with stainless steel ball and made with lead free dezincification resistant brass (LF-DZR).
Available in sizes from 2 1/2" to 4".
