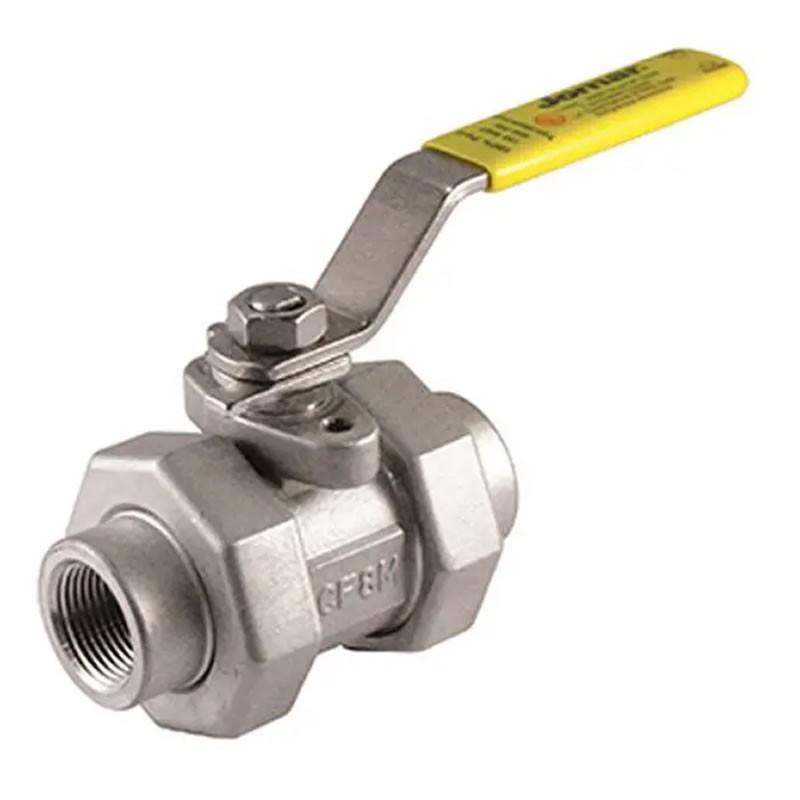

Jomar T-SS-2002N-DUE Stainless Steel Ball Valve 5 Piece Full Port Threaded Connection Double Union End S-Steel Trim 3000 WOG
T-SS-2002N-DUE
Review (0)
      Jomar T-SS-2002N-DUE Stainless Steel Ball Valve 5 Piece Full Port Threaded Connection Double Union End S-Steel Trim 3000 WOG
      Jomar T-SS-2002N-DUE Stainless Steel Ball Valve 5 Piece Full Port Threaded Connection Double Union End S-Steel Trim 3000 WOG
      Jomar T-SS-2002N-DUE S-Steel Ball Valve 3000 WOG
      Move your mouse over image or click to enlarge

      The Jomar T-SS-2002N-DUE Ball Valve features Solid Ball construction, 5 pieces, Ful port, Threaded connection, Double union End, Stainless Steel Trim and up to 3000 WOG. It also features adjustable stem packing with Blow-out proof stem, 100% Leak Tested, Mounting Pad, Reversible Handle and 29 in-Hg Vacuum Rating.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $120.44
      $172.05
      Save 30%
      Typically ships within 1-3 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar ball valve T-SS-2002N-DUE with solid ball construction, Double union end, threaded, 3000 WOG features:

        • Solid Ball Construction
        • 5 piece construction
        • Mounting Pad
        • Reversible Handle
        • Locking Handle Available
        • Adjustable Stem Packing with Blow-Out Proof Stem
        • 100% Leak Tested
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Repair Kits Available
        • Valve seat Rating: 3000 WOG - 150 WSP
        Approvals

        UL Listed

        • MHKZ - Manual Valves
        • YQNZ - Compressed Gas Shut-Off Valves
        • YRBX - Flammable Liquid Shut-Off Valves
        • YRPV - Gas Shut-Off Valves
        • YSDT - LP Gas Shut-Off Valves
        • YQAR - Anhydrous Ammonia Shut-Off Valves

        Others

        • API-598
        • ANSI B1.20.1
        • ANSI B16.11
        • MSS SP-110
        • NACE Certified
        • Buy American Act Compliant
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-983 100-984 100-985 100-986 100-987 100-988
        Torque 65 100 120 210 300 400
        Weight (lbs.) 1.7 2.5 3.75 5.6 8.75 13
        View Detailed Valve Specifications
        Jomar T-SS-2002N-DUE Specifications
        T-SS-2002N-DUE

      • Jomar Valve
        T-SS-2002N-DUE

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        -20° to 446° F (°C-29 to 230)
        Valve Body Material
        CF8M Stainless Steel
        Valve Body Style
        Full Port
        Valve Connection
        Threaded
        Valve PSI
        3000
        Valve Configuration
        2-Way
        Valve Operation
        Manual
