Jomar T-SS-1050N-3L 3 Way Dispenser Ball Valve Stainless Steel 2 Piece with Threaded Connection Reduced Port 1000 WOG
T-SS-1050N-3L
Review (0)
      Jomar T-SS-1050N-3L 3 Way Dispenser Ball Valve Stainless Steel 2 Piece with Threaded Connection Reduced Port 1000 WOG
      Jomar T-SS-1050N-3L 3 Way Dispenser Ball Valve Stainless Steel 2 Piece with Threaded Connection Reduced Port 1000 WOG

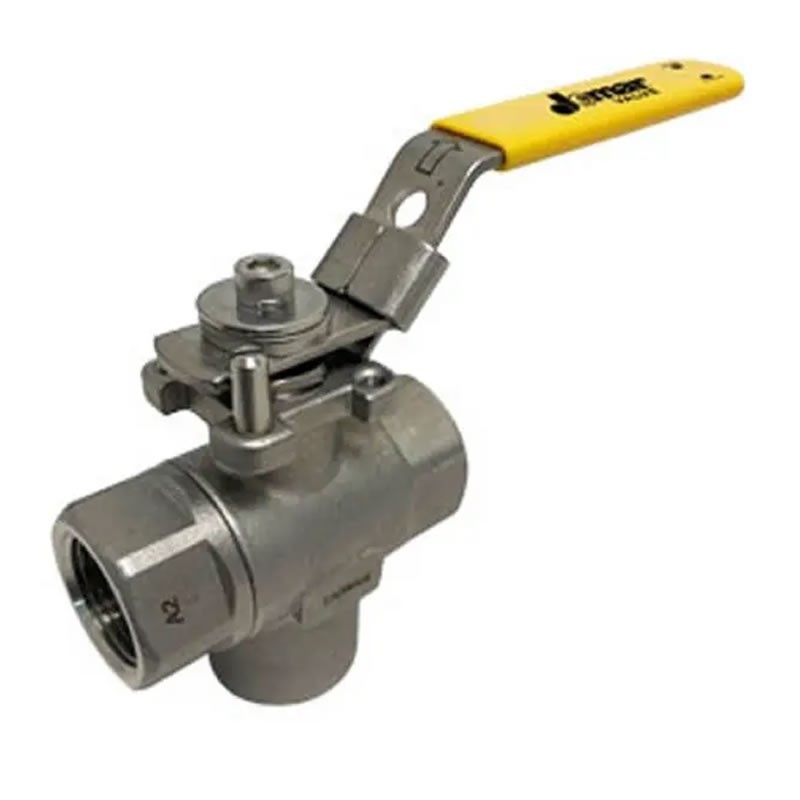

      Jomar T-SS-1050N-3L S-Steel 3-way Dispenser Ball Valve 1000 WOG
      Move your mouse over image or click to enlarge

      The Jomar Antistatic T-SS-1050N-3L 3-way Dispenser Ball Valve Stainless Steel features 2 Pieces, reduced port (standard), Threaded Connection, up to 1000 WOG, 180° Handle which Prevents Cross-Contamination, Blow-Out Proof Stem and Locking Handle.

      Available in sizes 1/2" a 1".

      Jomar Valve
      $264.14
      $377.34
      Save 30%
      Typically ships within 1-3 business days
      Quantity :
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Free Shipping - Free Shipping - Free delivery on most products unless otherwise stated
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar 3-way Dispenser Antistatic ball valve T-SS-1050N-3L  Threaded weld connection, standard port, 1000 WOG features:

        • Locking Handle
        • Blow-Out Proof Stem
        • Antistatic Device
        • 180° Handle Prevents Cross-Contamination
        • ISO 5211 Mounting Pad

        Approvals

        • ANSI B1.20.1
        • Buy American Act Compliant

        Pressure/Temperature Rating

        • 1000 WOG
        • -4°F to 392°F (°C -20 to 200)
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1"
        Part number 500-203 500-204 500-205
        Torque 62.1 2.62 3.8
        Weight (lbs.) 1.8 2.5 3.75
        View Detailed Valve Specifications
        Jomar T-SS-1050N-3L Specifications
        Jomar T-SS-1050N-3L

      • Jomar Valve
        T-SS-1050N-3L

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        -4° to 392°F (°C -20 to 200)
        Valve Body Material
        CF8M Stainless Steel
        Valve Body Style
        Standard Port
        Valve Connection
        Threaded
        Valve PSI
        1000
        Valve Configuration
        3-way Dispenser
        Valve Operation
        Manual
