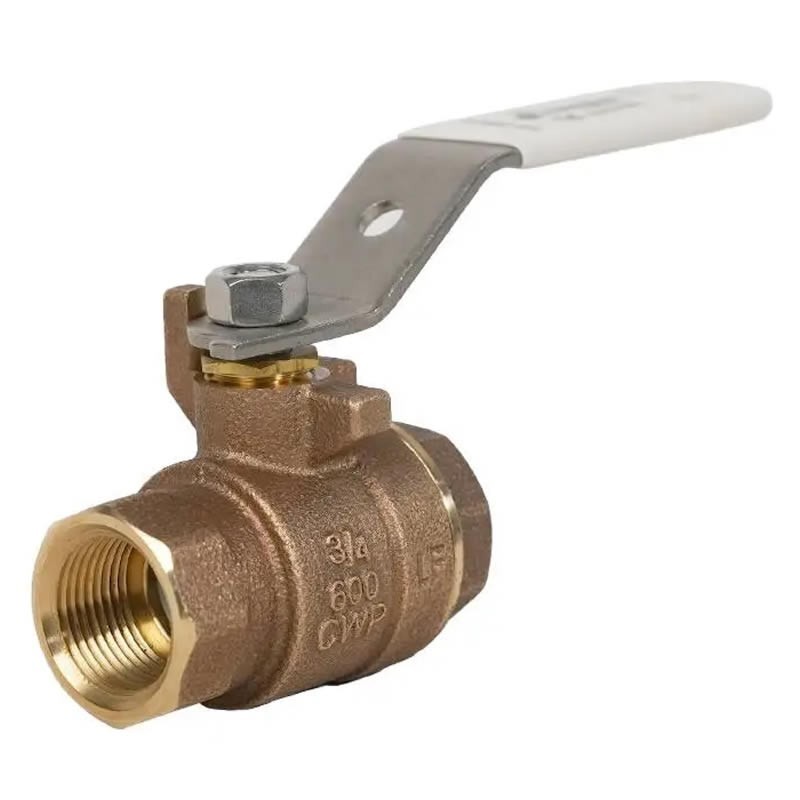

Jomar T-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Threaded Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
T-200CSSG
Review (0)
      Jomar T-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Threaded Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
      Jomar T-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Threaded Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
      Jomar T-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port NPT
      Move your mouse over image or click to enlarge

      The Jomar T-200CSSG Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, NPT threaded Connection, Full Port and up 600 CWP, 29 in-HG Vacuum Rating and Heavy Commercial Pattern.

      Available in sizes from 1/4" to 3".

      Jomar Valve
      $27.85
      $38.15
      Save 27%
      Quantity :

      FREE Shipping Order before 11:00 on Monday and receive it between 7/17/25 and 7/21/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar T-200CSSG Lead Free Bronze Ball Valve Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Heavy Commercial Pattern
        • Blow-out Proof Stem
        • 100% Leak Tested
        • IAPMO Certified: NSF 61 & NSF 372 & NSF 14
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Threads According to ANSI B1.20.1
        Summary Specifications (Please see attachment for full specs.)
        Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3"
        Part number 200-401SSG 200-402SSG 200-403SSG 200-404SSG 200-405SSG 200-406SSG 200-407SSG 200-408SSG 200-409SSG 200-410SSG
        Pressure/Temperature Rating 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 500 PSIG at Ambient 500 PSIG at Ambient
        Weight (lbs.)
        		 .58 .54 .72 1.1 1.8 2.4 3.8 6 14.5 20
        Certifications/Approvals
        • *IAPMO Certified
          • NSF/ANSI/CAN 61-8 2018
          • NSF/ANSI 372-2016
          • IAPMO/ANSI Z1157-2014
          • ASME A112.4.14/CSA B125.14:22
          • NSF/ANSI 14-2016
        • Threads According to ANSI B1.20.1
        • Meets MSS SP-110
        View Detailed Valve Specifications
        Jomar T-200CSSG Specs.
        Jomar T-200CSSG

      • Jomar Valve
        T-200CSSG

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3"
        Valve Temperature Range
        Up to 375°F (°C 190)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        NPT
        Valve PSI
        100 to 600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
