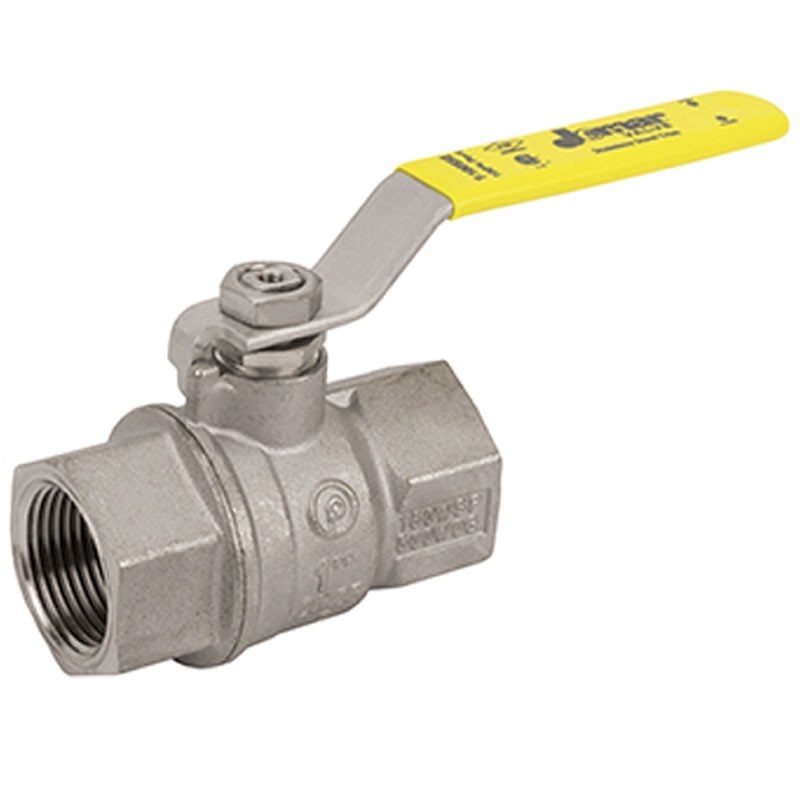

Jomar T-100SSE Brass Ball valve 2 Piece Full Port Threaded Connection Stainless Steel Trim 600 WOG and Triple Sealing Stem
T-100SSE
The Jomar T-100SSE Bronze Ball Valve features Stainless Steel trim, T.E.A. Ternary Eco Alloy® Coated Body, which Prevents Dezincification and Galvanic Corrosion, Locking Handle, 2 Piece, Full port, Threaded Connection and up 600 WOG, Triple Sealing Stem with 2 FKM O-Rings and 2nd Generation PTFE Seal, Leakproof Stem with Lifetime Warranty and Blow-Out Proof Stem.
Available in sizes from 1/4" to 3".
$33.24
$42.07
Save 21%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar T-100SSE in the Jomar Valve's T-100 series, 2 piece full port bronze Ball Valve features:
- The SSE in the model name stands for Stainless Steel Trim. This means the ball and stem are made of 316 stainless steel. This combination of a brass body with a stainless steel trim provides excellent corrosion resistance, making the valve suitable for a wider range of applications than a standard brass-only valve
- T.E.A. Ternary Eco Alloy® Coated Body, which Prevents Dezincification and Galvanic Corrosion. This is a significant feature, as dezincification—the leaching of zinc from the brass alloy—can weaken a valve over time, particularly in certain water conditions.
- Locking Handle
- Triple Sealing Stem with 2 FKM O-Rings and 2nd Generation PTFE Seal. This sealing system ensures a leakproof stem and contributes to the valve's lifetime warranty against stem leakage. The use of PTFE G300 for the seats and packing provides superior performance and wider operating temperature ranges compared to standard PTFE.
- Blow-out Proof Stem
- 100% Leak Tested
- Leakproof Stem - Lifetime Warranty
- 100% Made in Italy
- 29 in-Hg Vacuum Rating
The Jomar T-100SSE heavy-duty construction and certifications make it a common choice for projects that require a high level of reliability and safety.
Summary Specifications (Please see attachment for full specs.)
Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" Part number 100-501 100-502 100-503 100-504 100-505 100-506 100-507 100-508 100-509 100-510 Valve Seat Rating (WOG) 600 600 600 500 500 500 500 500 400 400 Weight (lbs.) .35 .35 .54 .86 1.58 2.41 3.68 5.08 11.5 17.5 Pressure/Temperature Rating
- 1/4” - 3/4“ 600 WOG, 1-2” 500 WOG, 2-1/2” - 4” 400 WOG - 150 WSP
- Maximum Temperature -40˚F to 325˚F (-40˚ to 617˚ C)
Certifications/Approvals
- CSA Certified: ASME B16.33 (125 PSIG) (1/2” - 2”), CGA 3.16 (125 PSIG) (1/4” - 2”)
- ANSI B1.20.1 (Standards for National Pipe Taper (NPT) threads)
- MSS SP-110
View Detailed Valve Specifications
Jomar T-100SSE Specs. Jomar T-100SSE- T-100SSE
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3"
- Valve Temperature Range
- Up to 344°F (°C 173)
- Valve Body Material
- Brass
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 600
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
