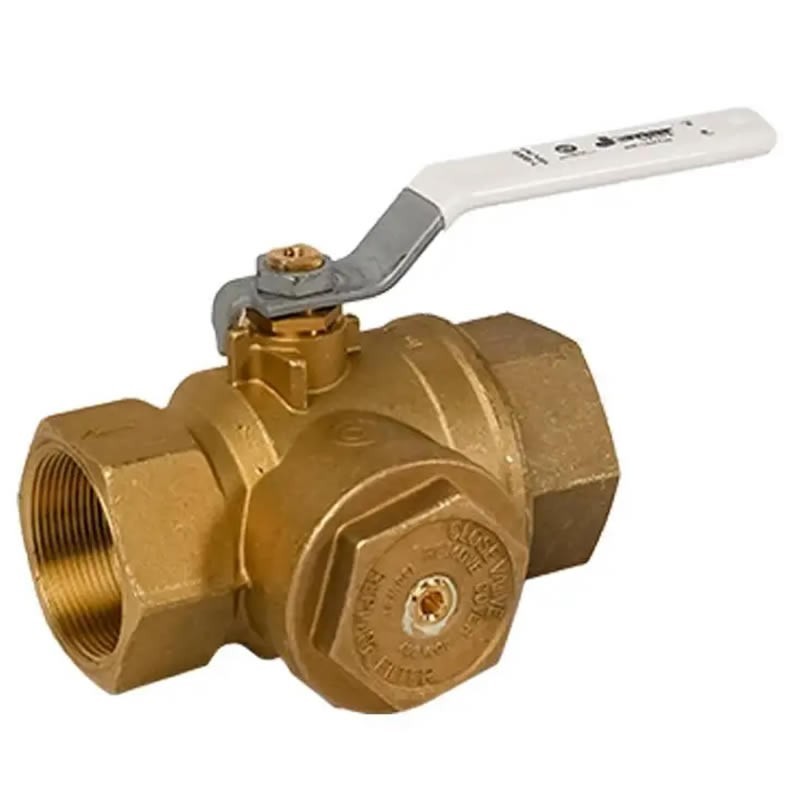

Jomar T-100FBG Lead Free Filter Ball 3-Way Full Port Threaded Connection with Integrated Strainer 400 WOG
T-100FBG
The Jomar T-100FBG is a Lead Free Filter Ball® | Three-Way, Full Port, Threaded Connection with Integrated Strainer and 400 WOG. Features a Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 3 Piece, Leakproof stem with a Lifetime Warranty and a Reversible Handle.
Available in sizes from 1/2" to 2".
$50.03
$67.61
Save 26%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar T-100FBG Filter Ball 3-Way Full Port Threaded Connection features:
- Dezincification Resistant Brass Alloy
- Three-Way Ball Valve
- Triple Sealing Stem with 2 FKM O-Rings and Teflon® Seal
- Blow-out Proof Stem
- Shipped Standard with 304 SS 28 Mesh Screen, Available Mesh Screens: 40, 60, 80, 100
- Reversible Handle
- 100% Leak Tested
- 100% Made in Italy
- Leakproof Stem - Lifetime Warranty
- Wetted Surfaces Contain Less than .25% Lead Content
- Threads According to ANSI B1.20.1
- Valve Seat Rating: 400 WOG - 150 WSP
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Part number 100-833G 100-834G 100-835G 100-836G 100-837G 100-8348 Weight (lbs.) 1.1 1.1 2.7 4.5 6.5 12 Certifications/Approvals
- NSF/ANSI/CAN 61-G
- ANSI B1.20.1
View Detailed Valve Specifications
Jomar T-100FBG Specs. Jomar T-100FBG- T-100FBG
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- Up to 375°F (°C 190)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 400
- Valve Configuration
- 3-way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar T-100FBG is a Lead Free Filter Ball® | Three-Way, Full Port, Threaded Connection with Integrated Strainer and 400 WOG. Features a Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 3 Piece, Leakproof stem with a Lifetime Warranty and a Reversible Handle.
Available in sizes from 1/2" to 2".
