Jomar T-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Threaded Connection Stainless Steel Trim Locking Handle 600 WOG
T-100CSSG-LH
Review (0)
      Jomar T-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Threaded Connection Stainless Steel Trim Locking Handle 600 WOG
      Jomar T-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Threaded Connection Stainless Steel Trim Locking Handle 600 WOG

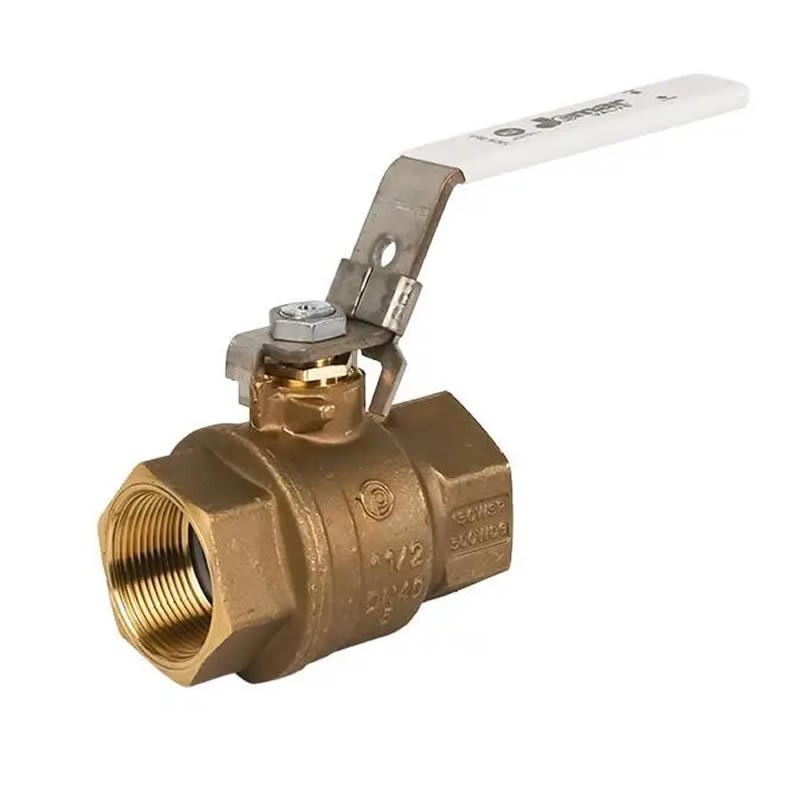

      Jomar T-100CSSG-LH Bronze Ball Valve Lead Free 2 Piece Threaded
      Move your mouse over image or click to enlarge

      The Jomar T-100CSSG-LH Lead Free Bronze Ball Valve features Dezincification Resistant Brass Alloy, Locking Handle, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, threaded Connection, Full Port and up 600 WOG, 29 in-HG Vacuum Rating and Leakproof Stem with Lifetime Warranty.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $34.76
      $46.35
      Save 25%
      Quantity :

      FREE Shipping Order before 11:00 on Monday and receive it between 8/21/25 and 8/25/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar T-100CSSG-LH Lead Free Bronze Ball Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Locking handle
        • Triple Sealing Stem With 2 FKM O-Rings and PTFE G300 Seal
        • Blow-out Proof Stem
        • 100% Leak Tested
        • 100% Made in Italy
        • Leakproof stem - Lifetime Warranty
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Threads According to ANSI B1.20.1
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-403SSG-LH 100-404SSG-LH 100-405SSG-LH 100-406SSG-LH 100-407SSG-LH 100-408SSG-LH
        Pressure/Temperature Rating 600 WOG up to 325°F 600 WOG up to 325°F 500 WOG up to 344°F 500 WOG up to 344°F 500 WOG up to 344°F 500 WOG up to 344°F
        Weight (lbs.)
        		 .42 .76 1.25 2 3.1 4.8
        Certifications/Approvals
        • NSF 372
        • NSF 61-8
        • NSF 61 - Annex G
        • MSS SP-110
        • ANSI B1.20.1
        • Meets IS0 6509
        View Detailed Valve Specifications
        Jomar T-100CSSG-LH Specs.
        Jomar T-100CSSG-LH

      • Jomar Valve
        T-100CSSG-LH

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 344°F (°C 173)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Threaded
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual

      • No customer reviews for the moment.
