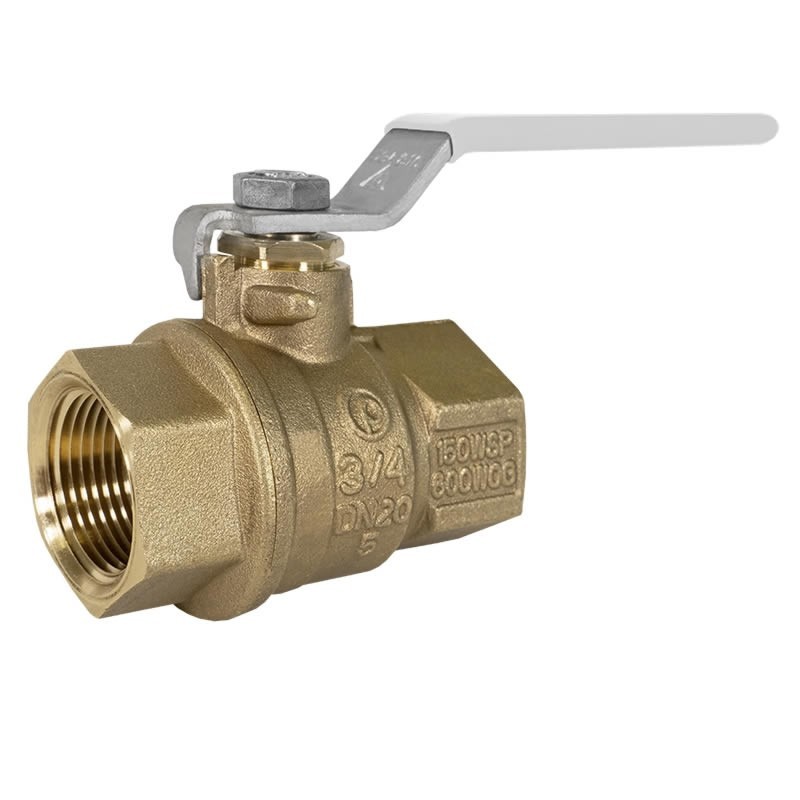

Jomar T-100CSSG Lead Free Brass Ball Valve 2 Piece Full Port Threaded Connection Stainless Steel Trim 600 WOG
T-100CSSG
The Jomar T-100CSSG Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, threaded Connection, Full Port and up 600 WOG, 29 in-HG Vacuum Rating.
Available in sizes from 1/2" to 2".
$26.85
$36.78
Save 27%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar T-100CSSG Lead Free Bronze Ball Valve Valve features:
- Dezincification Resistant Lead Free Bronze
- Stainless Steel ball and stem
- Blow-out Proof Stem
- 100% Leak Tested
- 100% Made in Italy
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
- Threads According to ANSI B1.20.1
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Part number 100-403SSG 100-404SSG 100-405SSG 100-406SSG 100-407SSG 100-408SSG Pressure/Temperature Rating 600 WOG up to 325°F 600 WOG up to 325°F 600 WOG up to 325°F 600 WOG up to 325°F 500 WOG up to 350°F 500 WOG up to 3050°F Weight (lbs.) .42 .76 1.25 2 3.1 4.8 Certifications/Approvals
- NSF 372
- NSF 61-8
- NSF 61 - Annex G
- MSS SP-110
- ANSI B1.20.1
- Meets IS0 6509
View Detailed Valve Specifications
Jomar T-100CSSG Specs. Jomar T-100CSSG- T-100CSSG
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- Up to 375°F (°C 190)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 600
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar T-100CSSG Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, threaded Connection, Full Port and up 600 WOG, 29 in-HG Vacuum Rating.
Available in sizes from 1/2" to 2".
