Jomar T-100CG-LH Lead Free Brass Ball Valve 2 Piece Full Port Threaded Connection Locking Handle 600 WOG Leakproof Stem
T-100CG-LH
Review (0)
      Jomar T-100CG-LH Lead Free Brass Ball Valve 2 Piece Full Port Threaded Connection Locking Handle 600 WOG Leakproof Stem
      Jomar T-100CG-LH Lead Free Brass Ball Valve 2 Piece Full Port Threaded Connection Locking Handle 600 WOG Leakproof Stem

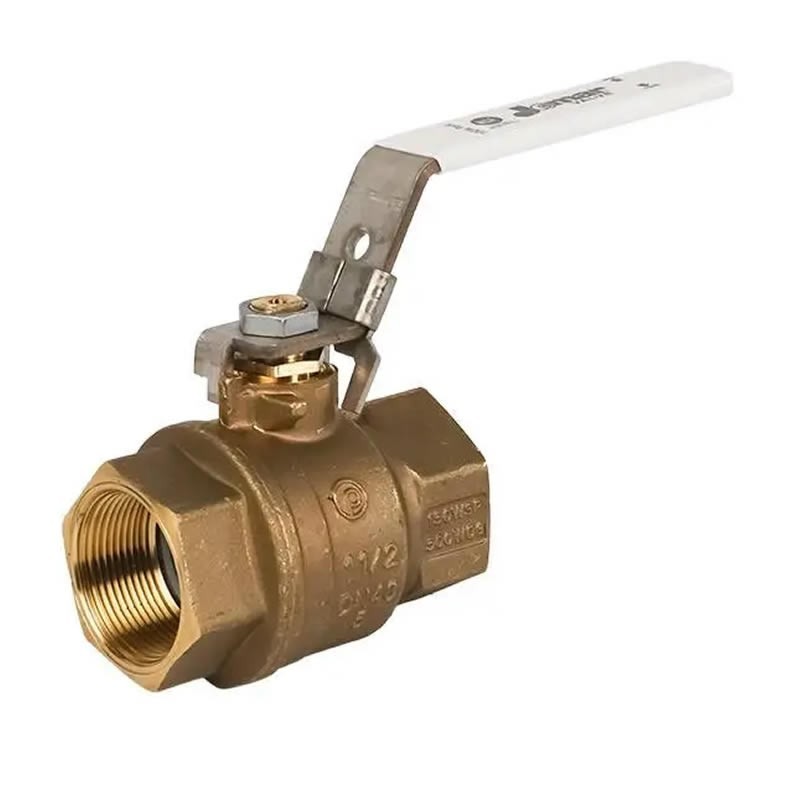

      Jomar T-100CG-LH Series Lead Free Brass Ball Valve with Lock handle
      Move your mouse over image or click to enlarge

      The Jomar Valve T-100CG-LH series Lead Free Brass Ball Valve features Dezincification Resistant Brass Alloy, Blow-out Proof Stem, 2 Piece, NPT threaded Connection, Full Port and up 600 WOG with Locking Handle. Leak proof lifetime warranty, NSF 61/372 certified for potable water systems.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $22.35
      $30.62
      Save 27%
      Quantity :

      FREE Shipping Order before 11:00 on Thursday and receive it between 7/22/25 and 7/24/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar T-100CG-LH Lead Free Brass Ball Valve features:

        • Dezincification Resistant Brass Alloy
        • Locking Handle
        • Triple Sealing Stem with 2 FKM O-rings and PTFE G300 Seal
        • Blow-out Proof Stem
        • 100% Leak Tested
        • Leakproof Stem - Lifetime Warranty
        • 100% Made in Italy
        • NSF 61 and NSF 372 Certified
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-403G-LH 100-404G-LH 100-405G-LH 100-406G-LH 100-407G-LH 100-408G-LH
        PSI Seat Rating (WOG) 600 600 500 500 500 500
        Max Temperature
        		 325° F 325° F 350° F 350° F 350° F 350° F
        Weight (lbs.)
        		 .46 .77 .8 1.95 3.18 4.8
        Certifications/Approvals
        • CSA Certified
          • ANSI Z21.15 (.5 PSIG)
          • ASME B16.44 (5 PSIG)
          • CGA CR91 (5 PSIG)
        • NSF/ANSI/CAN 61-G
        • Threads According to ANSI B1.20.1
        • Meets MSS SP-110
        • Meets ISO 6509
        View Detailed Valve Specifications
        Jomar T-100CG-LH Specifications
        Jomar T-100CG-LH

      • Jomar Valve
        T-100CG-LH

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 375°F (°C 191)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        FNPT
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
