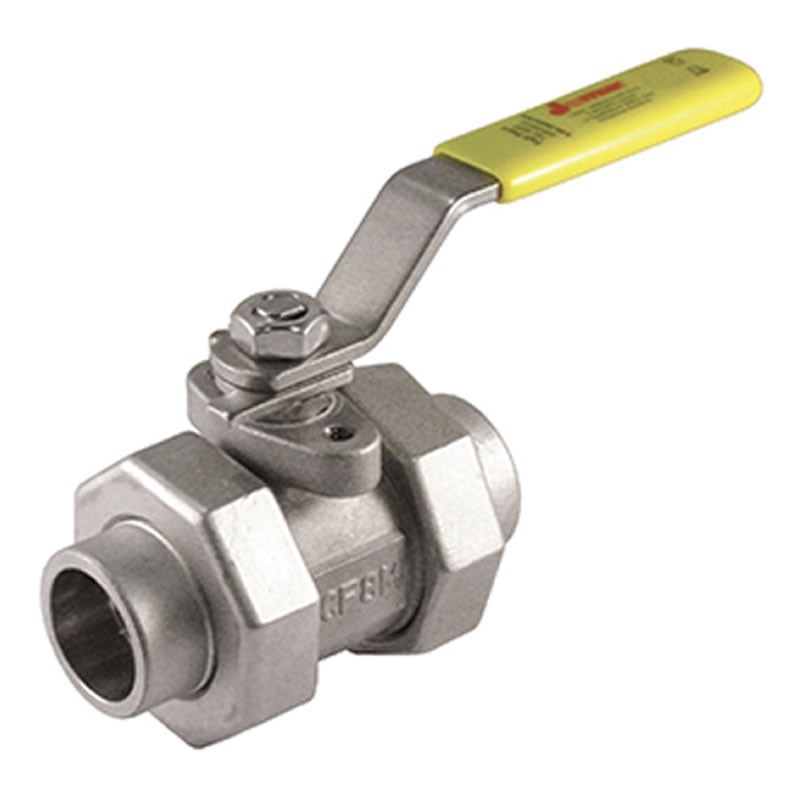

Jomar S-SS-2002N-DUE Stainless Steel Ball Valve 5 Piece Full Port SW Connection Double Union End S-Steel Trim 3000 WOG
S-SS-2002N-DUE
The Jomar S-SS-2002N-DUE Ball Valve features Solid Ball construction, 5 pieces, Ful port, Socket weld connection, Double union End, Stainless Steel Trim and up to 3000 WOG. It also features adjustable stem packing with Blow-out proof stem, 100% Leak Tested, Mounting Pad, Reversible Handle and 29 in-Hg Vacuum Rating.
Available in sizes from 1/2" to 2".
$120.44
$172.05
Save 30%Typically ships within 1-3 business days
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar ball valve S-SS-2002N-DUE with solid ball construction, Double union end, Socket weld connection, 3000 WOG features:
- Solid Ball Construction
- 5 piece construction
- Mounting Pad
- Reversible Handle
- Locking Handle Available
- Adjustable Stem Packing with Blow-Out Proof Stem
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
- Repair Kits Available
- Valve seat Rating: 3000 WOG - 150 WSP
Approvals
UL Listed
- MHKZ - Manual Valves
- YQNZ - Compressed Gas Shut-Off Valves
- YRBX - Flammable Liquid Shut-Off Valves
- YRPV - Gas Shut-Off Valves
- YSDT - LP Gas Shut-Off Valves
- YQAR - Anhydrous Ammonia Shut-Off Valves
Others
- API-598
- ANSI B16.11
- MSS SP-110
- NACE Certified
- Buy American Act Compliant
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Part number 101-983 101-984 101-985 101-986 101-987 101-988 Torque 65 100 120 210 300 400 Weight (lbs.) 1.7 2.5 3.75 5.6 8.75 13 View Detailed Valve Specifications
Jomar S-SS-2002N-DUE Specifications Jomar S-SS-2002N-DUE- S-SS-2002N-DUE
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -20° to 446° F (°C-29 to 230)
- Valve Body Material
- CF8M Stainless Steel
- Valve Body Style
- Full Port
- Valve Connection
- SW Ends
- Valve PSI
- 3000
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar S-SS-2002N-DUE Ball Valve features Solid Ball construction, 5 pieces, Ful port, Socket weld connection, Double union End, Stainless Steel Trim and up to 3000 WOG. It also features adjustable stem packing with Blow-out proof stem, 100% Leak Tested, Mounting Pad, Reversible Handle and 29 in-Hg Vacuum Rating.
Available in sizes from 1/2" to 2".
