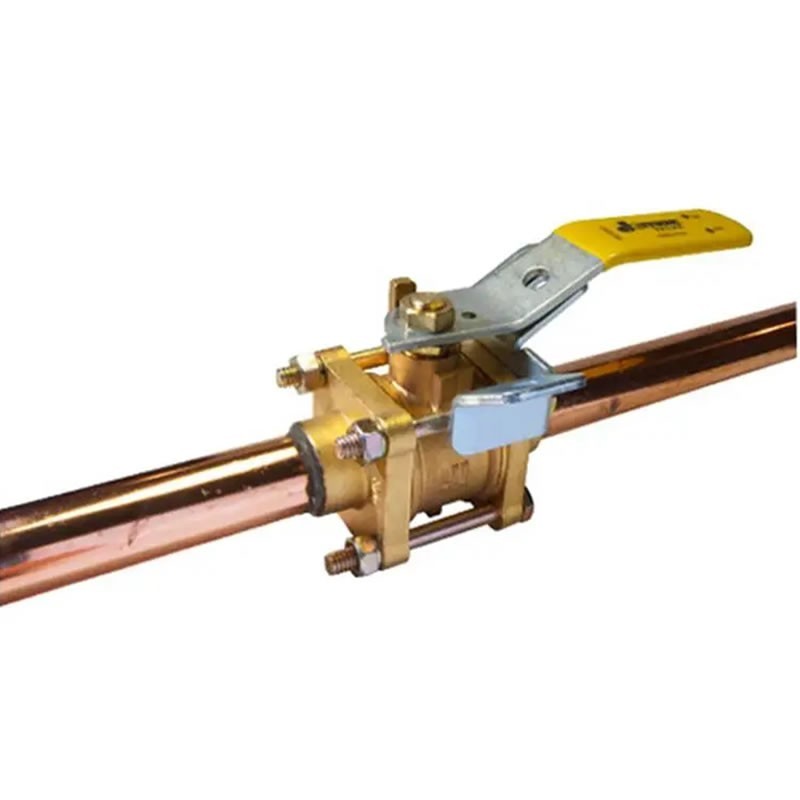

Jomar S-650-CE-4B Medical Gas Ball Valve 3 Piece 4 Bolt Copper Stub Connection Oxygen Cleaned for Medical Gas 600 WOG
S-650-CE-4B
The Jomar S-650-CE-4B series Medical Gas Ball Valve is a 3 Piece 4 Bolt, Copper Stub Connection, Oxygen Cleaned for Medical Gas and 600 WOG. The valve features “K” Copper Tubing Extensions Silver Brazed, NFPA-99C Standard and 100% Leak Tested.
Available in sizes 1/2" to 2".
$174.32
$245.52
Save 29%Typically ships within 1-3 business days
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar S-650-CE-4B Medical Gas Ball Valve features:
- NFPA-99 Standard
- “K” Copper Tubing Extensions Silver Brazed
- Latch Lock Handle is Standard
- Oxygen Cleaned
- 100% Leak Tested
- 29 in-Hg Vacuum Rating
Valve Seat Rating
- 600 WOG - 150 WSP
Certifications/Approvals
- MSS SP-110
View Detailed Valve Specifications
Jomar S-650-CE-4B Jomar S-650-CE-4B- S-650-CE-4B
Data sheet
- Valve Type
- Medical Gas Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- Up to 375°F (°C 191)
- Valve Body Material
- Brass
- Valve Body Style
- Full Port
- Valve Connection
- Copper Stub
- Valve PSI
- 600
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar S-650-CE-4B series Medical Gas Ball Valve is a 3 Piece 4 Bolt, Copper Stub Connection, Oxygen Cleaned for Medical Gas and 600 WOG. The valve features “K” Copper Tubing Extensions Silver Brazed, NFPA-99C Standard and 100% Leak Tested.
Available in sizes 1/2" to 2".
