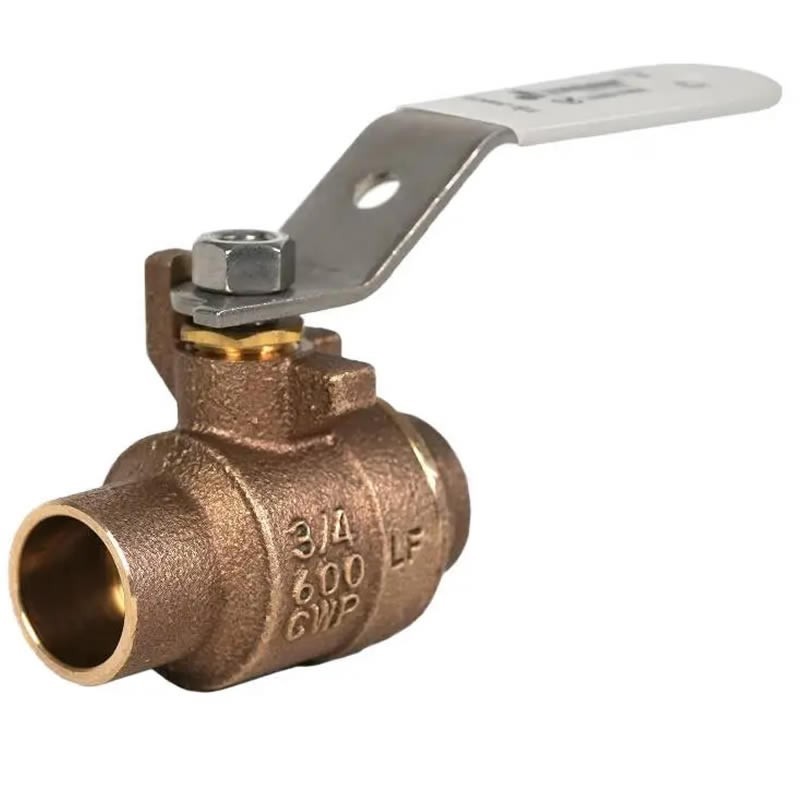

Jomar S-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
S-200CSSG
      Jomar S-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
      Jomar S-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder Stainless Steel Trim 600 CWP 150 WSP Blow-Out Proof Stem
      Jomar S-200CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder

      The Jomar S-200CSSG Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, Solder Connection, Full Port and up 600 CWP, 29 in-HG Vacuum Rating and Heavy Commercial Pattern.

      Available in sizes from 1/4" to 3".

      Jomar Valve
      $30.43
      $43.47
      Save 30%
      Quantity :

      FREE UPS Shipping Order before 11:00 on Wednesday and receive it between 7/27/26 and 7/30/26 with FREE UPS Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE UPS Shipping 4-6 days

      7/27/26 - 7/30/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next (Valve&Actuator + 1-2)

      7/27/26 - 7/28/26

      UPS 2 bus. days 2 bus-days Same day/next (Valve&Actuator + 1-2)

      7/24/26 - 7/27/26

      UPS Next Day - 1 business Day Ships same day/next (Valve&Actuator + 1-2)

      7/23/26 - 7/24/26

      Carrier: FREE UPS Shipping

      Description: 4-6 days

      Estimated delivery:
      7/27/26 - 7/30/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/27/26 - 7/28/26

      Carrier: UPS 2 bus. days

      Description: 2 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/24/26 - 7/27/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/23/26 - 7/24/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar S-200CSSG Lead Free Bronze Ball Valve Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Stainless Steel ball and stem
        • Heavy Commercial Pattern
        • Blow-out Proof Stem
        • 100% Leak Tested
        • IAPMO Certified: NSF 61 & NSF 372 & NSF 14
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Soder Connection
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3"
        Part number 200-413SSG 200-414SSG 200-415SSG 200-416SSG 200-417SSG 200-418SSG 200-419SSG 200-420SSG
        Pressure/Temperature Rating 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 100 PSIG at 300°F
        600 PSIG at Ambient        		 500 PSIG at Ambient 500 PSIG at Ambient
        Weight (lbs.)
        		 .68 1.16 1.9 2.4 4 6.5 14 20
        Certifications/Approvals

        *IAPMO Certified

        • NSF/ANSI/CAN 61-8 2018
        • NSF/ANSI 372-2016
        • IAPMO/ANSI Z1157-2014
        • ASME A112.4.14/CSA B125.14:22
        • NSF/ANSI 14-2016

        Approvals

        • ASME/ANSI B16.18
        • Meets MSS SP-110
        View Detailed Valve Specifications
        Jomar S-200CSSG Specs.
        Jomar S-200CSSG

      • Jomar Valve
        S-200CSSG

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5, .75, .125, 1", 1.5, 1.25, 2", 2.5, 3"
        Valve Temperature Range
        Up to 375°F (°C 190)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        100 to 600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
        Valve Seat
        PTFE
