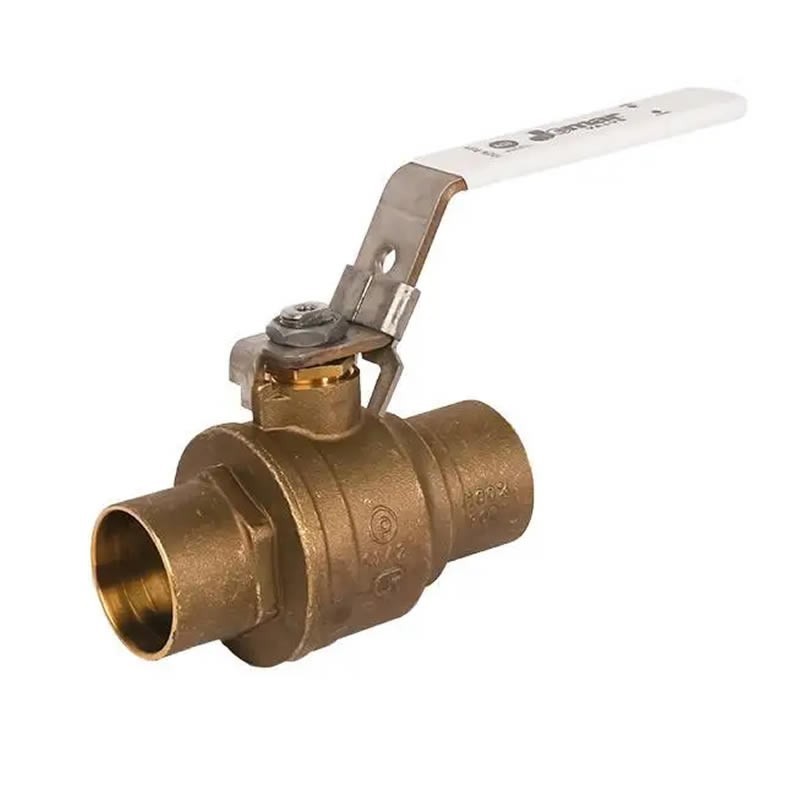

Jomar S-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Solder Connection Stainless Steel Trim Locking Handle 600 WOG
S-100CSSG-LH
      Jomar S-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Solder Connection Stainless Steel Trim Locking Handle 600 WOG
      Jomar S-100CSSG-LH Lead Free Brass Ball Valve 2 Piece Solder Connection Stainless Steel Trim Locking Handle 600 WOG
      Jomar S-100CSSG-LH Lead Free Bronze Ball Valve 2 Piece Solder

      The Jomar S-100CSSG-LH Lead Free Bronze Ball Valve features Dezincification Resistant Brass Alloy, Locking Handle, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, Solder Connection, Full Port and up 600 WOG, 29 in-HG Vacuum Rating, Stainless Steel Latch Locking Handle and Leakproof Stem with Lifetime Warranty.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $37.45
      $50.61
      Save 26%
      Quantity :

      FREE Shipping Order before 11:00 on Friday and receive it between 6/10/26 and 6/12/26 with FREE Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE Shipping 3-5 days

      6/10/26 - 6/12/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Carrier: FREE Shipping

      Description: 3-5 days

      Estimated delivery:
      6/10/26 - 6/12/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar S-100CSSG-LH Lead Free Bronze Ball Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Stainless Steel Latch Locking Handle
        • Triple Sealing Stem With 2 FKM O-Rings and PTFE G300 Seal
        • Blow-out Proof Stem
        • 100% Leak Tested
        • 100% Made in Italy
        • Leakproof stem - Lifetime Warranty
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Threads According to ANSI B1.20.1
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-413SSG-LH 100-414SSG-LH 100-415SSG-LH 100-416SSG-LH 100-417SSG-LH 100-418SSG-LH
        Pressure/Temperature Rating 600 WOG up to 325°F 600 WOG up to 325°F 500 WOG up to 344°F 500 WOG up to 344°F 500 WOG up to 344°F 500 WOG up to 344°F
        Weight (lbs.)
        		 .42 .76 1.25 2 3.1 4.8
        Certifications/Approvals
        • NSF 372
        • NSF 61-8
        • NSF 61 - Annex G
        • MSS SP-110
        • ASME/ANSI B16.18
        • Meets IS0 6509
        View Detailed Valve Specifications
        Jomar S-100CSSG-LH Specs.
        Jomar S-100CSSG-LH

      • Jomar Valve
        S-100CSSG-LH

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 344°F (°C 173)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
        Valve Seat
        PTFE
