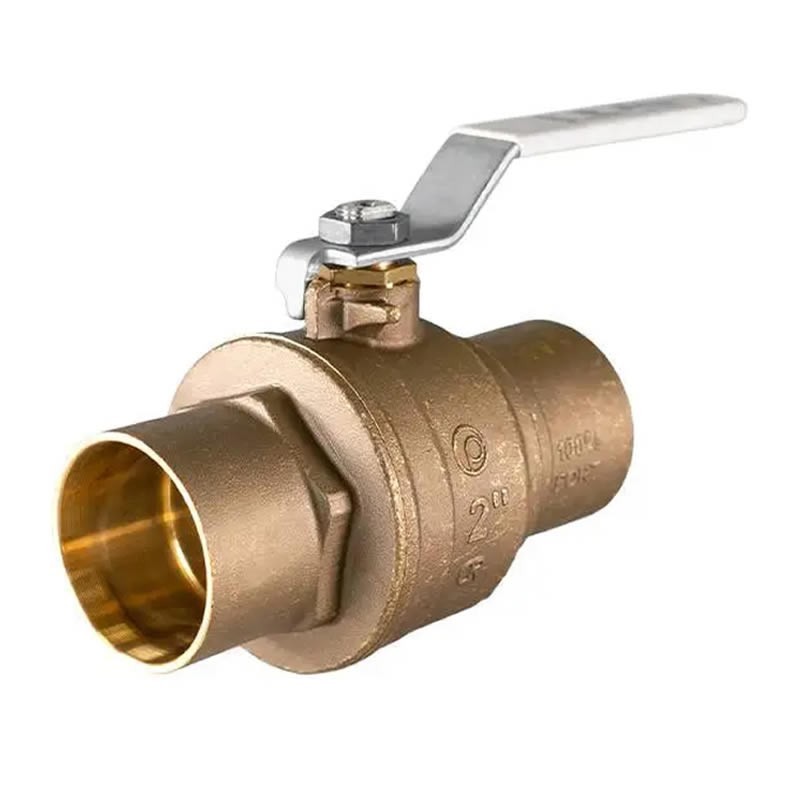

Jomar S-100CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 WOG with Blow out proof stem
S-100CSSG
Review (0)
      Jomar S-100CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 WOG with Blow out proof stem
      Jomar S-100CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder S-Steel Trim 600 WOG with Blow out proof stem
      Jomar S-100CSSG Bronze Ball Valve Lead Free 2 Piece Full Port Solder
      Move your mouse over image or click to enlarge

      The Jomar S-100CSSG Lead Free Bronze Ball Valve features Dezincification Resistant Lead Free Bronze, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, Solder Connection, Full Port and up 600 WOG, 29 in-HG Vacuum Rating.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $26.85
      $36.78
      Save 27%
      Quantity :

      FREE Shipping Order before 11:00 on Monday and receive it between 7/31/25 and 8/4/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar S-100CSSG Lead Free Bronze Ball Valve Valve features:

        • Dezincification Resistant Lead Free Bronze
        • Triple Sealing Stem with 2 FKM O-Rings and PTFE G300 Seal
        • Stainless Steel ball and stem
        • Blow-out Proof Stem
        • Leakproof Stem - Lifetime Warranty
        • 100% Leak Tested
        • 100% Made in Italy
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-413SSG 100-414SSG 100-415SSG 100-416SSG 100-417SSG 100-418SSG
        Pressure/Temperature Rating 600 WOG up to 325°F 600 WOG up to 325°F 600 WOG up to 325°F 600 WOG up to 325°F 500 WOG up to 350°F 500 WOG up to 3050°F
        Weight (lbs.)
        		 .42 .76 1.25 2 3.1 4.8
        Certifications/Approvals
        • NSF 372
        • NSF 61-8
        • NSF 61 - Annex G
        • MSS SP-110
        • ASME/ANSI B16.18
        • Meets IS0 6509
        View Detailed Valve Specifications
        Jomar S-100CSSG Specs.
        Jomar S-100CSSG

      • Jomar Valve
        S-100CSSG

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 375°F (°C 190)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
