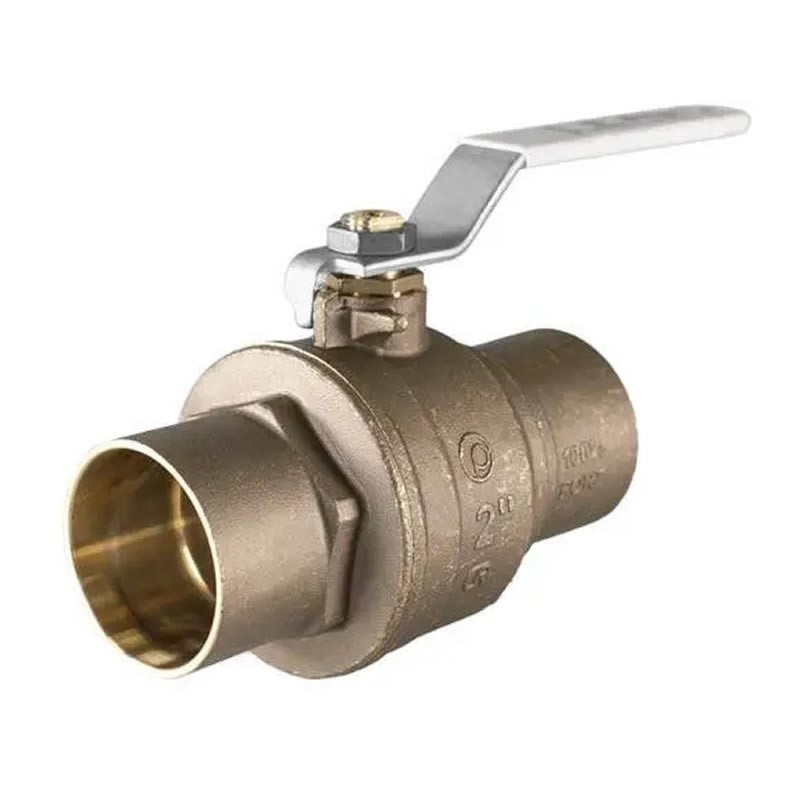

Jomar S-100CG Lead Free Brass Ball Valve DZR 2 Piece Full Port Solder Connection 600 WOG Blow-Out Proof Stem
S-100CG
The Jomar Valve S-100CG series Lead Free Brass Ball Valve features Dezincification Resistant Brass Alloy, Blow-out Proof Stem, 2 Piece, Solder Connection, Full Port with up to 600 WOG. Leak proof stem lifetime warranty, NSF 61/372 certified for potable water systems.
Available in sizes from 1/2" to 4".
$16.43
$21.06
Save 22%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar S-100CG Lead Free Brass Ball Valve features:
- Dezincification Resistant Brass Alloy
- Triple Sealing Stem with 2 FKM O-rings and PTFE G300 Seal
- Blow-out Proof Stem
- 100% Leak Tested
- Leakproof Stem - Lifetime Warranty
- 100% Made in Italy
- NSF 62 and NSF 372 Certified
- 29 in-Hg Vacuum Rating
- Wetted Surfaces Contain Less than .25% Lead Content
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" 2 1/2" 3" 4" Part number 100-413G 100-414G 100-415G 100-416G 100-417G 100-418G 100-416G 100-417G 100-418G PSI Seat Rating (WOG) 600 600 500 500 500 500 400 400 400 Max Temperature 325° F 325° F 350° F 350° F 350° F 350° F 375° F 375° F 375° F Weight (lbs.) .46 .77 .8 1.95 3.18 4.8 8.5 12.5 24 Certifications/Approvals
- NSF
- NSF 372
- NSF 61-8
- NSF 61 - Annex G
- ASME/ANSI B16.18
- Meets MSS SP-110
- Meets ISO 6509
View Detailed Valve Specifications
Jomar S-100CG Detailed Specifications Jomar S-100CG- S-100CG
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2" 2.5 (2 1/2") 3" 4"
- Valve Temperature Range
- Up to 375°F (°C 191)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Solder
- Valve PSI
- 600
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar Valve S-100CG series Lead Free Brass Ball Valve features Dezincification Resistant Brass Alloy, Blow-out Proof Stem, 2 Piece, Solder Connection, Full Port with up to 600 WOG. Leak proof stem lifetime warranty, NSF 61/372 certified for potable water systems.
Available in sizes from 1/2" to 4".
