Jomar S-100CG-IH Lead Free Brass Ball Valve DZR 2 Piece Full Port Solder Connection 600 WOG Blow-Out Proof Stem Insulated Handle
S-100CG-IH
Review (0)
      Jomar S-100CG-IH Lead Free Brass Ball Valve DZR 2 Piece Full Port Solder Connection 600 WOG Blow-Out Proof Stem Insulated Handle
      Jomar S-100CG-IH Lead Free Brass Ball Valve DZR 2 Piece Full Port Solder Connection 600 WOG Blow-Out Proof Stem Insulated Handle

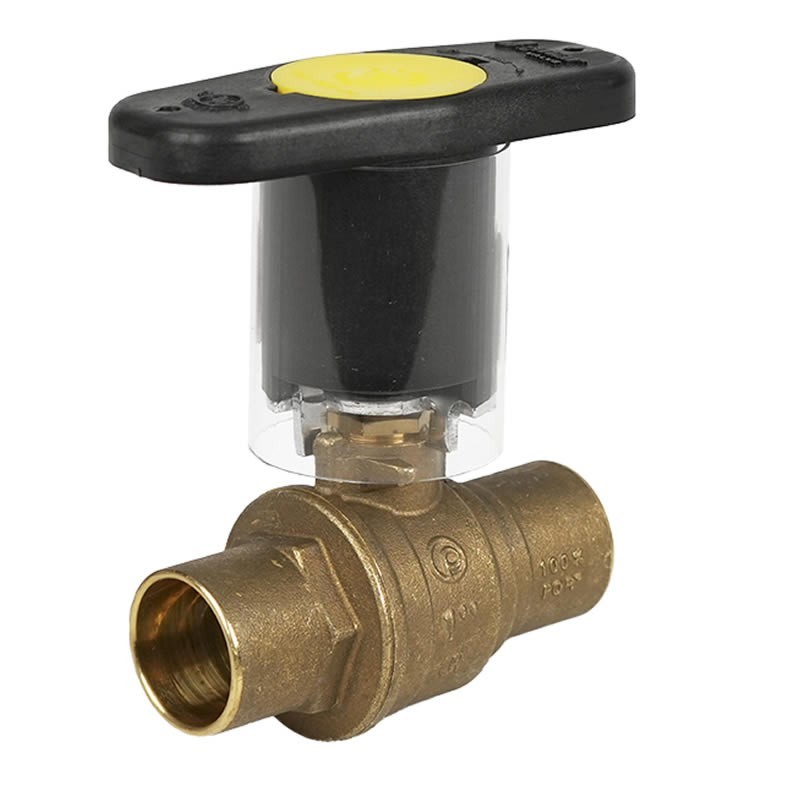

      Jomar S-100CG-IH Series Lead Free Brass Ball Valve Insulated Handle
      Move your mouse over image or click to enlarge

      The Jomar Valve S-100CG-IH series Lead Free Brass Ball Valve features Dezincification Resistant Brass Alloy, Blow-out Proof Stem, 2 Piece, Solder Connection, Full Port with up to 600 WOG with Insulated Handle. Leak proof stem lifetime warranty, NSF 61/372 certified for potable water systems.

      Available in sizes from 1/2" to 2".

      Jomar Valve
      $54.16
      $69.44
      Save 22%
      Quantity :

      FREE Shipping Order before 11:00 on Thursday and receive it between 7/22/25 and 7/24/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar S-100CG-IH Lead Free Brass Ball Valve features:

        • Dezincification Resistant Brass Alloy
        • Insulated Handle
        • Triple Sealing Stem with 2 FKM O-rings and PTFE G300 Seal
        • Blow-out Proof Stem
        • 100% Leak Tested
        • Leakproof Stem - Lifetime Warranty
        • 100% Made in Italy
        • NSF 62 and NSF 372 Certified
        • 29 in-Hg Vacuum Rating
        • Wetted Surfaces Contain Less than .25% Lead Content
        Summary Specifications (Please see attachment for full specs.)
        Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Part number 100-413G-IH 100-414G-IH 100-415G-IH 100-416G-IH 100-417G-IH 100-418G-IH
        PSI Seat Rating (WOG) 600 600 500 500 500 500
        Max Temperature
        		 325° F 325° F 350° F 350° F 350° F 350° F
        Weight (lbs.)
        		 .6 .9 1 2 3.76 5.2
        Certifications/Approvals
        • NSF
          • NSF 372
          • NSF 61-8
          • NSF 61 - Annex G
        • ASME/ANSI B16.18
        • Meets MSS SP-110
        • Meets ISO 6509
        View Detailed Valve Specifications
        Jomar S-100CG-IH Specifications
        Jomar S-100CG-IH

      • Jomar Valve
        S-100CG-IH

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        Up to 375°F (°C 191)
        Valve Body Material
        Brass - Lead Free
        Valve Body Style
        Full Port
        Valve Connection
        Solder
        Valve PSI
        600
        Valve Configuration
        2-Way
        Valve Operation
        Manual
