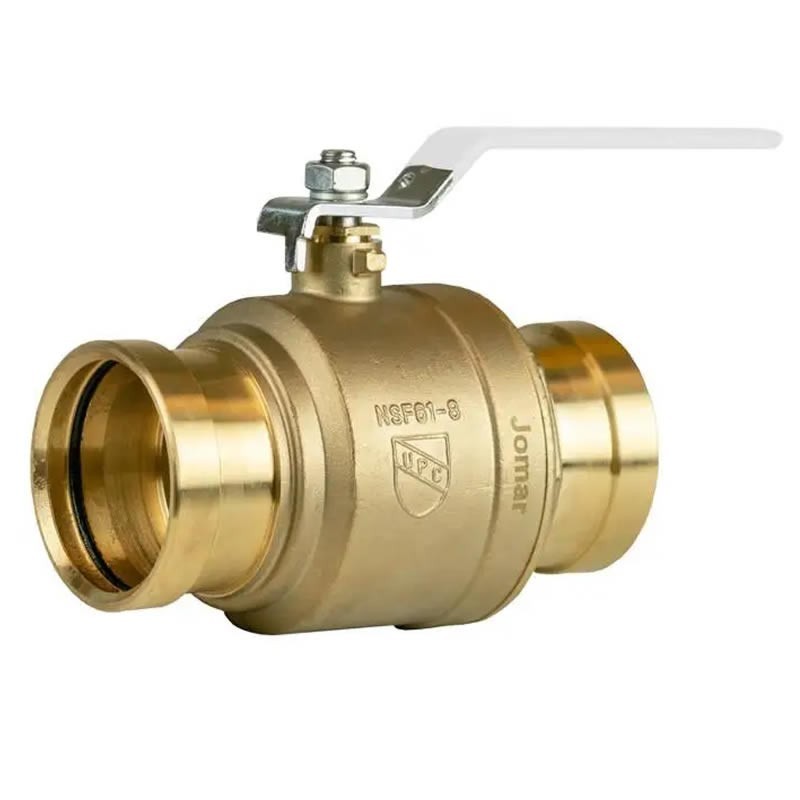

Jomar JP-150G XLC Lead Free Brass Ball Valve 2 Piece Full Port Press XLC Connection Stainless Steel Trim 250 WOG
JP-150G XLC
The Jomar JP-150G XLC Lead Free Ball Valve features Dezincification Resistant Brass alloy, Gland Follower and Single O-Ring Stem Design, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, XLC Connection, Full Port and up 250 WOG.
Available in sizes from 2 1/2" to 4".
$368.76
$526.80
Save 30%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar T-100CSSG Lead Free Ball Valve with XLC Connection features:
- Dezincification Resistant Brass Alloy
- Stainless Steel trim
- Gland Follower and Single O-Ring Stem Design
- Blow-out Proof Stem
- 100% Leak Tested
- Wetted Surfaces Contain Less than .25% Lead Content
- IAPMO Certified - NSF 61 & NSF 372 Certified
- 250 WOG
Summary Specifications (Please see attachment for full specs.)
Size 2 1/2" 3" 4" Part number 150-209XLCG 150-210XLCG 150-211XLCG Weight (lbs.) 4 4 4 Certifications/Approvals
- NSF 61-8
- NSF 372
- Conforms to IAPMO PS 117
Pressure/Temperature Rating
250 WOG/Max. 250°F (121 °C)
View Detailed Valve Specifications
Jomar JP-150G XLC Specs. Jomar JP-150G XLC- JP-150G XLC
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- 2.5 (2 1/2") 3" 4"
- Valve Temperature Range
- Up to 250°F (°C 121)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 250
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar JP-150G XLC Lead Free Ball Valve features Dezincification Resistant Brass alloy, Gland Follower and Single O-Ring Stem Design, Blow-out Proof Stem, 2 Piece, Stainless Steel trim, XLC Connection, Full Port and up 250 WOG.
Available in sizes from 2 1/2" to 4".
