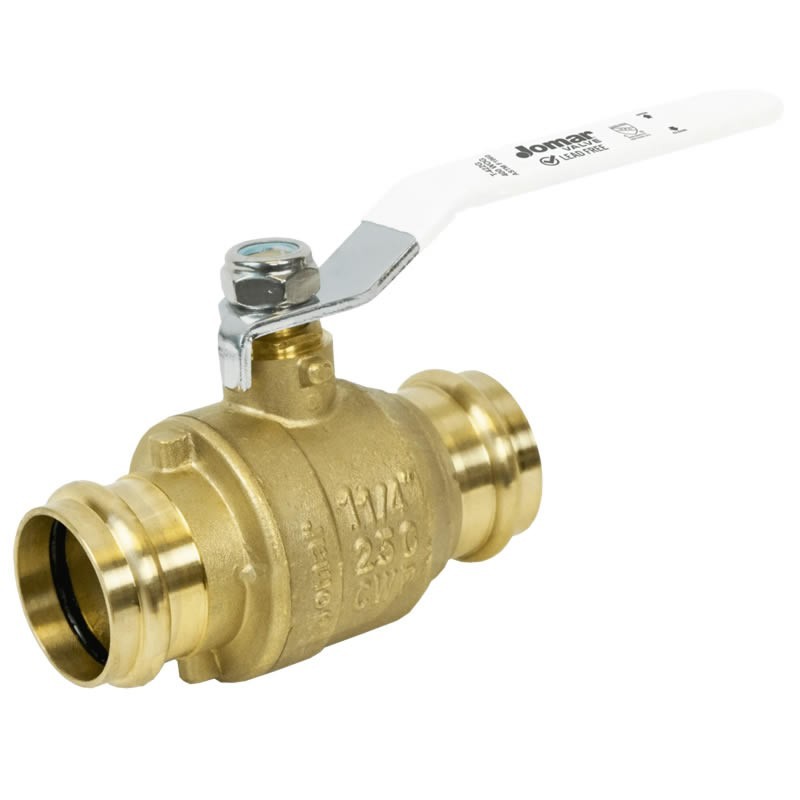

Jomar JP-150G Lead Free Brass Ball Valve 2 Piece Full Port Press Connection with Single O-Ring Stem Design 250 WOG
JP-150G
The Jomar JP-150G Lead Free Bronze Ball Valve features Dezincification Resistant Brass Alloy, Locking Handle, 2 Piece, Press Connection, Full Port and up 250 WOG, Gland Follower and Single O-Ring Stem Design, and Blow-Out Proof Stem.
Available in sizes from 1/2" to 2".
$25.78
$31.83
Save 19%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar JP-150G Lead Free Bronze Ball Valve features:
- Dezincification Resistant Lead Free Bronze
- Latch Locking Handle
- Gland Follower and Single O-Ring Stem Design
- Blow-out Proof Stem
- 100% Leak Tested
- Wetted Surfaces Contain Less than .25% Lead Content
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Part number 150-203G 150-204G 150-205G 150-206G 150-207G 150-208G Weight (lbs.) .9 .86 2 2.08 3.8 6 Pressure/Temperature Rating
- 250 WOG
- Maximum Temperature 250˚F (121˚ C)
Certifications/Approvals
- NSF 61-8
- NSF 372
- NSF 14
- Conforms to IAPMO PS 117
View Detailed Valve Specifications
Jomar JP-150G Specs. Jomar JP-150G- JP-150G
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- Up to 344°F (°C 173)
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Press
- Valve PSI
- 250
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar JP-150G Lead Free Bronze Ball Valve features Dezincification Resistant Brass Alloy, Locking Handle, 2 Piece, Press Connection, Full Port and up 250 WOG, Gland Follower and Single O-Ring Stem Design, and Blow-Out Proof Stem.
Available in sizes from 1/2" to 2".
