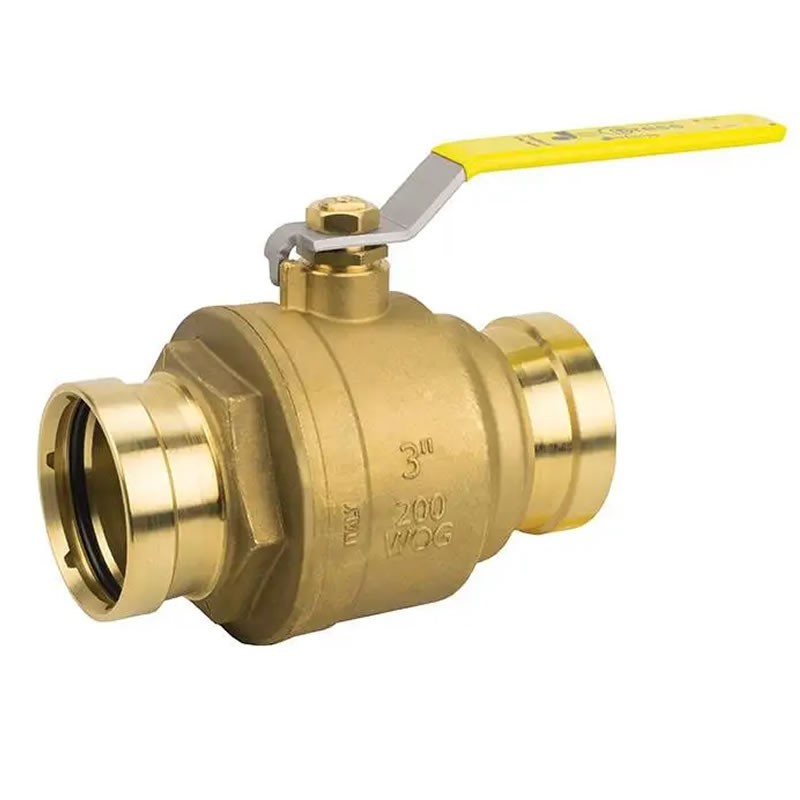

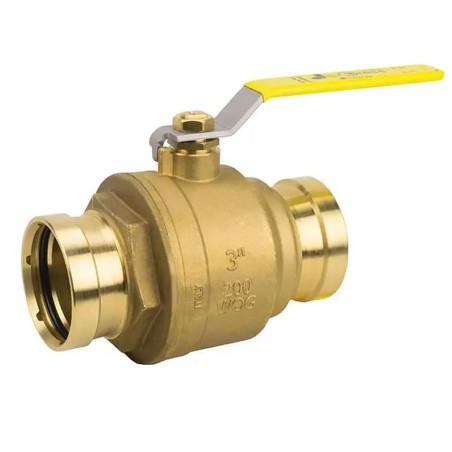

Jomar JP-100 XLC Corrosion Resistant Brass Ball Valve 2 Piece Full Port, Press XLC Connection 200 WOG
JP-100 XLC
The Jomar JP-100 XLC series Corrosion Resistant 2 Piece Brass Ball Valve features, Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE G300 Seal, Blow-out Proof Stem, Press XLC Connection Connection, Full Port with up to 200 WOG. Leak proof stem lifetime warranty.
Available in sizes from 2 1/2" to 4".
$251.92
$419.87
Save 40%Typically ships within 1-3 business days
Security - Rest assured. Our site is encrypted and we do not store any payment information
Free Shipping - Free delivery on most products unless otherwise stated
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar JP-100 XLC connection Corrosion Resistant Brass Ball Valve features:
- Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE Seats
- Body and End Connection: Brass - C35330
- Ball: Chrome Plated Brass - C37700
- Handle and nut: Steel - Geomet® Plated
- Blow-out Proof Stem
- 100% Leak Tested
- Leakproof Stem - Lifetime Warranty
- 100% Made in Italy
- Conforms to IAPMO PS 117
Summary Specifications (Please see attachment for full specs.)
Size 2 1/2" 3" 4" Model 100-209XLC 100-210XLC 100-211XLC PSI Seat Rating (WOG) 200 200 200 Max Temperature 250° F 250° F 250° F Weight (lbs.) 9 14 25 Certifications/Approvals
- Conforms to IAPMO PS 117
View Detailed Valve Specifications
Jomar JP-100 XLC Detailed Specifications Jomar JP-100 XLC- JP-100 XLC
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- 2.5 (2 1/2") 3" 4"
- Valve Temperature Range
- Up to 250°F (°C 121)
- Valve Body Material
- Brass
- Valve Body Style
- Full Port
- Valve Connection
- Press XLC
- Valve PSI
- 200
- Valve Configuration
- 2-Way
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar JP-100 XLC series Corrosion Resistant 2 Piece Brass Ball Valve features, Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE G300 Seal, Blow-out Proof Stem, Press XLC Connection Connection, Full Port with up to 200 WOG. Leak proof stem lifetime warranty.
Available in sizes from 2 1/2" to 4".
