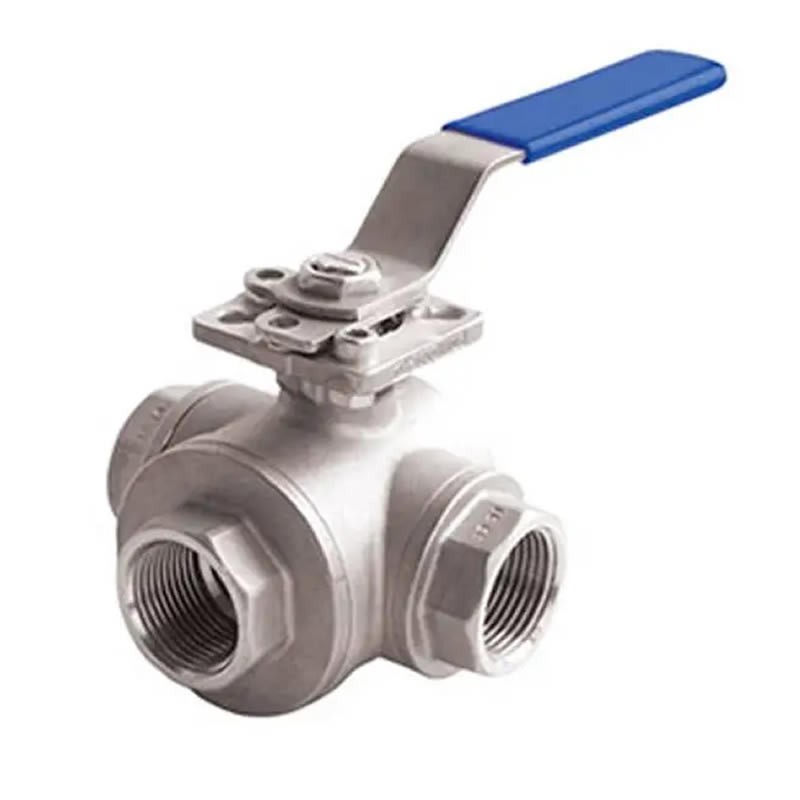

Jomar A850T Direct Mount Ball Valve 3-Way T Port Full Port Threaded Connection ISO Mounting Pad 1000 WOG
A850T
The Jomar A850T Direct mount Stainless Steel Ball Valve is available in T port and features up to 1000 WOG, Full Port, Threaded Connection, ISO 5211 Mounting Pad, Self Adjusting Stem Packing, Four seat standard, blow-Out Proof Stem and a temperature Range of -20˚F to 450˚F (-29˚ to 232˚ C).
Available in sizes from 1/4" to 2".
$204.88
$296.93
Save 31%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Jomar A850T Direct mount Stainless Steel Ball Valve available in L or T ports features:
- Self Adjusting Stem Packing
- ISO 5211 Mounting Pad
- Threaded Connection
- Locking Device May Be Locked in Open or Closed Position
- Four Seat Standard
- Temperature Range: -20˚F to 450˚F (-29˚ to 232˚ C).
- Blow-out Proof Stem
- 100% Leak Tested
- Wetted Surfaces Contain Less than .25% Lead Content
- Threaded According to ANSI B1.20.1
Summary Specifications (Please see attachment for full specs.)
Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Part number A850T-14 A850T-38 A850T-12 A850T-34 A850T-1 A850T-114 A850T-112 A850T-2 Pressure Rating (WOG) 1000 1000 1000 1000 1000 800 800 800 Weight (lbs.) 1.46 1.41 1.25 2 4.81 7.23 11.55 20.89 Certifications/Approvals
- ANSI B1.20.1
Valve Seat Rating
- 1/4” - 1" 1000 WOG, 1-1/4" - 2" 800 WOG
View Detailed Valve Specifications
Jomar A-850TL Specs. Jomar A-850TL- A850T
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -20° to 450° F (°C-29 to 232)
- Valve Body Material
- CF8M Stainless Steel
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 1000
- Valve Configuration
- 3-way T Port
- Valve Operation
- Manual
No customer reviews for the moment.
The Jomar A850T Direct mount Stainless Steel Ball Valve is available in T port and features up to 1000 WOG, Full Port, Threaded Connection, ISO 5211 Mounting Pad, Self Adjusting Stem Packing, Four seat standard, blow-Out Proof Stem and a temperature Range of -20˚F to 450˚F (-29˚ to 232˚ C).
Available in sizes from 1/4" to 2".
