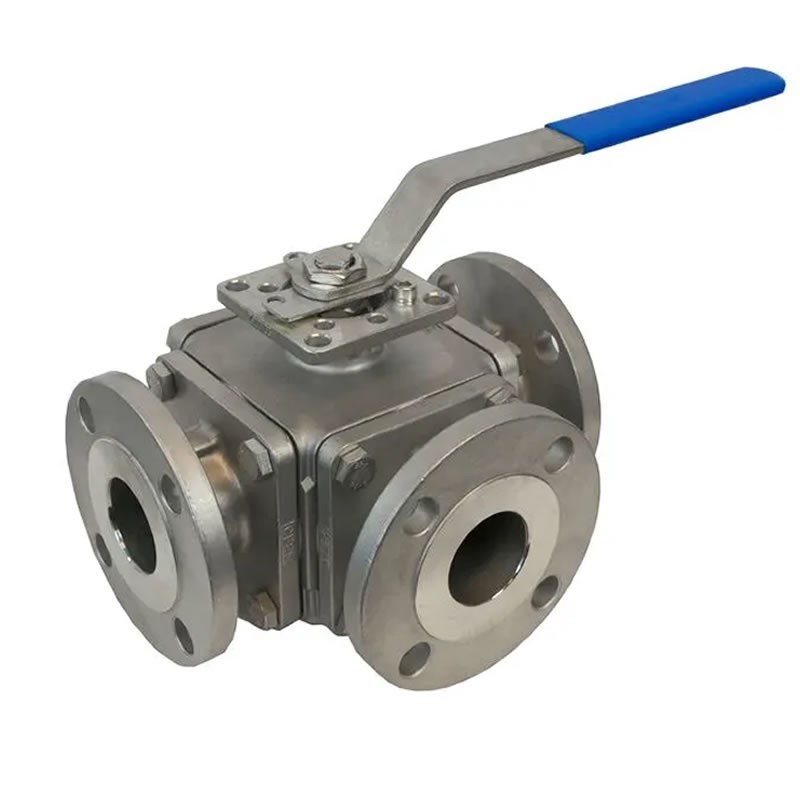

Jomar A766L Ball valve L Port 3-Way Flanged ANSI 150 Connection 200 WOG ASI 316 Stainless Steel Full Port Direct Mount ISO 5211
A-766L
      Jomar A766L Ball valve L Port 3-Way Flanged ANSI 150 Connection 200 WOG ASI 316 Stainless Steel Full Port Direct Mount ISO 5211
      Jomar A766L Ball valve L Port 3-Way Flanged ANSI 150 Connection 200 WOG ASI 316 Stainless Steel Full Port Direct Mount ISO 5211
      Jomar A-766L Ball valve L Port 3-Way Flanged ANSI 150 S-Steel

      The Jomar A766L Stainless Steel L-Port 3-way Ball Valve ANSI 150 flanged Full Port, features Blow-out Proof Stem, 3 Piece, Flange Connection with 200 WOG and includes Handle.

      The Jomar A766L is a high-performance L-Port Ball Valve designed for industrial applications requiring diverting or mixing of media. It is part of Jomar's A766T/L series of direct-mount valves and is 100% Leak Tested. Also available in T port configuration A766T.

      Available in sizes from 1" to 4".

      Jomar Valve
      $747.77
      $1,410.89
      Save 47%
      Quantity :

      FREE UPS Shipping Order before 11:00 on Wednesday and receive it between 7/27/26 and 7/30/26 with FREE UPS Shipping

      Delivery Options
      Carrier Description Estimated Delivery
      FREE UPS Shipping 4-6 days

      7/27/26 - 7/30/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next (Valve&Actuator + 1-2)

      7/27/26 - 7/28/26

      UPS 2 bus. days 2 bus-days Same day/next (Valve&Actuator + 1-2)

      7/24/26 - 7/27/26

      UPS Next Day - 1 business Day Ships same day/next (Valve&Actuator + 1-2)

      7/23/26 - 7/24/26

      Carrier: FREE UPS Shipping

      Description: 4-6 days

      Estimated delivery:
      7/27/26 - 7/30/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/27/26 - 7/28/26

      Carrier: UPS 2 bus. days

      Description: 2 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/24/26 - 7/27/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/23/26 - 7/24/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Jomar A-766L L-Port Stainless Steel ANSI 150 Flange Ball Valve features:

        • AISI 316 Stainless Steel
        • ANSI 150 Flanged Direct Mount
        • Blow-out Proof Stem
        • Max Temp: 344˚F
        • 250 WOG
        • 100% Leak Tested
        • ASME/ANSI B16.5 Approved
        • Wetted Surfaces Contain Less than .25% Lead Content
        • Also Available in T port configuration Jomar A766T
        Summary Specifications (Please see attachment for full specs.)
        Size 1" 1 1/2" 2" 2 1/2" 3" 4"
        Model
        		 A766L-1 A766L-112 A766L-2 A766L-212 A766L-3 A766L-4
        PSI Seat Rating (WOG) 250 250 250 250 250 250
        Max Temperature 250° F 250° F 250° F 250° F 250° F 250° F
        Weight (lbs.) 2.2 2.6 3.9 4.2 4.8 6
        Valve Flow

        A valve flow must be specified when ordering a T-Port valve, please see image below for reference.

        Jomar A-766T and L Port Flow

        View Detailed Valve Specifications
        Jomar A-766L Detailed Specifications
        Jomar A-766T

      • Jomar Valve
        A-766L

        Data sheet

        Valve Type
        Ball Valve
        Valve Size
        1", 1.5, 1.25, 2", 2.5, 3", 4"
        Valve Temperature Range
        Up to 344°F (°C 173)
        Valve Body Material
        Stainless Steel ASTM 316
        Valve Body Style
        Wafer
        Valve Connection
        Class 150 Flanged
        Valve PSI
        200
        Valve Configuration
        3-way L Port
        Valve Operation
        Manual
