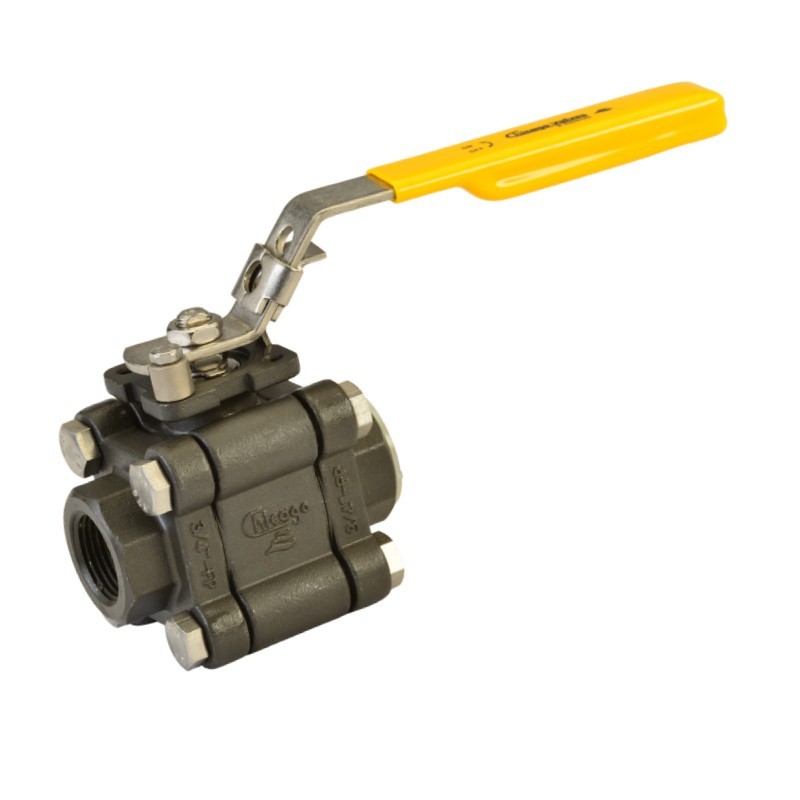

Chicago Valves HP79 Carbon Steel 3-Piece Full Port Ball Valve – Threaded SW, API 608 ISO 5211 Direct Mount - 1/4" to 2"
HP79-444TXS
The Chicago Valves Series HP79 is a high-pressure API 608 three-piece, 2-way full port ball valve designed for demanding industrial applications. Manufactured from rugged WCB ASTM A216 carbon steel, it features an elevated mounting pad for in-line stem packing adjustment without removing the actuator or handle. Available with DELRIN or PEEK seats and Threaded by SW (Socket Weld) connection.
The HP79 valve features a blowout-proof stem, reinforced stem packing, investment cast body construction, and an ISO direct mounting pad for actuator automation. An ISO direct mounting pad allows simple integration with actuators, making the HP79 an excellent solution for automated process control systems.
The HP79 delivers dependable quarter-turn shutoff with pressure ratings up to 3200 PSI and temperatures from -50°F to 600°F (-46° to 316° C)
Available in sizes from 1/4" to 2".
$150.39
$211.81
Save 29%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series HP79 High pressure Carbon Steel, API 608, 2-way, Threaded SW ends ball valve specifications:
Valve Specification
- Body: WCB Carbon Steel – ASTM A216 WCB
- End Cap Material: ASTM A216 WCB carbon steel
- Center Section: Investment cast carbon steel
- Stem Material: 316 stainless steel
- Ball Material: 316 stainless steel
- Gland Nut Material: 300 Stainless steel
- Locking Handle Material: Steel with protective coating
- Body seal: TFM
- Outer body seal: TFM Graphite ®
- High Cycle Stem Packing
- Heavy Duty Stem design
- Fully Encapsulated dual body seal
- Integral Direct Mounting Pad ISO 5211
- Blowout-proof stem
- Adjustable stem packing
- High cycle life
- Lockable Handle
- Made in Thailand, assembled and tested in USA.
- Also available in 316 Stainless Steel
Maintenance-Friendly Design
- The HP79’s heavy-duty 3-piece construction allows for easier inline maintenance, seat replacement, and valve servicing without removing the complete valve from the piping system, helping reduce downtime in demanding industrial applications.
Options
- The Series 79 is also available in FNPT or SW and Stainless steel.
- Stem packing: Choice between Graphite (STD) and XN Carbon Filled TFM® (Is a proprietary, high-performance soft seat material designated by Chicago Valves for severe industrial applications. It is a composite material made by blending second-generation modified PTFE (TFM) with a reinforcing carbon-graphite filler. Bridges the performance gap between standard soft plastics like pure Teflon and high-cost rigid materials like PEEK or metal seats)
- The Series 79 Offers Delrin or PEEK seats
Summary Specifications of Chicago Valves Series HD79
Valve Size 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" CV (GPM) 13 15 40 70 120 240 400 ISO 5211 F03 F04 F04 F07 F07 F07 F07 F07 Torque (LBF-In) Delrin 60-91 60-91 91-140 140-225 180-320 275-505 390-810 650-1400 Torque (LBF-In) PEEK 79-110 79-110 120-180 140-240 190-390 280-610 400-1000 600-2000 Pressure PSI (approx) 3200 3200 3200 3000 2500 2100 2000 2000 Weight (lbs) 1.9 1.9 2.4 3.5 6.4 8.9 12.8 18.75 - HP79-444TXS
Data sheet
- Valve Type
- Ball Valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- -50° to 600°F (°C -46 to 316)
- Valve Body Material
- Carbon Steel
- Valve Body Style
- Full Port
- Valve Connection
- Threaded by SW
- Valve PSI
- 3200
- Valve Configuration
- 2-Way
- Valve Seat
- DELRIN PEEK
- Warranty
- 1 year
- Valve Standards
- API 608 ISO 5211
The Chicago Valves Series HP79 is a high-pressure API 608 three-piece, 2-way full port ball valve designed for demanding industrial applications. Manufactured from rugged WCB ASTM A216 carbon steel, it features an elevated mounting pad for in-line stem packing adjustment without removing the actuator or handle. Available with DELRIN or PEEK seats and Threaded by SW (Socket Weld) connection.
The HP79 valve features a blowout-proof stem, reinforced stem packing, investment cast body construction, and an ISO direct mounting pad for actuator automation. An ISO direct mounting pad allows simple integration with actuators, making the HP79 an excellent solution for automated process control systems.
The HP79 delivers dependable quarter-turn shutoff with pressure ratings up to 3200 PSI and temperatures from -50°F to 600°F (-46° to 316° C)
Available in sizes from 1/4" to 2".
