Gould Solenoid valve KS-3T Major Rebuild Kit Teflon seat and 10-400 psi
KS-3TRK
      Gould Solenoid valve KS-3T Major Rebuild Kit Teflon seat and 10-400 psi
      Gould Solenoid valve KS-3T Major Rebuild Kit Teflon seat and 10-400 psi
      Gould solenoid Bronze valve KS-3T Major Rebuild Kit 10-400 psi Teflon

      The Gould KS-3T major Rebuilt kit is for the K Series solenoid valves, Teflon seat, 10-400 psi.

      Available in sizes ranging from 1/8" to 2" NPT threaded.

      Please note:  Typically ships out the same day but could take up to 1–2 days processing before shipping.

      Gould Solenoid Valves
      $291.92
      $328.00
      Save 11%
      Quantity :

      Free Shipping up to 5 lbs. Order before 10:30 on Tuesday and receive it between 7/27/26 and 7/30/26 with Free Shipping up to 5 lbs.

      Delivery Options
      Carrier Description Estimated Delivery
      Free Shipping up to 5 lbs. 5 to 6 days Transit

      7/27/26 - 7/30/26

      UPS Ground over 5 pounds 5 to 6 days Transit

      7/24/26 - 7/29/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next (Valve&Actuator + 1-2)

      7/24/26 - 7/27/26

      UPS 2 bus. days 2 bus-days Same day/next (Valve&Actuator + 1-2)

      7/23/26 - 7/24/26

      UPS Next Day - 1 business Day Ships same day/next (Valve&Actuator + 1-2)

      7/22/26 - 7/23/26

      Carrier: Free Shipping up to 5 lbs.

      Description: 5 to 6 days Transit

      Estimated delivery:
      7/27/26 - 7/30/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      7/24/26 - 7/29/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/24/26 - 7/27/26

      Carrier: UPS 2 bus. days

      Description: 2 bus-days Same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/23/26 - 7/24/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day/next (Valve&Actuator + 1-2)

      Estimated delivery:
      7/22/26 - 7/23/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

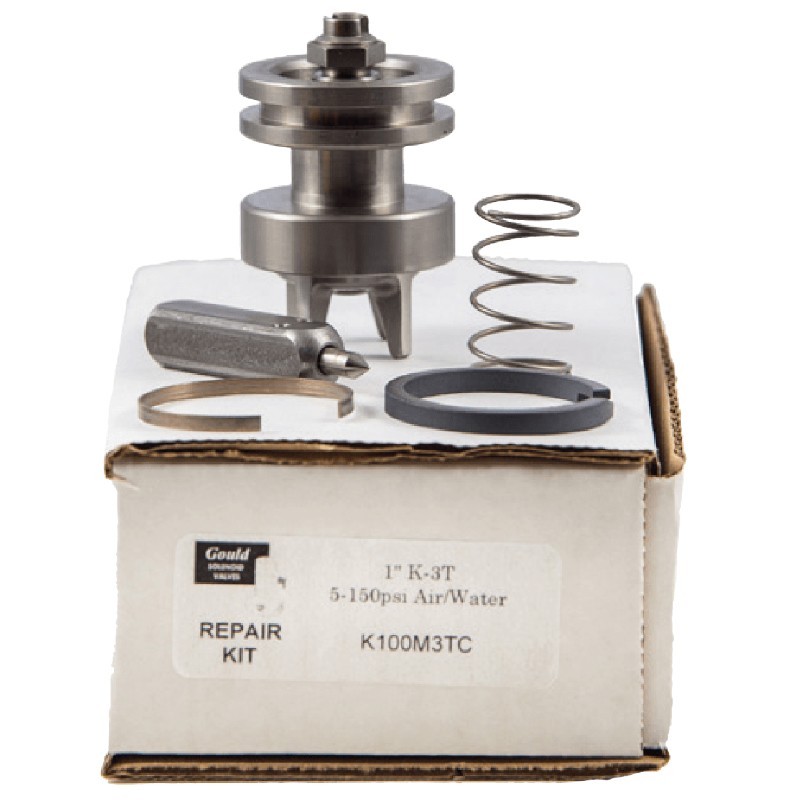

      • The Gould KS-3T Major Rebuild Kit replaces all internal components, including the piston, pilot assembly, spring, and seals, and can be installed without removing the valve from the line.

        Service Ratings
        • Pipe Sizes: 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1¼”, 1½”, 2” NPT
        • Media: Air, Inert Gases, Water, Aqueous Liquids and Light Oils (440SSU or 30SAE)
        • Pressure Range: 10–400 psi
        • Rated Fluid Temperature Range: –40°F to +300°F
        Summary Specifications of Gould solenoid valve KS-3T
        Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Orifice 3/8" 3/8" 1/2" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Cv Factor 1.1 2.1 3.2 3.9 7.5 9.9 23 25 45
        Repair kit Weight (lbs) 1 1 1 1 1 1 2 4 5

        Please Note: Gould Solenoid Valves are designed for Industrial–Commercial applications. Residential/Consumer applications will void the warranty.

      • Gould Solenoid Valves
        KS-3TRK

        Data sheet

        Valve Size
        .5, .25, .75, .125, .375 (3/8"), 1", 1.5, 1.25, 2"
        Valve Body Material
        CF8M Stainless Steel
        Valve Connection
        NPT
        Valve PSI
        10-400
        Valve Seat
        Teflon
        Warranty
        1 year
        Valve Media
        Air, Corrosive Fluids, Inert Gas, Oils (440SSU/30SAE), Water
        Solenoid Valve Temperature
        300°F
        Valve De-energized Position
        Normally Closed
        Gould Series
        K KR
