Gould Solenoid valve K3T-2 Major Rebuild Kit Viton 5-150 psi
K3T-2
      Gould Solenoid valve K3T-2 Major Rebuild Kit Viton 5-150 psi
      Gould Solenoid valve K3T-2 Major Rebuild Kit Viton 5-150 psi
      Gould solenoid Bronze valve K3T-2 Major Rebuild Kit

      The Gould K3T-2 major Rebuilt kit is for the K Series solenoid valves, Teflon seat.

      Available in sizes ranging from 1/8" to 2" NPT threaded.

      Please note:  Typically ships out the same day but could take up to 1–2 days processing before shipping.

      Gould Solenoid Valves
      $291.92
      $328.00
      Save 11%
      Quantity :

      Free Shipping up to 5 lbs. Order before 10:30 on Friday and receive it between 6/11/26 and 6/16/26 with Free Shipping up to 5 lbs.

      Delivery Options
      Carrier Description Estimated Delivery
      Free Shipping up to 5 lbs. 5 to 6 days Transit

      6/11/26 - 6/16/26

      UPS Ground over 5 pounds 5 to 6 days Transit

      6/10/26 - 6/15/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/10/26 - 6/11/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/9/26 - 6/10/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/8/26 - 6/9/26

      Carrier: Free Shipping up to 5 lbs.

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/11/26 - 6/16/26

      Carrier: UPS Ground over 5 pounds

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/10/26 - 6/15/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/10/26 - 6/11/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/9/26 - 6/10/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/8/26 - 6/9/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

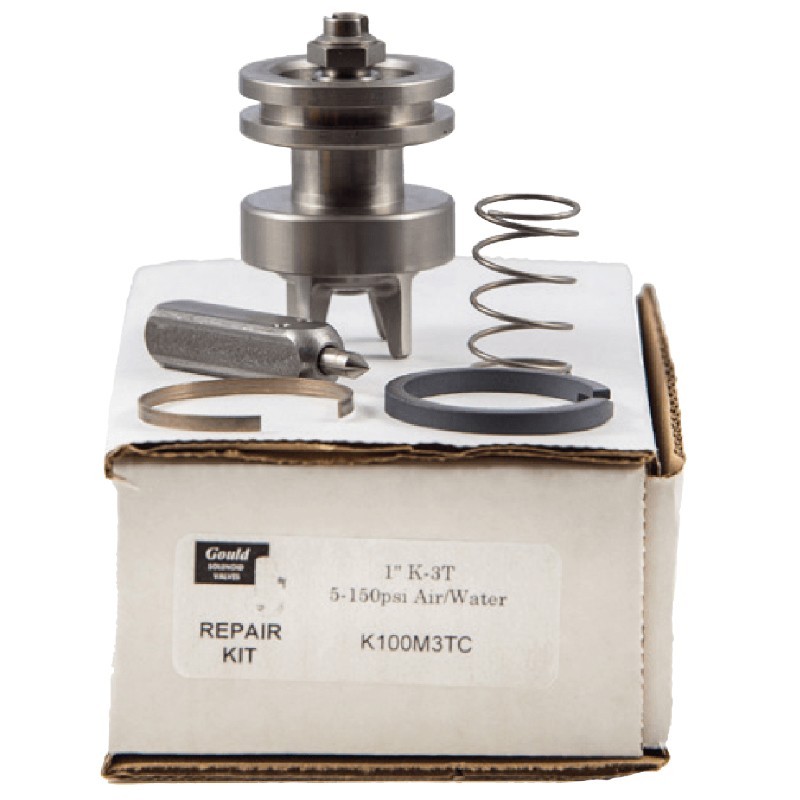

      • The Gould K3T-2 Major Rebuild Kit replaces all internal components, including the piston, pilot assembly, spring, and seals, and can be installed without removing the valve from the line.

        Service Ratings
        • Pipe Sizes: 1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1¼”, 1½”, 2” NPT
        • Media: Air, Inert Gases, Water and Aqueous Liquids, Corrosive Fluids and oils (440SSU or 30SAE)
        • Pressure Range: 5–150 psi
        • Rated Fluid Temperature Range: –40°F to +300°F
        Summary Specifications of Gould solenoid valve K-3T-2
        Size 1/8" 1/4" 3/8" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Orifice 3/8" 3/8" 1/2" 1/2" 3/4" 1" 1 1/4" 1 1/2" 2"
        Cv Factor 1.1 2.1 3.2 3.9 7.5 9.9 23 25 45
        Repair kit Weight (lbs) 1 1 1 1 1 1 2 4 5

        Please Note: Gould Solenoid Valves are designed for Industrial–Commercial applications. Residential/Consumer applications will void the warranty.

      • Gould Solenoid Valves
        K3T-2

        Data sheet

        Valve Size
        .5 (1/2") .25 (1/4") .75 ( 3/4") .125 (1/8") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Body Material
        CF8M Stainless Steel
        Valve Connection
        NPT
        Valve PSI
        5-150
        Valve Seat
        Teflon
        Warranty
        1 year
        Valve Media
        Air Corrosive Fluids Inert Gas Oils (440SSU/30SAE) Water
        Solenoid Valve Temperature
        300°F
        Valve De-energized Position
        Normally Closed
        Gould Series
        K KR
