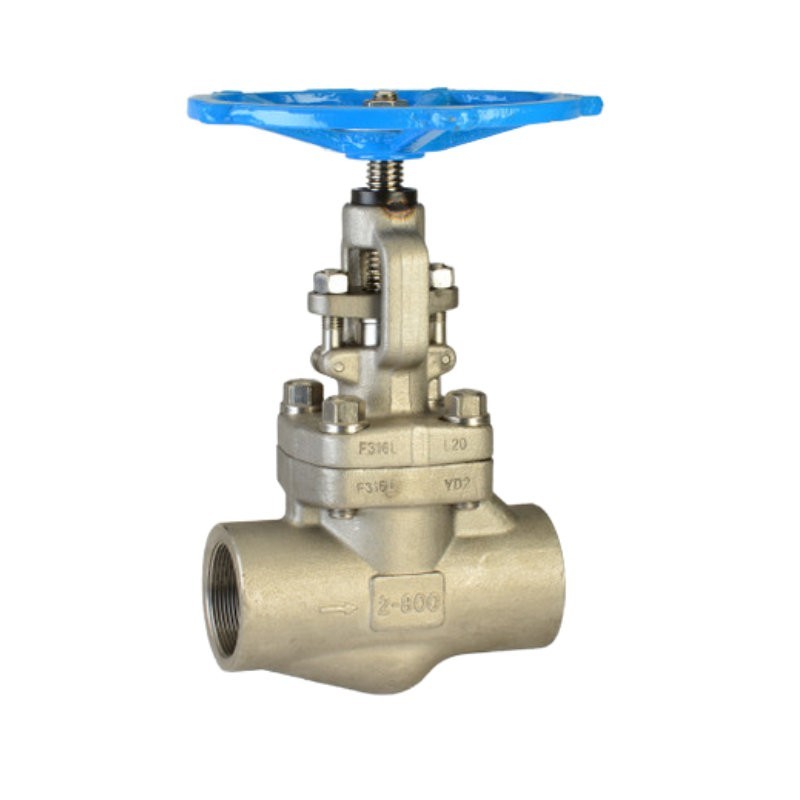

Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2"
386SW
      Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2"
      Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2"
      Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2"
      Chicago Valves 386 Stainless Steel Globe Valve SW, 1/4"-2"
      Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2" Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, SW ends 1/4"-2"

      The Chicago Valves Series 386 is a severe-service Class 800 forged 316 stainless steel globe valve featuring a bolted bonnet and rising stem, designed for high-pressure and high-temperature throttling applications.

      Built to API 602 and ASME B16.34 standards, it is constructed from highly corrosion-resistant ASTM A182 F316L forged 316 stainless steel body and bonnet, 316 stainless steel seat, solid disc, and socket weld (SW) ends to ASME B16.11, fully tested to API 598 standards. Also available with threaded NPT ends.

      Available in sizes from 1/4" to 3".

      Chicago Valves
      $196.89
      $312.53
      Save 37%
      Quantity :

      UPS Ground Order before 12:00 on Friday and receive it between 6/18/26 and 6/23/26 with UPS Ground

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground 5 to 6 days Transit

      6/18/26 - 6/23/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/17/26 - 6/18/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/16/26 - 6/17/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/15/26 - 6/16/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 65 pounds

      6/19/26 - 6/23/26

      LTL Freight over 65 pounds 5-9 Bus. Days

      6/18/26 - 6/25/26

      Carrier: UPS Ground

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/18/26 - 6/23/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/17/26 - 6/18/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/16/26 - 6/17/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/15/26 - 6/16/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 65 pounds

      Estimated delivery:
      6/19/26 - 6/23/26

      Carrier: LTL Freight over 65 pounds

      Description: 5-9 Bus. Days

      Estimated delivery:
      6/18/26 - 6/25/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Chicago Valves Series 386 is a compact, severe-service Class 800 forged 316 stainless steel globe valve. Conforming to API 602 and ASME B16.34, this valve is designed for demanding high-pressure commercial and industrial throttling services where dependable shutoff, extreme corrosion resistance, and long service life are required. The bolted bonnet and rising stem design ensure robust sealing and visible valve position indication during operation.

        The Series 386 is available from 1/4" to 3" with socket weld ends and conforms to NACE MR0175 for sour service.

        General Valve Specification
        • Valve Type: Forged 316 Stainless Steel Globe Valve
        • Pressure Class: Class 800
        • Pressure Rating: 1,600 PSI (Forged 316 Stainless Steel)
        • Maximum Temperature: 850°F / 454°C (Forged 316 Stainless Steel)
        • Body Material: Forged 316 Stainless Steel (A182 F316L)
        • Bonnet Material: Forged 316 Stainless Steel (A182 F316L)
        • Stem Material: 316 Stainless Steel (A182 F316L)
        • Disc Material: 316 Stainless Steel (A276 316L)
        • Gasket Material: 316L + Graphite spiral-wound
        • Packing Material: Graphite
        • Bonnet Bolts: Stainless Steel (A193 B8M)
        • Handwheel Material: Malleable Iron (A197)
        • Operation: Manual (Handwheel)
        • Body Style: Inline, Forged Steel, Bolted Bonnet (BB)
        • Stem Design: Rising Stem (OS&Y)
        • Flow Function: Throttle / Flow Regulation
        • End Connections: Socket Weld (ASME B16.11)
        • Optional End Connections: Threaded NPT (ASME B1.20.1)
        • Country of Origin: Vietnam
        Standards and Compliance
        • Design: API 602, ASME B16.34
        • Testing: API 598 (Shell & Leak testing)
        • Socket Weld Standard: ASME B16.11
        • Compliance: NACE MR0175 (Sour Gas Service)
        Summary Specifications of Chicago Valves Series 386 SW
        Size Part Number CV  Weight (lbs)
        1/4" 02386SW 0.7 4.85
        3/8" 03386SW 0.7 4.85
        1/2" 05386SW 1.3 4.63
        3/4" 07386SW 2.6 5.07
        1" 10386SW 6.4 8.16
        1 1/4" 12386SW 11.6 12.79
        1 1/2" 15386SW 17 16.53
        2" 20386SW 30.9 22.49

      • Chicago Valves
        386SW

        Data sheet

        Valve Type
        Globe valve
        Valve Size
        .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        850°F max (°C 454)
        Valve Body Material
        Stainless Steel 316L
        Valve Body Style
        Inline
        Valve Connection
        SW Ends
        Valve PSI
        1600 Max
        Valve Configuration
        2-Way
        Valve Seat
        PTFE
        Warranty
        1 year
        Valve Standards
        API 598 API 602 ASME B16.11 NACE MR0175
