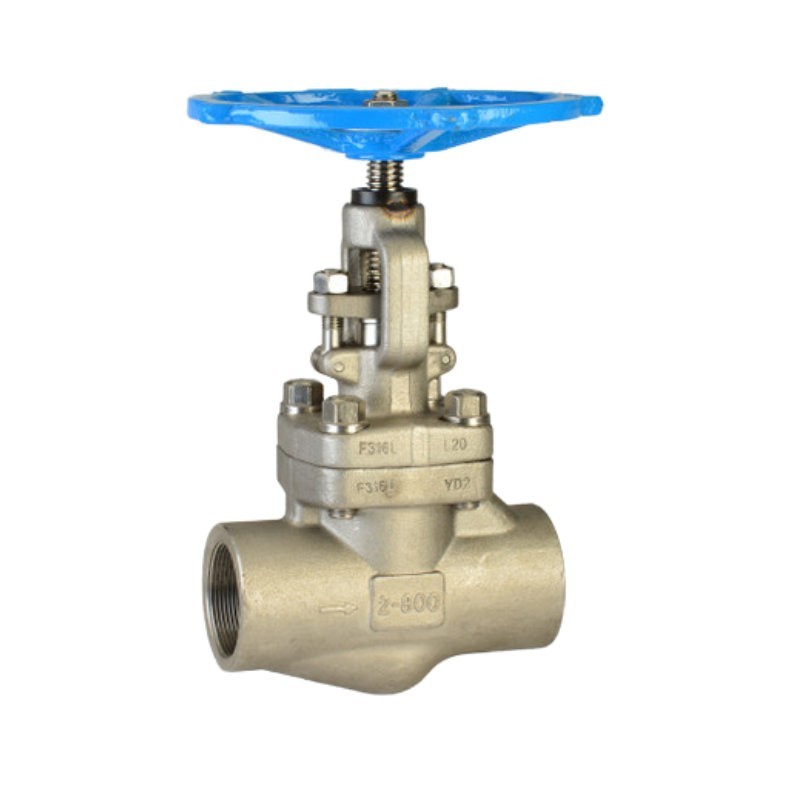

Chicago Valves series 386 Stainless Steel Class 800 Globe Valve, NPT 1/4"-2"
386TE
The Chicago Valves Series 386 is a severe-service Class 800 forged stainless steel globe valve featuring a bolted bonnet and rising stem, designed for high-pressure and high-temperature throttling applications.
Built to API 602 and ASME B16.34 standards, it is constructed from highly corrosion-resistant ASTM A182 F316L forged stainless steel and is compliant with NACE MR0175 for sour gas service. Features high-performance graphite packing, solid disc, and threaded NPT ends to ASME B1.20.1, fully tested to API 598 standards. Also available with socket weld ends.
Available in sizes from 1/4" to 2".
$196.89
$312.53
Save 37%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
The Chicago Valves Series 386 is a compact, severe-service Class 800 forged stainless steel globe valve. Conforming to API 602 and ASME B16.34, this valve is designed for demanding high-pressure commercial and industrial throttling services where dependable shutoff, extreme corrosion resistance, and long service life are required. The bolted bonnet and rising stem design ensure robust sealing and visible valve position indication during operation.
The Series 386 is available from 1/4" to 2" with threaded NPT ends and conforms to NACE MR0175 for sour service.
General Valve Specification
- Valve Type: Forged Stainless Steel Globe Valve
- Pressure Class: Class 800
- Pressure Rating: 1,600 PSI (Forged Stainless Steel)
- Maximum Temperature: 850°F / 454°C (Forged Stainless Steel)
- Body Material: Forged Stainless Steel (A182 F316L)
- Bonnet Material: Forged Stainless Steel (A182 F316L)
- Stem Material: Stainless Steel (A182 F316L)
- Disc Material: Stainless Steel (A276 316L)
- Gasket Material: 316L + Graphite spiral-wound
- Packing Material: Graphite
- Bonnet Bolts: Stainless Steel (A193 B8M)
- Handwheel Material: Malleable Iron (A197)
- Operation: Manual (Handwheel)
- Body Style: Inline, Forged Steel, Bolted Bonnet (BB)
- Stem Design: Rising Stem (OS&Y)
- Flow Function: Throttle / Flow Regulation
- End Connections: Threaded NPT (ASME B1.20.1)
Standards and Compliance
- Design: API 602, ASME B16.34
- Testing: API 598 (Shell & Leak testing)
- Thread Standard: ASME B1.20.1
- Compliance: NACE MR0175 (Sour Gas Service)
Summary Specifications of Chicago Valves Series 386
Size Part Number CV Weight (lbs) 1/4" 02386TE 0.7 4.85 3/8" 03386TE 0.7 4.85 1/2" 05386TE 1.3 4.63 3/4" 07386TE 2.6 5.07 1" 10386TE 6.4 8.16 1 1/4" 12386TE 11.6 12.79 1 1/2" 15386TE 17 16.53 2" 20386TE 30.9 22.49 - 386TE
Data sheet
- Valve Type
- Globe valve
- Valve Size
- .5 (1/2") .25 (1/4") .75 ( 3/4") .375 (3/8") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Temperature Range
- 850°F max (°C 454)
- Valve Body Material
- Stainless Steel 316L
- Valve Body Style
- Inline
- Valve Connection
- FNPT
- Valve PSI
- 1600 Max
- Valve Configuration
- 2-Way
- Valve Seat
- PTFE
- Warranty
- 1 year
- Valve Standards
- API 598 API 602 ASME B1.20.1 NACE MR0175
The Chicago Valves Series 386 is a severe-service Class 800 forged stainless steel globe valve featuring a bolted bonnet and rising stem, designed for high-pressure and high-temperature throttling applications.
Built to API 602 and ASME B16.34 standards, it is constructed from highly corrosion-resistant ASTM A182 F316L forged stainless steel and is compliant with NACE MR0175 for sour gas service. Features high-performance graphite packing, solid disc, and threaded NPT ends to ASME B1.20.1, fully tested to API 598 standards. Also available with socket weld ends.
Available in sizes from 1/4" to 2".
