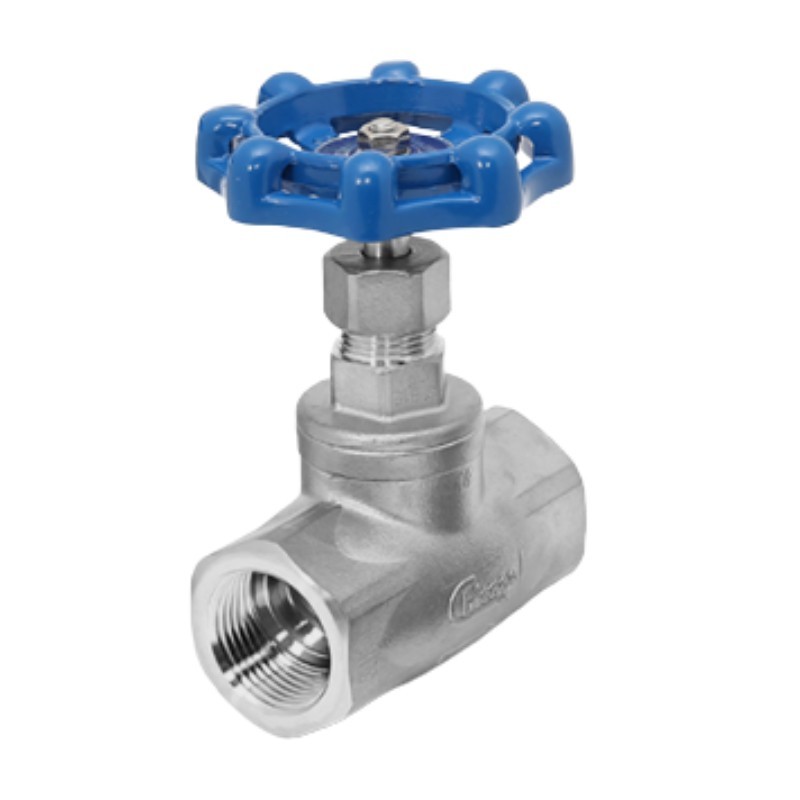

Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2"
3266TE
      Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2"
      Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2"
      Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2"
      Chicago Valves 326 NPT Stainless Steel Globe Valve, 1/2"-2"
      Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2" Chicago Valves series 326 Stainless Steel Globe Valve, Rising Stem 200 WOG NPT 1/2"-2"

      The Chicago Valves Series 326 is an industrial-grade 200 WOG 316 stainless steel globe valve featuring a screwed bonnet, rising stem, and conical seat design, engineered for reliable high-pressure fluid throttling and regulation.

      Built to ASME B16.34 standards, it is constructed from durable cast 316 stainless steel and features a solid disc and metal-to-metal (316 SS) conical seat. It is manufactured with threaded NPT ends to ASME B1.20.1, fully tested to API 598 standards. Also available with socket weld (SW) ends.

      Available in sizes from 1/2" to 2".

      Chicago Valves
      $66.25
      $103.52
      Save 36%
      Quantity :

      UPS Ground Order before 12:00 on Wednesday and receive it between 6/23/26 and 6/26/26 with UPS Ground

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground 5 to 6 days Transit

      6/23/26 - 6/26/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/22/26 - 6/23/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/19/26 - 6/22/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/18/26 - 6/19/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 65 pounds

      6/24/26 - 6/26/26

      LTL Freight over 65 pounds 5-9 Bus. Days

      6/23/26 - 6/30/26

      Carrier: UPS Ground

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/23/26 - 6/26/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/22/26 - 6/23/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/19/26 - 6/22/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/18/26 - 6/19/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 65 pounds

      Estimated delivery:
      6/24/26 - 6/26/26

      Carrier: LTL Freight over 65 pounds

      Description: 5-9 Bus. Days

      Estimated delivery:
      6/23/26 - 6/30/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Chicago Valves Series 326 is an industrial-grade 200 WOG 316 stainless steel globe valve. Conforming to ASME B16.34, this valve is designed for reliable commercial and industrial throttling services where dependable shutoff, extreme corrosion resistance, and long service life are required. The screwed bonnet and rising stem design ensure robust sealing and visible valve position indication during operation.

        The Series 326 is available from 1/2" to 2" with threaded NPT ends.

        General Valve Specification
        • Valve Type: 316 Stainless Steel Globe Valve
        • Pressure Class: 200 WOG (Cold Working Pressure)
        • Pressure Rating: 200 WOG (316 Stainless Steel)
        • Maximum Temperature: 350°F / 177°C
        • Body Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Bonnet Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Seat Material: Metal-to-Metal (Integral 316 Stainless Steel / CF8M)
        • Stem Material: 316 Stainless Steel
        • Gasket/Seal Material: PTFE
        • Disc/Wedge Design: Conical Seat Design
        • Disc Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Operation: Manual
        • Body Style: Inline, Cast Stainless Steel, Screwed Bonnet
        • Stem Design: Rising Stem
        • Flow Function: Throttle / Flow Regulation
        • End Connections: Threaded NPT (ASME B1.20.1)
        • Optional End Connections: Socket Weld (SW) (ASME B16.11)
        • Country of Origin: Vietnam
        Standards and Compliance
        • Design: ASME B16.34
        • Testing: API 598 (Shell & Leak testing)
        • Thread Standard: ASME B1.20.1
        • Socket Weld Standard: ASME B16.11
        Summary Specifications of Chicago Valves Series 326 NPT
        Size Part Number CV  Weight (lbs)
        1/2" 3266TE005 3.8 0.99
        3/4" 3266TE006 7 1.46
        1" 3266TE010 11 1.87
        1 1/4" 3266TE012 21 2.65
        1 1/2" 3266TE015 29 3.97
        2" 3266TE020 50 5.58

      • Chicago Valves
        3266TE

        Data sheet

        Valve Type
        Globe valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
        Valve Temperature Range
        350°F Max (°C 76)
        Valve Body Material
        Stainless Steel 316L
        Valve Body Style
        Inline
        Valve Connection
        FNPT
        Valve PSI
        200
        Valve Configuration
        2-Way
        Valve Seat
        PTFE
        Warranty
        1 year
        Valve Standards
        ASME B1.20.1 ASME B16.34
