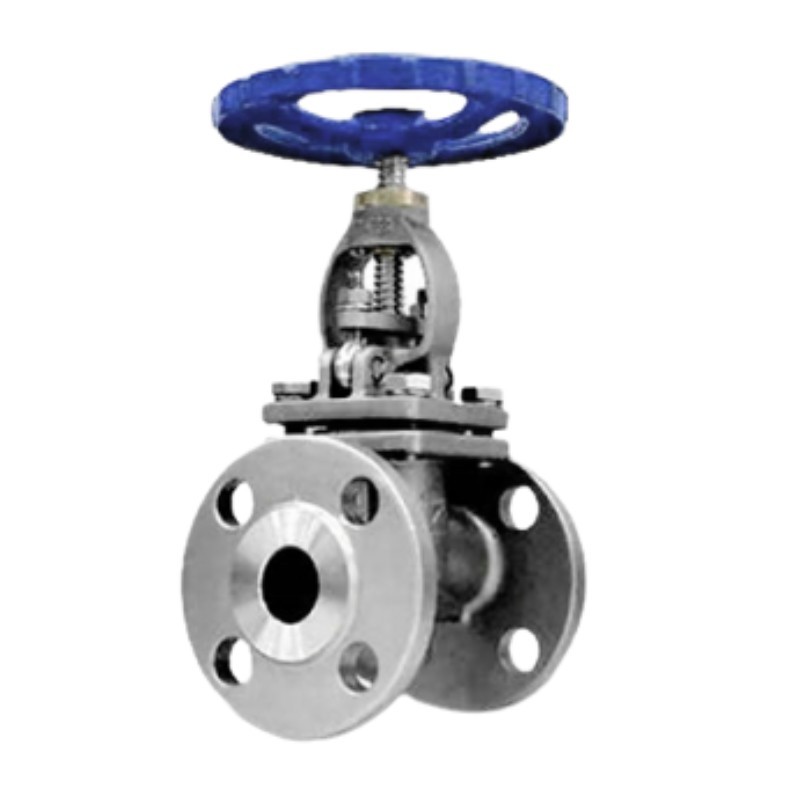

Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6"
31631
      Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6"
      Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6"
      Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6"
      Chicago Valves 316 Class 300 RF Globe Valve, 1/2"-6"
      Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6" Chicago Valves series 316 Flanged Globe valve Stainless steel Class 300, API 600 OS & Y 1/2"- 6"

      The Chicago Valves Series 316 is a severe-service Class 300 316 stainless steel globe valve featuring a bolted bonnet, rising stem, and Outside Screw and Yoke (OS&Y) design, engineered for high-pressure, highly corrosive flow regulation.

      Built to API 603 and ASME B16.34 standards, it is constructed from durable cast 316 stainless steel and is compliant with NACE MR0175 for sour gas environments. Features high-performance PTFE packing, solid 316 SS disc, metal-to-metal (316 SS) seat, and Class 300 flanged Raised Face (RF) ends to ASME B16.5, fully tested to API 598 standards. Also available with Class 150 flanged Raised Face (RF) ends.

      Available in sizes from 1/2" to 6".

      Chicago Valves
      $705.14
      $1,137.32
      Save 38%
      Quantity :

      UPS Ground Order before 12:00 on Wednesday and receive it between 6/23/26 and 6/26/26 with UPS Ground

      Delivery Options
      Carrier Description Estimated Delivery
      UPS Ground 5 to 6 days Transit

      6/23/26 - 6/26/26

      UPS 3 bus. days Ships same or next day 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      6/22/26 - 6/23/26

      UPS 2 bus. days Ships same day 2 bus-days, leaves WH same day if Order up to 10:30 EST

      6/19/26 - 6/22/26

      UPS Next Day - 1 business Day Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      6/18/26 - 6/19/26

      Free Shipping Over $2700.00 Standard Shipping or LTL geater 65 pounds

      6/24/26 - 6/26/26

      LTL Freight over 65 pounds 5-9 Bus. Days

      6/23/26 - 6/30/26

      Carrier: UPS Ground

      Description: 5 to 6 days Transit

      Estimated delivery:
      6/23/26 - 6/26/26

      Carrier: UPS 3 bus. days Ships same or next day

      Description: 3 bus-days Same day/next Order before 10:30 EST (Valve combo + 2)

      Estimated delivery:
      6/22/26 - 6/23/26

      Carrier: UPS 2 bus. days Ships same day

      Description: 2 bus-days, leaves WH same day if Order up to 10:30 EST

      Estimated delivery:
      6/19/26 - 6/22/26

      Carrier: UPS Next Day - 1 business Day

      Description: Ships same day except valve/act combo + 2 (Order before 10:30 EST)

      Estimated delivery:
      6/18/26 - 6/19/26

      Carrier: Free Shipping Over $2700.00

      Description: Standard Shipping or LTL geater 65 pounds

      Estimated delivery:
      6/24/26 - 6/26/26

      Carrier: LTL Freight over 65 pounds

      Description: 5-9 Bus. Days

      Estimated delivery:
      6/23/26 - 6/30/26

      X
      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • The Chicago Valves Series 316 is a cast 316 stainless steel globe valve designed for severe-service applications. Conforming to API 603 and ASME B16.34, this valve is designed for demanding high-pressure commercial and industrial throttling services where dependable shutoff, extreme corrosion resistance, and long service life are required. The bolted bonnet and rising stem design ensure robust sealing and visible valve position indication during operation.

        The Series 316 is available from 1/2" to 6" with Class 300 flanged Raised Face (RF) ends and conforms to NACE MR0175 for sour service.

        General Valve Specification
        • Valve Type: Cast 316 Stainless Steel Globe Valve
        • Pressure Class: Class 300
        • Pressure Rating: 720 PSI (316 Stainless Steel)
        • Maximum Temperature: 400°F / 204°C
        • Body Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Bonnet Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Seat Material: Metal-to-Metal (Integral 316 Stainless Steel / CF8M)
        • Stem Material: 316 Stainless Steel
        • Stem Bushing Material: PTFE
        • Disc Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Disc Cover Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Gland Material: 316 Stainless Steel (ASTM A351 CF8M)
        • Packing Material: PTFE
        • Handwheel Material: Ductile Iron (FCD400)
        • Operation: Manual (Handwheel)
        • Body Style: Inline, Cast Stainless Steel, Bolted Bonnet (BB)
        • Stem Design: Rising Stem (OS&Y)
        • Flow Function: Throttle / Flow Regulation
        • End Connections: Class 300 Flanged Raised Face (RF) (ASME B16.5)
        • Optional End Connections: Class 150 Flanged Raised Face (RF) (ASME B16.5)
        • Country of Origin: China
        Standards and Compliance
        • Design: API 603, ASME B16.34
        • Testing: API 598 (Shell & Leak testing)
        • Face-to-Face Dimensions: ASME B16.10
        • Flange Standard: ASME B16.5
        • Compliance: NACE MR0175 (Sour Gas Service)
        Summary Specifications of Chicago Valves Series 316 Class 300
        Size Part Number CV  Weight (lbs)
        1/2" 31631005 10 10.69
        3/4" 31631006 15 13.43
        1" 31631010 20 15.26
        1 1/2" 31631015 40 34.50
        2" 31631020 55 48.06
        2 1/2" 31631025 100 63.65
        3" 31631030 125 81.50
        4" 31631040 200 124.94
        6" 31631060 450 242.07

      • Chicago Valves
        31631

        Data sheet

        Valve Type
        Globe valve
        Valve Size
        .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 2" 2.5 (2 1/2") 3" 4" 6"
        Valve Temperature Range
        800°F max (°C 427)
        Valve Body Material
        ASTM A351 CF8M
        Valve Body Style
        Inline
        Valve Connection
        Class 300 Flanged
        Valve PSI
        720
        Valve Configuration
        2-Way
        Valve Seat
        Metal to Metal
        Warranty
        1 year
        Valve Standards
        API 598 API 603 ASME B16.5 ASME B16.10 ASME B16.34
