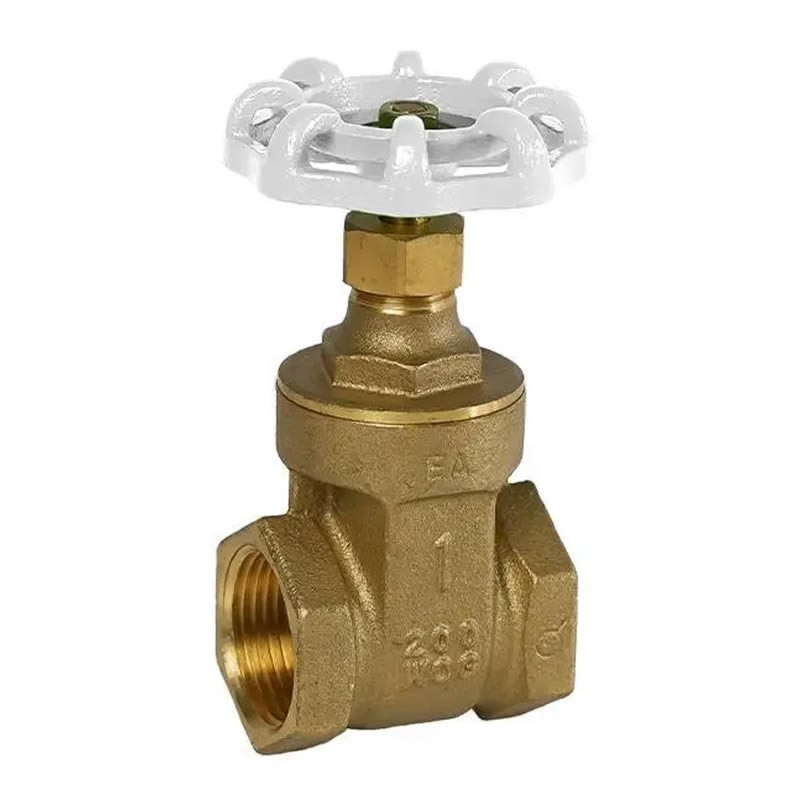

Jomar T-301G Lead Free Brass Gate Valve Non-Rising Stem Solid Wedge Threaded Connection 200 WOG
T-301G
The Jomar T-301G Lead Free Bronze Gate Valve Hand wheel Operated features a Solid Wedge with Non-Rising Stem, with a pressure rating of 200 WOG, Dezincification Resistant bronze, Truesdail Certified NSF/ANSI/CAN 61 and NSF 372 with Threaded Connection.
Available in sizes 1/2" to 2".
$23.80
$28.00
Save 15%
Security - Rest assured. Our site is encrypted and we do not store any payment information
Returns -
Products are returnable if unused or defective. Need to call for an RMA authorization
Jomar T-301G Lead Free Bronze Gate Valve Hand wheel Operated features:
- Solid Wedge with non Rising Stem
- Handwheel Operated
- Dezincification Resistant
- Wetted surfaces contain less than .25% lead content
Pressure Rating
- 200 WOG
Certifications/Approvals
- Truesdail Certified NSF/ANSI/CAN 61 and 372
- ANSI B1.20.1
- MSS SP-139
- MSS SP-25
Summary Specifications (Please see attachment for full specs.)
Size 1/2" 3/4" 1" 1 1/4" 1 1/2" 2" Model 103-303G 103-304G 103-305G 103-306G 103-307G 103-308G Weight (lbs.) .6 1.1 1.2 1.8 2.25 3.6 View Detailed Valve Specifications
Jomar T-301G Specs. Jomar T-301G- T-301G
Data sheet
- Valve Type
- Gate Valve
- Valve Size
- .5 (1/2") .75 ( 3/4") 1" 1.5 (1 1/2") 1.25 (1 1/4") 2"
- Valve Body Material
- Brass - Lead Free
- Valve Body Style
- Full Port
- Valve Connection
- Threaded
- Valve PSI
- 200
- Valve Configuration
- 2-Way
- Valve Operation
- Handwheel Operated
No customer reviews for the moment.
The Jomar T-301G Lead Free Bronze Gate Valve Hand wheel Operated features a Solid Wedge with Non-Rising Stem, with a pressure rating of 200 WOG, Dezincification Resistant bronze, Truesdail Certified NSF/ANSI/CAN 61 and NSF 372 with Threaded Connection.
Available in sizes 1/2" to 2".
