Jomar F-361 Cast Iron Gate Valve with Rising Stem Solid Wedge Bolted Bonnet Outside Screw and Yoke OS&Y Class 125 Flange
F-361
Review (0)
      Jomar F-361 Cast Iron Gate Valve with Rising Stem Solid Wedge Bolted Bonnet Outside Screw and Yoke OS&Y Class 125 Flange
      Jomar F-361 Cast Iron Gate Valve with Rising Stem Solid Wedge Bolted Bonnet Outside Screw and Yoke OS&Y Class 125 Flange
      Jomar F-361 Cast Iron Gate Valve with Rising Stem Solid Wedge Bolted
      Move your mouse over image or click to enlarge

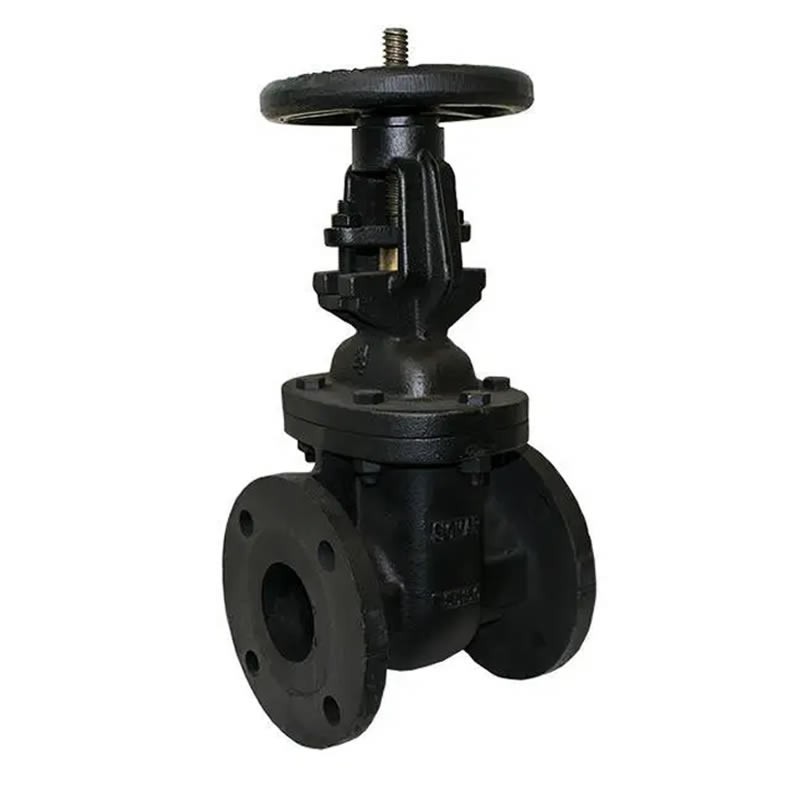

      The Jomar F-361 Cast Iron Hand wheel Operated Gate Valve features a Solid Wedge with Rising Stem, Lead Free Bronze Seat Ring with a pressure rating class 125, 125 PSI, Lead Free Bronze Seat Ring, Flange conforms to ASME B16.1 standard.

      Available in sizes 2 1/2" to 12".

      Jomar Valve
      $371.90
      $531.29
      Save 30%
      Quantity :

      FREE Shipping Order before 11:00 on Friday and receive it between 8/20/25 and 8/22/25 with FREE Shipping

      • Security -Security - Rest assured. Our site is encrypted and we do not store any payment information
      • Returns - Returns - Products are returnable if unused or defective. Need to call for an RMA authorization

      • Jomar F-361 Cast Iron Gate Valve with Rising Stem, Solid Wedge, Bolted Bonnet, OS&Y, Class 125 features:

        • Solid Wedge with Rising Stem
        • Handwheel Operated
        • Bonnet and Disc
        • Lead Free Bronze Seat Ring
        • Pressure Rating: Class 125
        • Conforms to MSS SP-70
        • Flange: ASME B16.1
        • Face-to-Face: ANSI/ASME B16.10
        • Lead Free Compliant
        Pressure/Temperature Rating
        • Class 125
        • Suitable for 125 PSI WSP
        Certifications/Approvals
        • Conforms to MSS SP-70
        • Flange: ASME B16.1
        • Face-to-Face: ANSI/ASME B16.10
        • Lead Free Compliant
        Summary Specifications (Please see attachment for full specs.)
        Size 2 1/2" 3" 4" 6" 8" 10" 12"
        Model 103-625 103-603 103-604 103-606 103-608 103-610 103-612
        Bolts 4 4 8 8 8 12 12
        Weight (lbs.) 48 59 105 194 272 438 608

        View Detailed Valve Specifications
        Jomar F-361 Specs.
        Jomar F-361

      • Jomar Valve
        F-361

        Data sheet

        Valve Type
        Gate Valve
        Valve Size
        2.5 (2 1/2") 3" 4" 6" 8" 10" 12"
        Valve Temperature Range
        353°F (178°C)
        Valve Body Material
        Cast Iron
        Valve Body Style
        Full Port
        Valve Connection
        Flange ANSI B16.10
        Valve PSI
        125
        Valve Configuration
        2-Way
        Valve Operation
        Handwheel Operated

      • No customer reviews for the moment.
